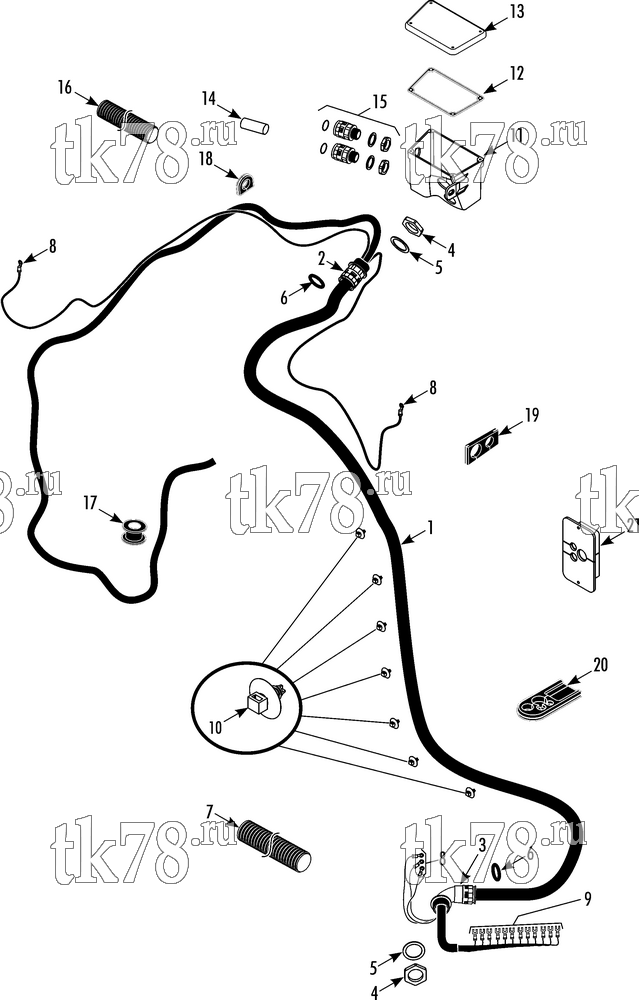

Установкa Thermo King PRECEDENT S-600 схема HARNESS - FANS & BLOWER – 261E0
Обновление от: 5/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-440 | HARNESS - condenser fans & evaporator blower | 1 | |
| 2 | 51-2247 | FITTING - straight | 1 | |
| 3 | 51-2249 | FITTING - elbow | 1 | |
| 4 | 51-2251 | NUT | 2 | |
| 5 | 51-2253 | WASHER - sealing | 2 | |
| 6 | 33-4942 | O-RING | 2 | |
| 7 | 42-729 | CONDUIT - harness | 1 | |
| 8 | 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 5 | |
| 9 | 42-525 | TERMINAL - fork (#8 blue, 16-14 ga) | 12 | |
| 10 | 51-1768 | MOUNT - cable tie | 7 | |
| 11 | 98-8853 | BOX - distribution | 1 | |
| 12 | 33-4927 | GASKET - cover | 1 | |
| 13 | 92-9406 | COVER - box | 1 | |
| 51-2229 | SCREW - cover | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 14 | 92-9852 | SLEEVING - heat resistance | 1 | |
| 15 | 51-2226 | FITTING - straight | 6 | |
| 51-2227 | NUT | 6 | ||
| 51-2228 | WASHER - sealing | 6 | ||
| 33-4926 | O-RING | 6 | ||
| 16 | 42-568 | CONDUIT - harness (25 ft) | A/R | |
| 17 | 33-4930 | GROMMET - evaporator harness | 1 | |
| 18 | 33-4928 | GROMMET - condenser harness (single harness) | 1 | |
| 19 | 33-4929 | GROMMET - condenser harness (double harness) | 1 | |
| 20 | 33-4931 | GROMMET - harness (double harness) | 1 | |
| 21 | 33-4932 | PLUG - bulkhead | 1 | |
| 51-321 | RIVET - plug | 2 |
