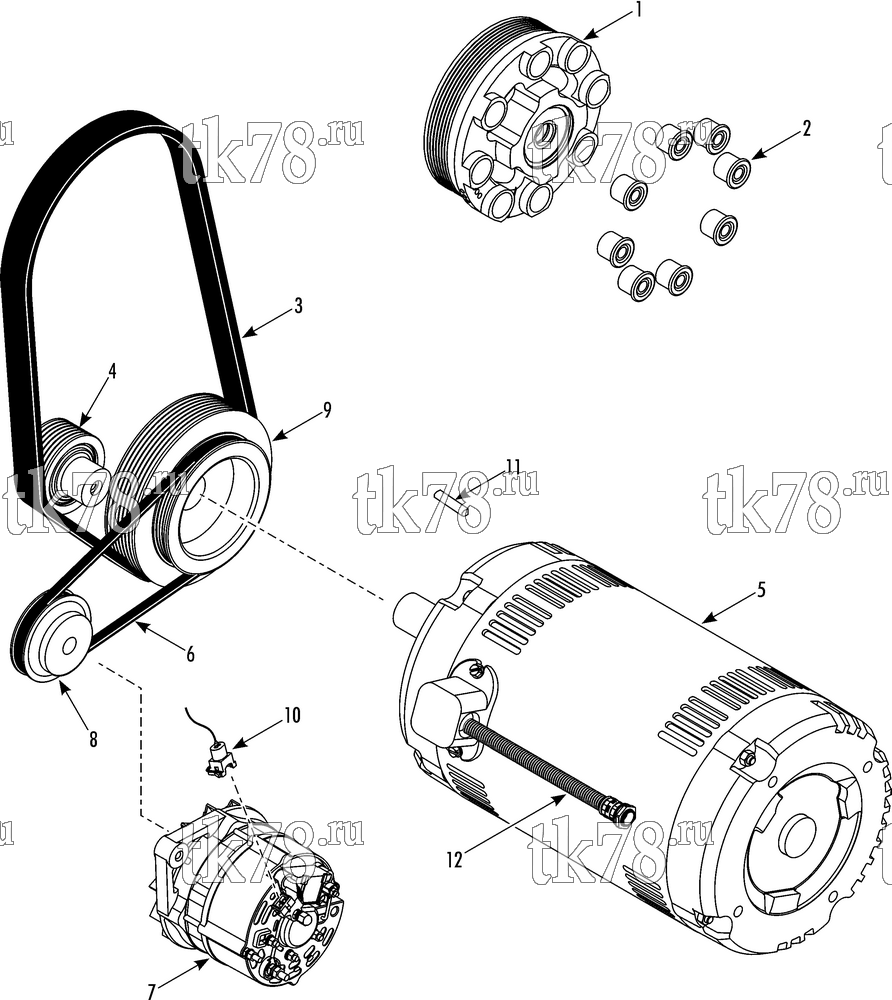

Установкa Thermo King PRECEDENT S-600 схема BELT GROUP (Smart Power, compressor end) – 261D0
Обновление от: 3/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 107-396 | CLUTCH | 1 | |
| 2 | 77-3043 | BUSHING (set of 8) | 1 | |
| 204-1114 | ADHESIVE - bushing | A/R | ||
| 51-220 | SCREW - clutch | 1 | ||
| 55-9300 | SPACER | 1 | ||
| 55-9024 | KEY | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 3 | 78-1845 | BELT - motor to clutch (12 hp) | 1 | |
| 78-1860 | BELT - motor to clutch (19 hp) | 1 | ||
| 4 | 78-1846 | TENSIONER (grooved) | 1 | |
| 5 | 104-810 | MOTOR - standby (12 hp, see 261D9) | 1 | |
| 104-814 | MOTOR - standby (19 hp, see 261D9) | 1 | ||
| 6 | 78-1833 | BELT - alternator (12 hp) | 1 | |
| 78-1863 | BELT - alternator (19 hp) | 1 | ||
| 7 | 45-2498 | ALTERNATOR - 37 amp | 1 | |
| 45-2257 | ALTERNATOR - 65 amp (see note) | 1 | ||
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 55-8751 | SCREW - pivot (M10) | 1 | ||
| 55-7005 | NUT (M10) | 1 | ||
| 55-7167 | SCREW - adjust (M8) | 1 | ||
| 55-2769 | WASHER (M8) | 1 | ||
| 8 | 77-3075 | PULLEY - alternator (units w/ 12 hp motor) | 1 | |
| 77-3085 | PULLEY - alternator (units w/ 19 hp motor) | 1 | ||
| 9 | 77-3074 | PULLEY - standby motor (12 hp, see 261D9) | 1 | |
| 77-3084 | PULLEY - standby motor (19 hp, see 261D9) | 1 | ||
| 10 | 42-854 | HARNESS - alternator | 1 | |
| 11 | 55-5944 | KEY | 1 |
