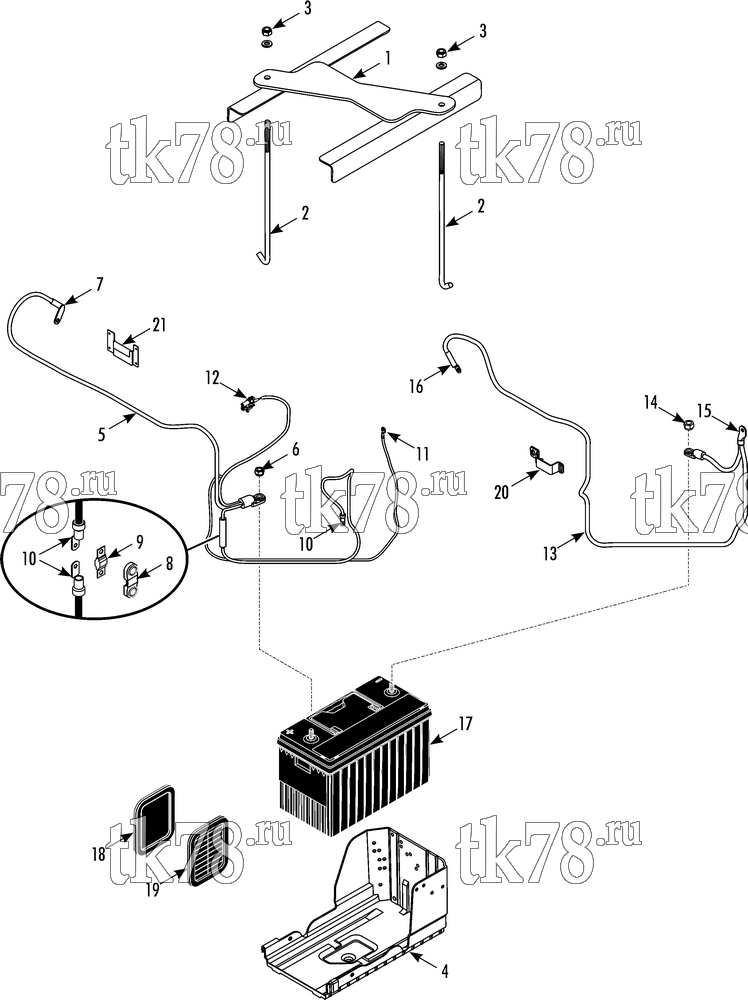

Установкa Thermo King PRECEDENT S-600 схема BATTERY GROUP, S-600 – 261C8
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9681 | HOLDDOWN - battery | 1 | |
| 2 | 92-9682 | ROD - holddown | 2 | |
| 3 | 55-7008 | NUT | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 4 | 93-241 | TRAY - battery | 1 | |
| 51-2403 | FASTENER - tray | 4 | ||
| 5 | 42-447 | HARNESS - battery (positive, threaded post) | 1 | |
| 42-835 | HARNESS - battery (positive, smooth post) | 1 | ||
| 6 | 55-4436 | NUT - battery | 1 | |
| 7 | 42-518 | TERMINAL - starter | 1 | |
| 8 | 41-8076 | FUSEHOLDER | 1 | |
| 9 | 41-8074 | FUSE - 70 amp | 1 | |
| 10 | 41-9539 | TERMINAL - ring (blue #8-10, 6 ga) | 3 | |
| 11 | 44-2793 | TERMINAL - ring (yellow 1/4) | 1 | |
| 12 | 44-9688 | CONNECTOR - female | 1 | |
| 44-8488 | LOCK - secondary | 1 | ||
| 13 | 42-448 | HARNESS - battery (negative, threaded post) | 1 | |
| 42-836 | HARNESS - battery (negative, smooth post) | 1 | ||
| 14 | 55-4436 | NUT - battery | 1 | |
| 15 | 42-797 | TERMINAL - lug (3/8 4/0 ga) | 1 | |
| 16 | 44-232 | TERMINAL - lug (3/8 1/0 ga) | 1 | |
| 17 | 203-550 | BATTERY - EON (1150 CCA, threaded) | 1 | |
| 203-551 | BATTERY - EON (1150 CCA, post) | 1 | ||
| 203-733 | BATTERY - Reliamax (925 CCA, threaded) | 1 | ||
| 203-732 | BATTERY - Reliamax (925 CCA, post) | 1 | ||
| 18 | 33-5059 | GROMMET - battery cable | 1 | |
| 19 | 33-5058 | GROMMET - battery cable | 1 | |
| 20 | 93-614 | BRACKET - harness | 1 | |
| 51-2199 | SCREW - bracket | 1 | ||
| 21 | 92-3994 | BRACKET - cable (starter) | 1 |
