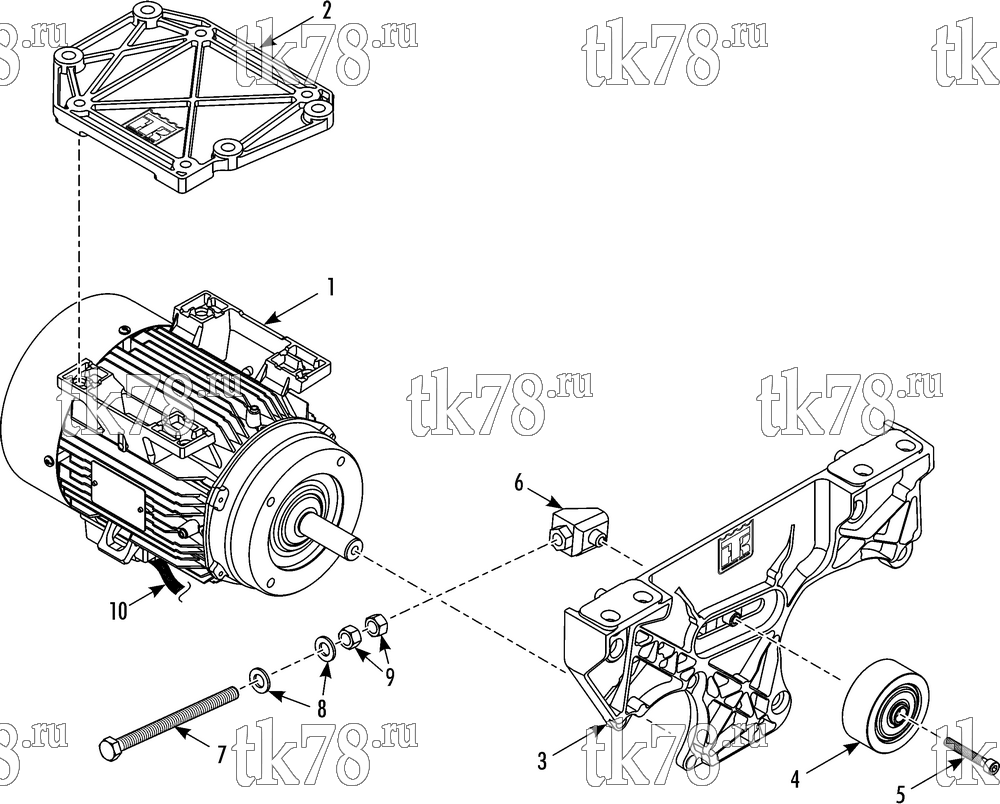

Установкa Thermo King PRECEDENT S-600 схема GENERATOR GROUP – 261C6
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-802 | GENERATOR | 1 | |
| 55-5424 | SCREW - generator (M8) | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 55-4680 | SCREW - generator (M10) | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 2 | 93-273 | PLATE - generator | 1 | |
| 55-4680 | SCREW - plate | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 3 | 98-9091 | BRACKET - generator | 1 | |
| 55-9726 | SCREW - bracket | 8 | ||
| 55-5914 | FLATWASHER | 8 | ||
| 4 | 78-1843 | TENSIONER - belt | 1 | |
| 5 | 51-2210 | SCREW - tensioner (M8) | 1 | |
| 6 | 92-9662 | SLIDER - tensioner | 1 | |
| 7 | 51-2384 | SCREW - slider (M12) | 1 | |
| 8 | 55-5914 | FLATWASHER | 2 | |
| 9 | 55-8471 | NUT | 2 | |
| 10 | 42-755 | HARNESS - generator (see 261F4) | 1 |
