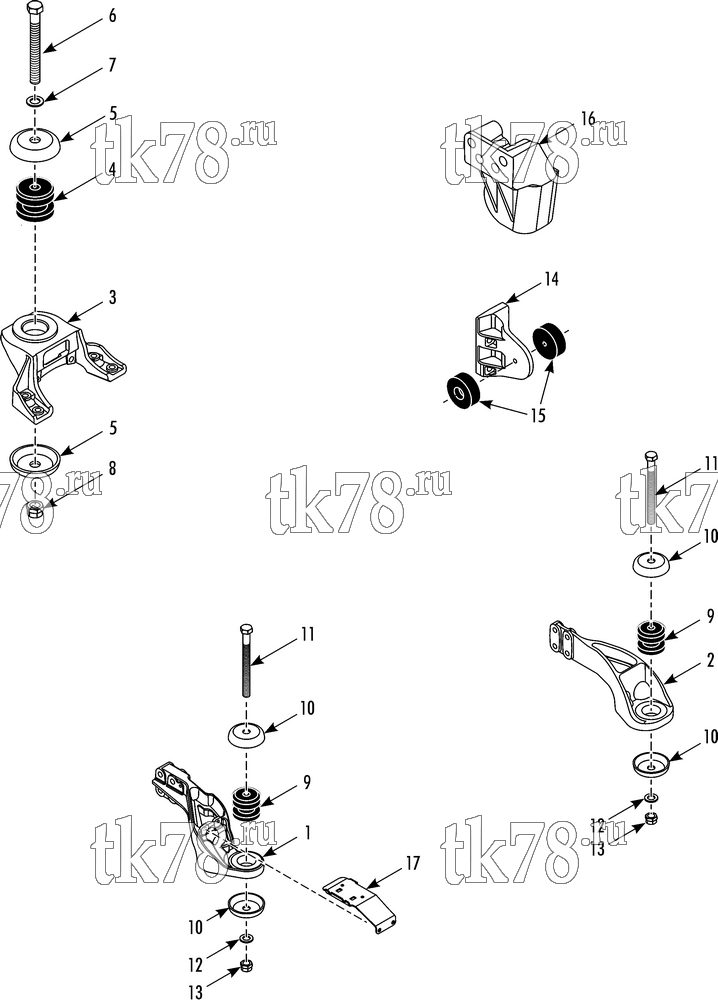

Установкa Thermo King PRECEDENT S-600 схема ENGINE MOUNT – 261C4
Обновление от: 9/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1291 | BRACKET - engine (front, roadside) | 1 | |
| 2 | 13-1292 | BRACKET - engine (rear, roadside) | 1 | |
| 55-5589 | SCREW - bracket (M10 X 50) | 3 | ||
| 55-7004 | SCREW - bracket (M10 X 30) | 4 | ||
| 55-7072 | FLATWASHER | 7 | ||
| 3 | 13-1209 | BRACKET - engine (rear) | 1 | |
| 55-5595 | SCREW - bracket (M12 X 50) | 2 | ||
| 55-6158 | SCREW - bracket (M12 X 40) | 4 | ||
| 55-7072 | FLATWASHER | 6 | ||
| 4 | 13-1210 | MOUNT - vibration (rear) | 1 | |
| 5 | 13-1211 | CUP - snubbing | 2 | |
| 6 | 51-2207 | SCREW - mount (M22 X 200) | 1 | |
| 7 | 51-2307 | FLATWASHER | 1 | |
| 8 | 51-2638 | NUT | 1 | |
| 9 | 13-1207 | MOUNT - vibration (front) | 2 | |
| 10 | 13-1208 | CUP - snubbing | 4 | |
| 11 | 51-2273 | SCREW - mount (M16 X 180) | 2 | |
| 12 | 51-152 | FLATWASHER | 2 | |
| 13 | 51-1004 | NUT | 2 | |
| 14 | 13-1213 | BLADE - snubber | 1 | |
| 108-2109 | SCREW - blade | 4 | ||
| 15 | 13-1214 | SNUBBER | 2 | |
| 55-7074 | SCREW - snubber | 1 | ||
| 55-7007 | NUT | 1 | ||
| 16 | 13-1212 | CAGE - snubber | 1 | |
| 55-7168 | SCREW - cage | 4 | ||
| 17 | 93-555 | BRACKET - harness | 1 | |
| 55-5955 | SCREW - bracket | 3 | ||
| 55-4638 | FLATWASHER | 3 |
