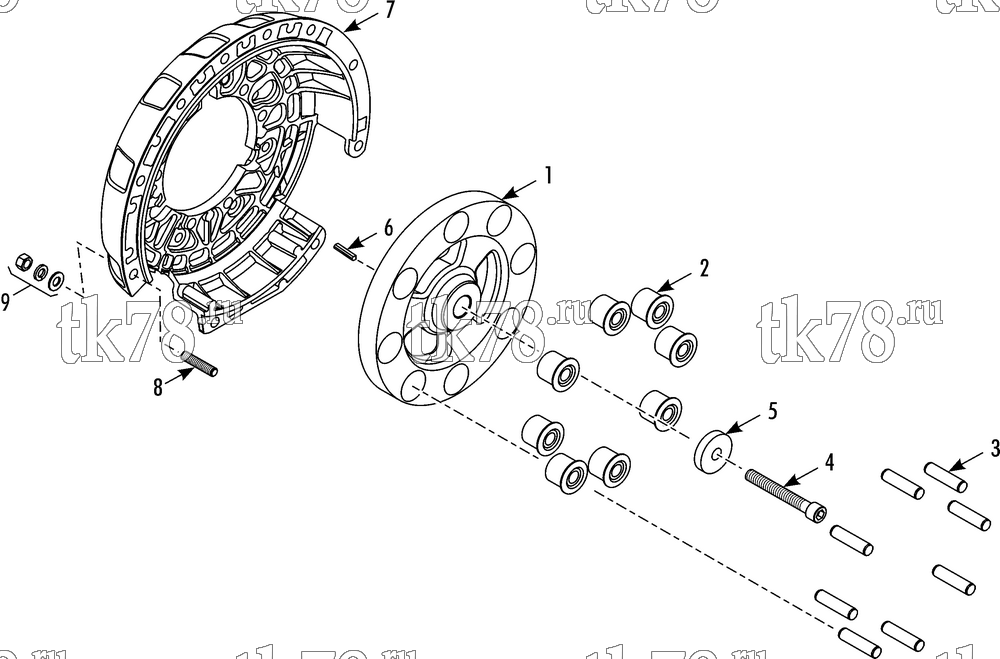

Установкa Thermo King PRECEDENT S-600 схема DRIVE GROUP – 261C3
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-3045 | COUPLER - compressor (inc bushings) | 1 | |
| 2 | 77-3044 | BUSHING - drive (set of 8) | 1 | |
| 204-1114 | ADHESIVE - bushing | 1 | ||
| 3 | 55-1123 | PIN - drive | 8 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 4 | 51-220 | SCREW - coupling | 1 | |
| 5 | 55-9300 | SPACER | 1 | |
| 6 | 55-9024 | KEY - compressor | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 7 | 12-975 | FLANGE - compressor | 1 | |
| 8 | 55-1525 | STUD - flange to engine | 10 | |
| 9 | 55-8318 | NUT | 10 | |
| 55-375 | LOCKWASHER | 10 | ||
| 55-402 | FLATWASHER | 10 |
