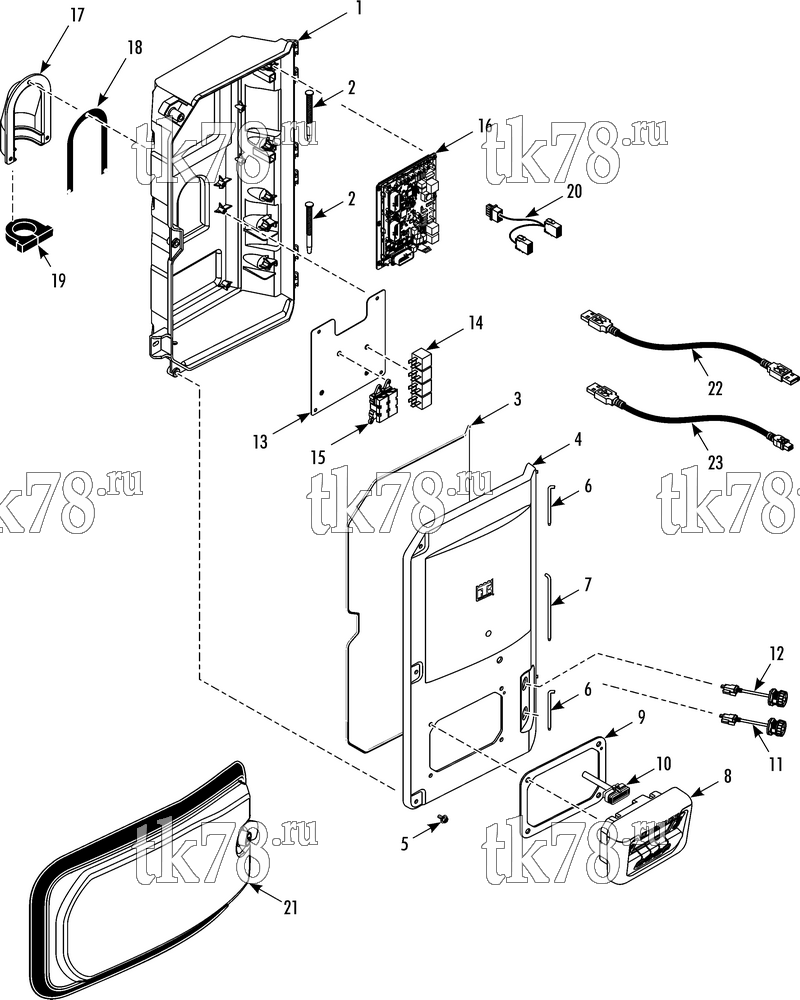

Установкa Thermo King PRECEDENT S-600 схема CONTROL BOX S-600 – 261C1
Обновление от: 7/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8848 | HOUSING - control box | 1 | |
| 2 | 51-2256 | PIN - hinge | 2 | |
| 3 | 33-4918 | GASKET - door | 1 | |
| 4 | 98-8847 | DOOR - control box | 1 | |
| 98-9238 | DOOR - control box (current units, only one USB hole) | 1 | ||
| 5 | 51-2199 | SCREW - door | 3 | |
| 55-8782 | WASHER - special | 3 | ||
| 6 | 51-2213 | PIN - door hinge (short) | 2 | |
| 7 | 51-2214 | PIN - door hinge (long) | 1 | |
| 8 | 45-2449 | CONTROLLER - HMI SR-4 | 1 | |
| 9 | 33-3628 | GASKET - HMI | 1 | |
| 51-2212 | SCREW - controller | 4 | ||
| 10 | 42-446 | HARNESS - HMI | 1 | |
| 11 | 42-434 | CABLE - USB (black) | 1 | |
| 12 | 42-435 | CABLE - USB (gray, early units only) | 1 | |
| 13 | 92-9668 | PLATE - relay | 1 | |
| 51-2304 | SCREW - plate | 4 | ||
| 14 | 41-893 | RELAY | 4 | |
| 15 | 42-571 | MODULE - fuse | 1 | |
| 41-8075 | FUSE - 30 amp | 1 | ||
| 41-9361 | FUSE - 40 amp | 1 | ||
| 51-2305 | SCREW - relay & fuse module | 4 | ||
| 16 | 45-2521 | BOARD - controller SR-4 | 1 | |
| 51-2304 | SCREW - board | 6 | ||
| 17 | 92-9530 | COVER - harness | 1 | |
| 51-2199 | SCREW - cover | 3 | ||
| 18 | 33-4919 | GASKET - cover | 1 | |
| 19 | 33-4920 | SEAL - harness | 1 | |
| 20 | 41-8187 | HARNESS - extension (CAN) | 1 | |
| 21 | 93-310 | DOOR - HMI (optional) | 1 | |
| 55-7407 | SCREW - door | 6 | ||
| 55-7033 | FLATWASHER | 12 | ||
| 55-7034 | NUT | 6 | ||
| 22 | 204-1973 | CABLE - USB to USB (12 ft) | 1 | |
| 23 | 204-2000 | CABLE - USB to mini USB (16 ft) | 1 |
