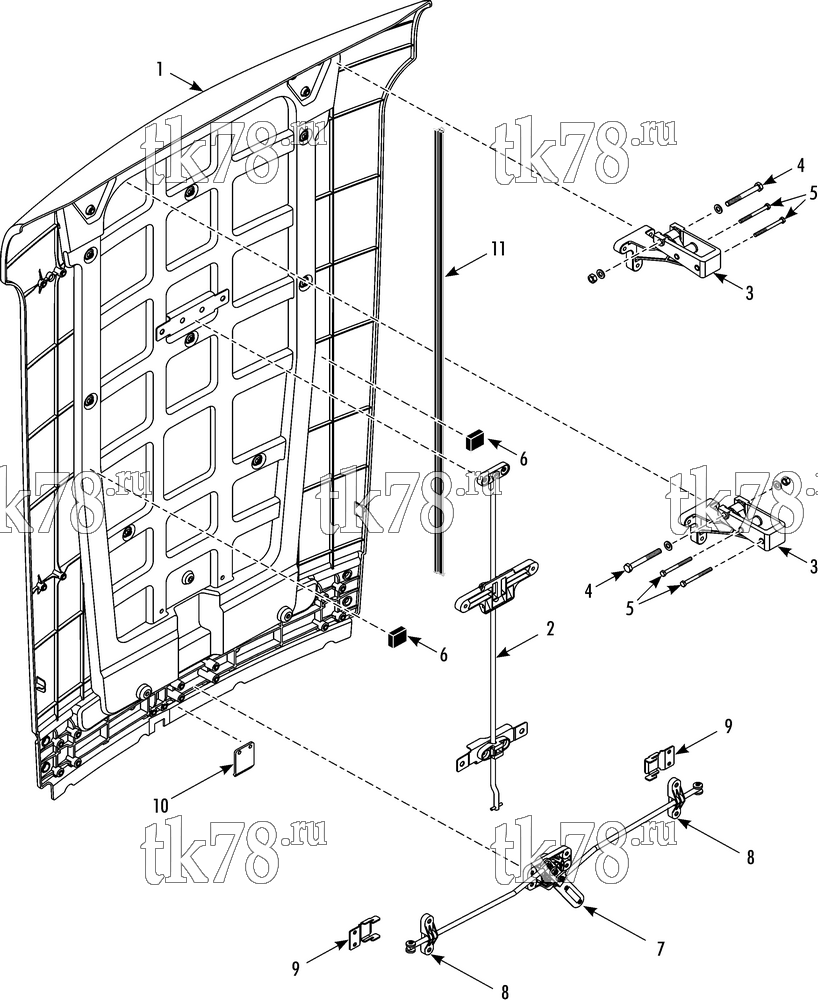

Установкa Thermo King PRECEDENT S-600 схема TOP DOOR – 261C0
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9116 | DOOR - top | 1 | |
| 93-855 | DOOR - top (w/ chrome center band) | 1 | ||
| 2 | 93-558 | ROD - prop | 1 | |
| 3 | 93-285 | HINGE - door (top) | 2 | |
| 51-2199 | SCREW - hinge to door | 6 | ||
| 4 | 55-6764 | SCREW - pivot (M8) | 2 | |
| 55-7069 | FLATWASHER | 4 | ||
| 55-7006 | NUT | 2 | ||
| 5 | 55-6209 | SCREW - hinge to frame (M6) | 4 | |
| 55-8893 | FLATWASHER | 8 | ||
| 55-7007 | NUT | 4 | ||
| 6 | 33-5151 | BUMPER - door | 2 | |
| 7 | 93-542 | LATCH - top door | 1 | |
| 8 | 93-543 | BRACKET - latch (latch rod) | 2 | |
| 9 | 93-544 | BRACKET - latch (mounts to frame) | 2 | |
| 51-2199 | SCREW - bracket | 8 | ||
| 10 | 93-545 | BRACKET - latch (front door, see 261D3) | 1 | |
| 51-2199 | SCREW - bracket | 2 | ||
| 11 | 33-5063 | GASKET - door seal (25 ft, cut to length) | A/R |
