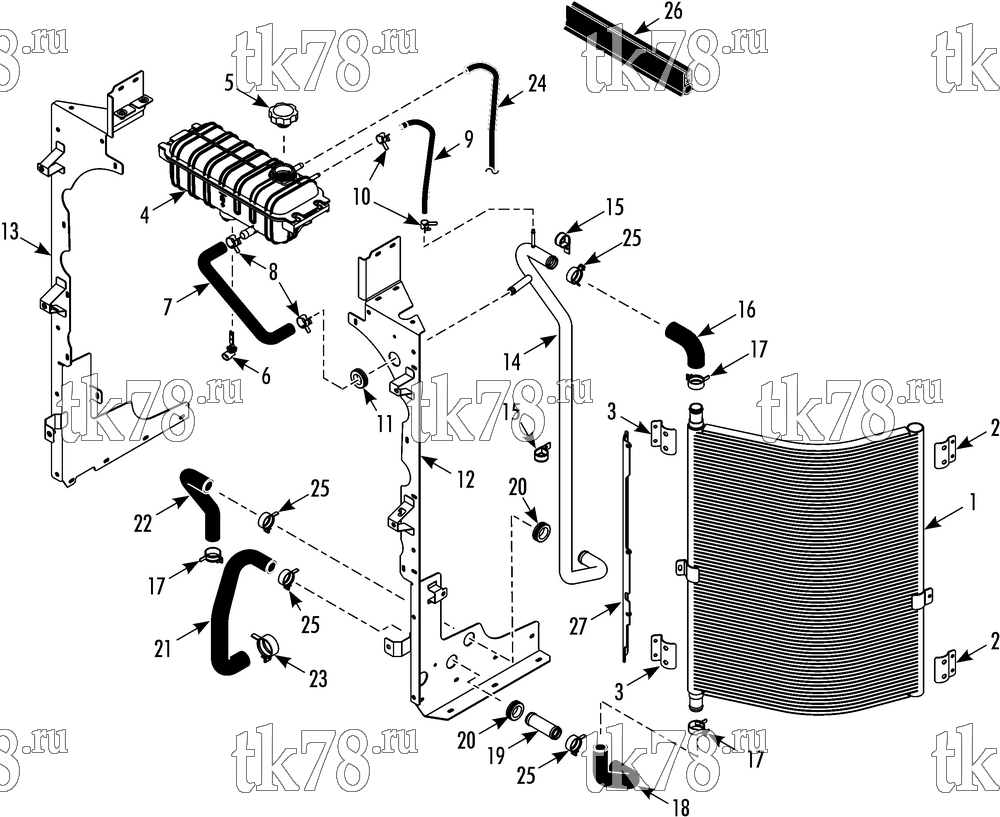

Установкa Thermo King PRECEDENT S-600 схема COOLING SYSTEM – 261B9
Обновление от: 6/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-976 | RADIATOR | 1 | |
| 2 | 92-9847 | BRACKET - radiator (outside) | 2 | |
| 3 | 92-9845 | BRACKET - radiator (center) | 2 | |
| 51-2199 | SCREW - bracket | 8 | ||
| 4 | 13-1165 | TANK - expansion | 1 | |
| 5 | 13-990 | CAP - expansion tank (15 psi) | 1 | |
|
10-13-990 | Крышка расширительного бачка, T-Series | 1 490 ₽ |
|
| 6 | 42-292 | SWITCH - coolant level | 1 | |
| 51-2198 | SCREW - tank | 4 | ||
| 7 | 13-1468 | HOSE - expansion tank (outlet) | 1 | |
| 8 | 13-1148 | CLAMP - hose (25 mm) | 2 | |
| 9 | 13-1469 | HOSE - expansion tank (bleed) | 1 | |
| 10 | 51-2302 | CLAMP - hose (16 mm) | 2 | |
| 11 | 33-1084 | GROMMET - hose | 1 | |
| 12 | 98-9013 | SUPPORT - coil (roadside, see 261B3) | 1 | |
| 13 | 98-9012 | SUPPORT - coil (curbside, see 261B3) | 1 | |
| 14 | 13-1199 | TUBE - radiator (inlet) | 1 | |
| 15 | 55-7504 | CLAMP - tube | 2 | |
| 51-2197 | SCREW - clamp | 2 | ||
| 16 | 13-1200 | HOSE - radiator (inlet) | 1 | |
| 17 | 51-1739 | CLAMP - hose (36 mm) | 3 | |
| 18 | 13-1198 | HOSE - radiator (outlet) | 1 | |
| 19 | 13-1201 | TUBE - radiator (outlet) | 1 | |
| 20 | 33-5140 | GROMMET - tube | 2 | |
| 21 | 13-1216 | HOSE - inlet (radiator to pump) | 1 | |
| 22 | 13-1215 | HOSE - outlet (pump to radiator) | 1 | |
| 23 | 51-2209 | CLAMP - hose (44 mm) | 1 | |
| 24 | 99-1655 | HOSE - overflow | 1 | |
| 25 | 51-2514 | CLAMP - hose (38 mm) | 3 | |
| 26 | 33-4979 | EXTRUSION - rubber | 1 | |
| 27 | 92-9853 | BRACKET - radiator | 1 |
