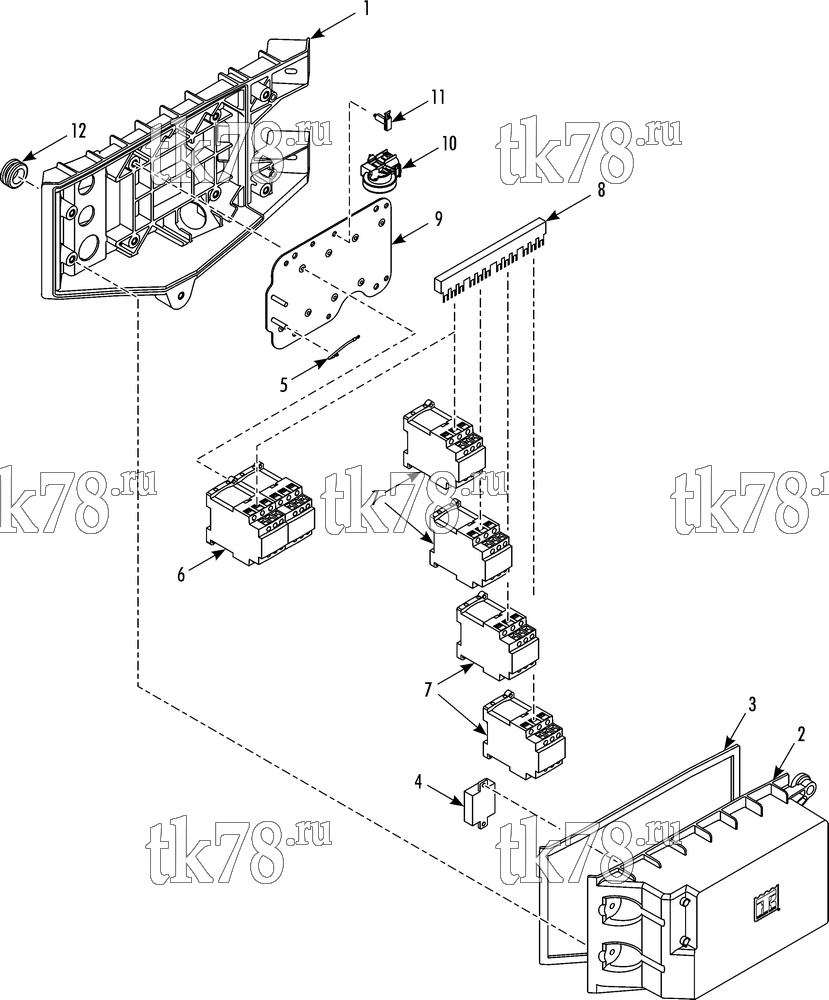

Установкa Thermo King PRECEDENT S-600 схема CONTROL BOX - BLOWER & FANS – 261B8
Обновление от: 5/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8850 | HOUSING - fan control box | 1 | |
| 51-2217 | SCREW - housing (M6 X 45) | 2 | ||
| 51-2218 | SCREW - housing (M6 X 50) | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7007 | NUT | 2 | ||
| 2 | 98-8962 | COVER - fan control box | 1 | |
| 51-2199 | SCREW - cover (M6 X 16) | 2 | ||
| 51-2212 | SCREW - cover (M6 X 25) | 2 | ||
| 55-8782 | WASHER - retainer | 4 | ||
| 3 | 33-4917 | GASKET - control box | 1 | |
| 4 | 42-237 | RELAY - ground fault | 1 | |
| 42-519 | CONNECTOR - 2-pin | 1 | ||
| 42-521 | TERMINAL - female | 2 | ||
| 44-9544 | RECEPTACLE - 3-pin | 1 | ||
| 51-2304 | SCREW - relay | 2 | ||
| 5 | 42-433 | HARNESS - fan box | 1 | |
| 55-7367 | NUT - ground stud | 2 | ||
| 55-7034 | NUT - ground stud (locking) | 2 | ||
| 51-1768 | MOUNT - cable tie | 5 | ||
| 6 | 42-430 | CONTACTOR - evaporator motor (with interlock, before 5/13) | 1 | |
| 7 | 42-432 | CONTACTOR - condenser motors (after 5/13, also used for evaporator) | 4 | |
| 51-2305 | SCREW - contactor | 8 | ||
| 8 | 42-431 | BUSBAR - 4 position | 1 | |
| 9 | 92-9857 | PLATE - contactors | 1 | |
| 51-2305 | SCREW - plate | 8 | ||
| 10 | 42-396 | SENSOR - current (early units only) | 1 | |
| 11 | 42-709 | CLIP - connector (early units only) | 1 | |
| 12 | 33-4916 | GROMMET | 1 |
