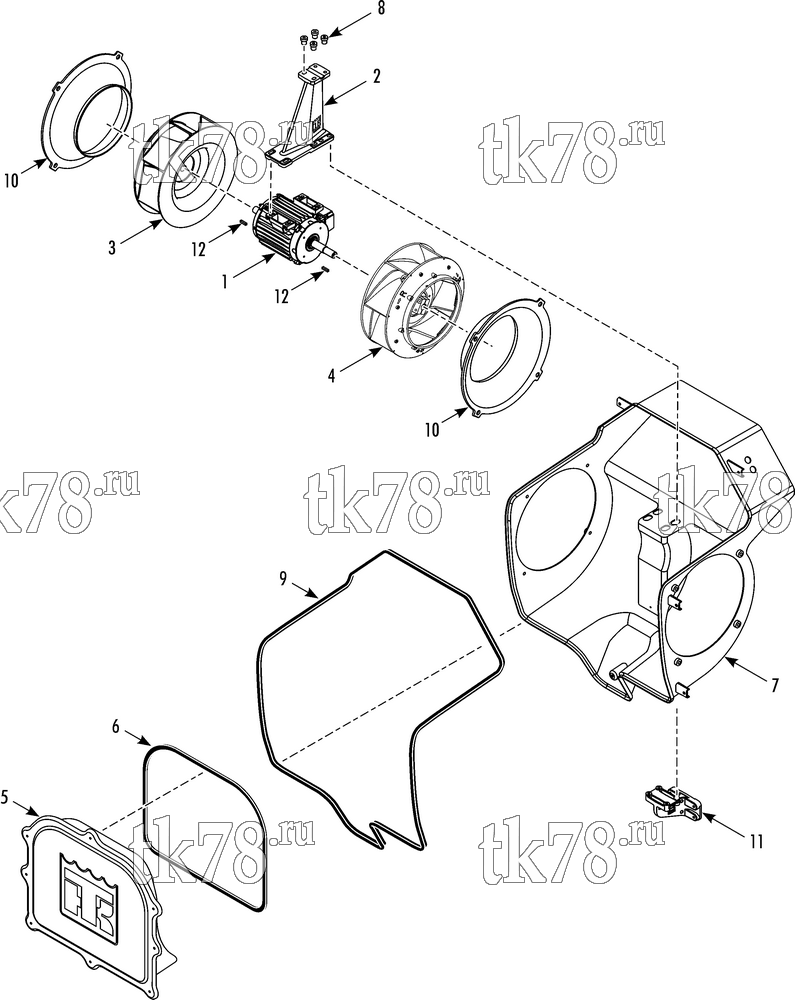

Установкa Thermo King PRECEDENT S-600 схема EVAPORATOR BLOWER GROUP – 261B7
Обновление от: 8/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-809 | MOTOR - evaporator blower | 1 | |
| 42-1278 | PROTECTOR - thermal (high speed) | 1 | ||
| 42-1279 | PROTECTOR - thermal (low speed) | 1 | ||
| 55-7828 | SCREW - motor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 2 | 92-9686 | BRACKET - motor | 1 | |
| 51-1119 | SCREW - bracket | 4 | ||
| 55-4184 | WASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 3 | 78-1819 | BLOWER - evaporator (curbside) | 1 | |
| 4 | 78-1818 | BLOWER - evaporator (roadside) | 1 | |
| 55-8137 | SCREW - blower | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 5 | 98-9133 | DOOR - access | 1 | |
| 6 | 33-4924 | SEAL - access door | 1 | |
| 7 | 98-8972 | HOUSING - evaporator blower | 1 | |
| 8 | 51-2225 | BUSHING - evaporator blower (top) | 4 | |
| 9 | 33-4925 | SEAL - housing | 1 | |
| 10 | 98-8973 | INLET - spinning | 2 | |
| 51-2200 | SCREW - inlet | 12 | ||
| 51-953 | WASHER | 12 | ||
| 11 | 92-9687 | BRACKET - housing | 1 | |
| 55-8137 | SCREW - bracket | 4 | ||
| 51-953 | WASHER | 4 | ||
| 12 | 55-3264 | KEY - motor | 2 |
