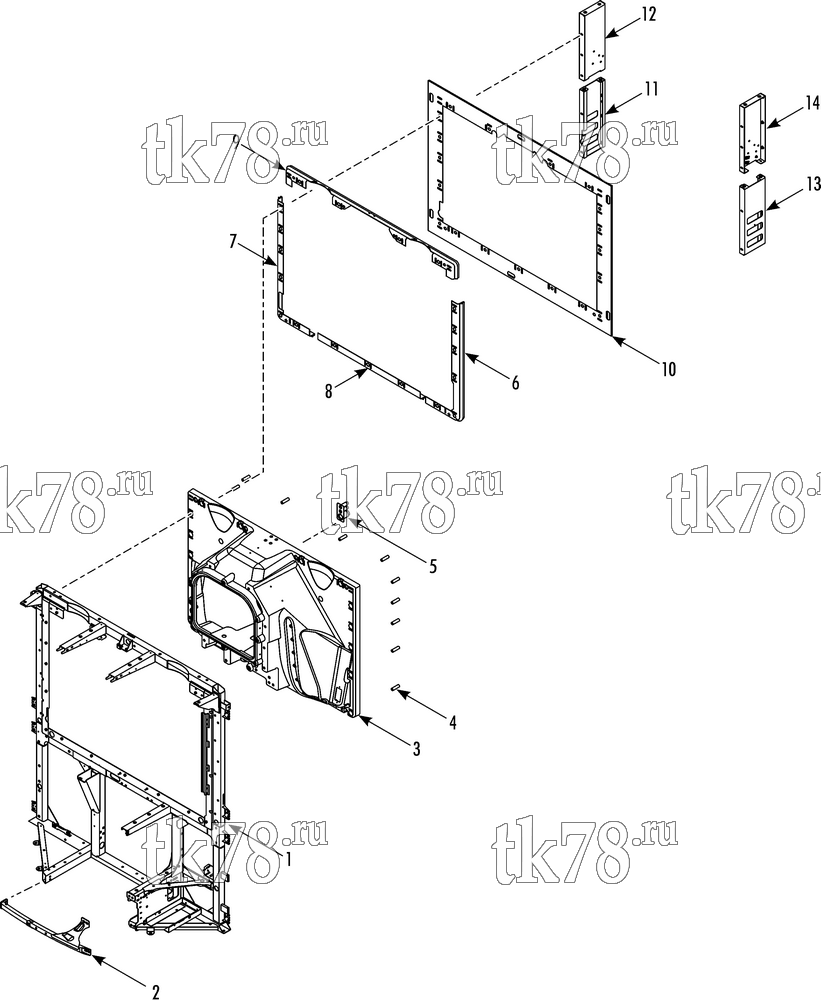

Установкa Thermo King PRECEDENT S-600 схема CONDENSER FRAME & EVAPORATOR HOUSING – 261B6
Обновление от: 5/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | FRAME - condenser | 1 | |
| 2 | 98-9072 | BUMPER | 1 | |
| 51-1247 | SCREW - bumper | 6 | ||
| 55-7072 | FLATWASHER | 6 | ||
| 3 | 98-9018 | BULKHEAD - evaporator (foamed) | 1 | |
| 4 | 51-2593 | BUSHING - bulkhead | 19 | |
| 51-891 | SCREW - bulkhead | 19 | ||
| 51-2594 | WASHER | 19 | ||
| 5 | 33-4933 | PLUG - refrigeration tubes | 1 | |
| 6 | 33-4945 | AIR SEAL - roadside | 1 | |
| 7 | 33-4946 | AIR SEAL - curbside | 1 | |
| 8 | 33-4943 | AIR SEAL - bottom | 1 | |
| 9 | 33-4944 | AIR SEAL - top | 1 | |
| 10 | 33-4953 | GASKET - sill | 1 | |
| 203-412 | SEALER | A/R | ||
| 11 | 92-9849 | PANEL - lower (curbside) | 1 | |
| 12 | 92-9851 | PANEL - upper (curbside) | 1 | |
| 13 | 92-9848 | PANEL - lower (roadside) | 1 | |
| 14 | 92-9850 | PANEL - upper (roadside) | 1 | |
| 51-2200 | SCREW - panel | 4 | ||
| 55-3686 | NUT - unit | 8 | ||
| 55-2038 | FLATWASHER | 8 | ||
| 55-5234 | WASHER - special | 8 |
