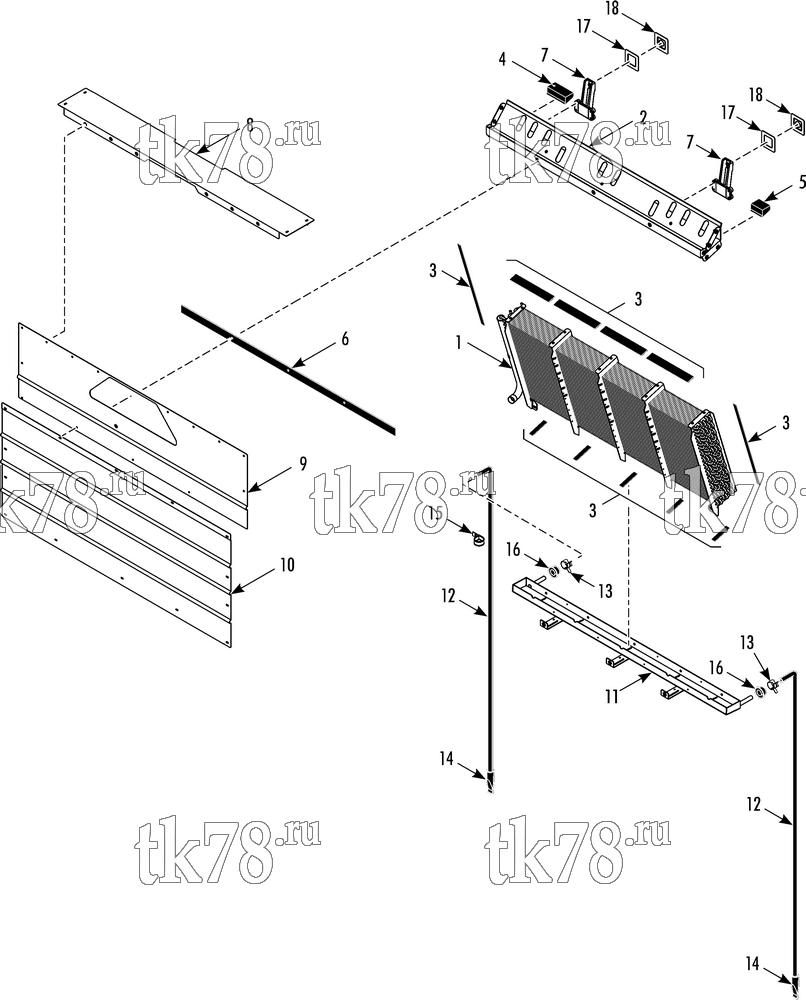

Установкa Thermo King PRECEDENT S-600 схема EVAPORATOR AND PANELS – 261B1
Обновление от: 9/3/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2727 | COIL - evaporator (see 261B2) | 1 | |
| 51-2200 | SCREW - evaporator | 20 | ||
| 51-953 | WASHER | 8 | ||
| 2 | 98-9011 | CROSSBEAM - evaporator support | 1 | |
| 51-2200 | SCREW - crossbeam | 9 | ||
| 51-2265 | INSERT - threaded | 9 | ||
| 3 | 33-3531 | STRIP - sealing | A/R | |
| 4 | 33-4976 | SPACER - foam (roadside) | 1 | |
| 5 | 33-4977 | SPACER - foam (curbside) | 1 | |
| 6 | 33-4954 | STRIP - sealing | 1 | |
| 7 | 92-9659 | SUPPORT - condenser fan motor | 2 | |
| 55-6987 | SCREW - support | 8 | ||
| 55-7342 | LOCKWASHER | 8 | ||
| 51-953 | WASHER - special | 8 | ||
| 8 | 98-9014 | PANEL - top | 1 | |
| 51-2200 | SCREW - panel | 4 | ||
| 9 | 98-8958 | PANEL - upper | 1 | |
| 10 | 98-8957 | PANEL - lower | 1 | |
| 51-2201 | SCREW - panel (25 mm) | 22 | ||
| 51-2200 | SCREW - panel (30 mm) | 4 | ||
| 11 | 67-2793 | PAN - defrost drain (inc drain pan, tubes & brackets) | 1 | |
| 12 | 92-1351 | HOSE - defrost drain | 2 | |
| 13 | 13-1148 | CLAMP - hose | 2 | |
| 14 | 66-1273 | VALVE - check | 2 | |
| 55-2330 | BANDWRAP | 2 | ||
| 55-1705 | CLAMP - valve | 2 | ||
| 55-5660 | SCREW - clamp | 2 | ||
| 15 | 55-4552 | CLAMP - drain hose | 1 | |
| 51-2200 | SCREW - clamp | 1 | ||
| 16 | 51-2204 | BUSHING - drain hose | 2 | |
| 17 | 33-5057 | GASKET - support | 2 | |
| 18 | 92-9661 | PLATE - gasket | 2 |
