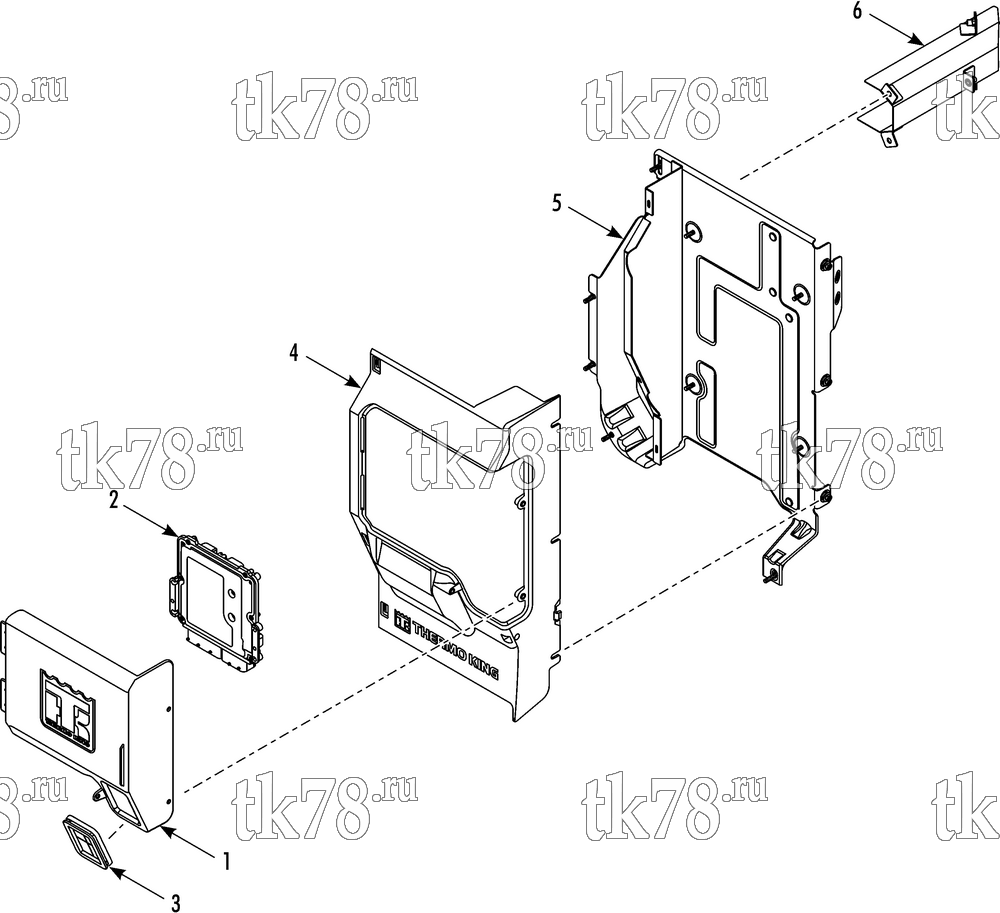

Установкa Thermo King PRECEDENT S-600 схема CONTROL BOX - ECU S-600 – 261B0
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-239 | MOUNT - ECU | 1 | |
| 51-2212 | SCREW - mount | 4 | ||
| 2 | 42-531 | ECU - TIER 4 (Yanmar) | 1 | |
| 51-2198 | SCREW - ECU | 4 | ||
| 3 | 33-5006 | GROMMET - ECU | 1 | |
| 4 | 92-9664 | COVER - ECU | 1 | |
| 51-2212 | SCREW - cover | 4 | ||
| 5 | 92-9663 | MOUNT - ECU | 1 | |
| 51-2212 | SCREW - box | 4 | ||
| 6 | 93-240 | SHIELD - heat | 1 | |
| 51-2212 | SCREW - heat shield | 2 |
