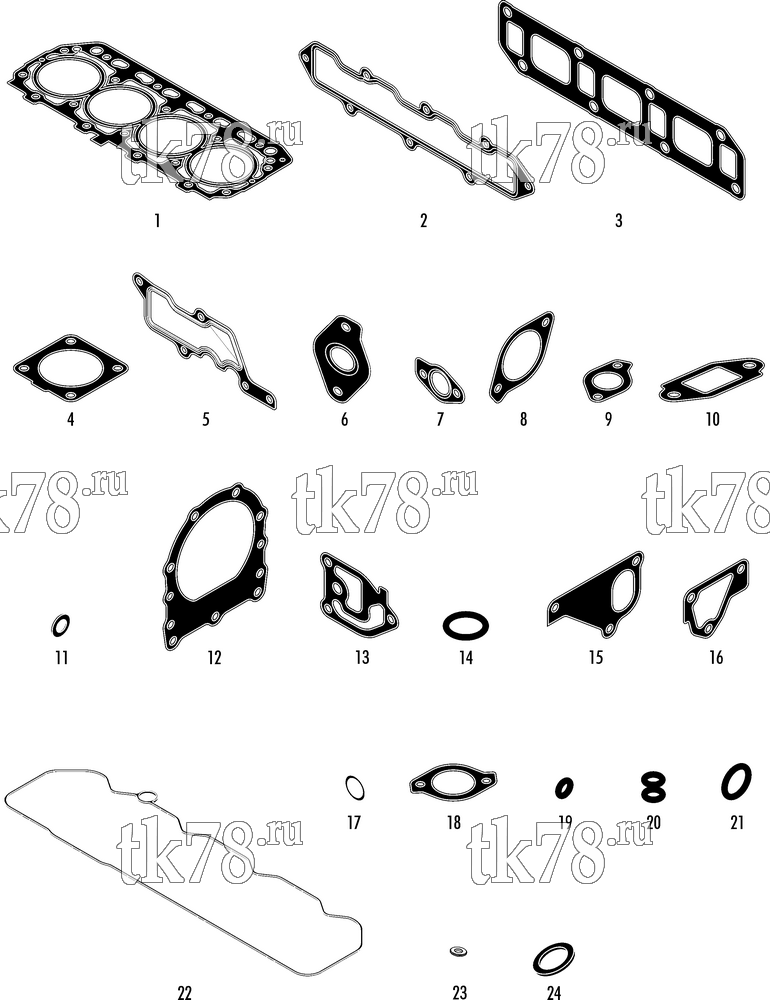

Установкa Thermo King PRECEDENT S-600 схема ENGINE GASKETS – 260E5
Обновление от: 4/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-5056 | GASKET - head | 1 | |
|
33-4122 OEM | Прокладка ГБЦ, Yanmar 486V, SB-XXX/SLX/SLXe | 13 740 ₽ |
|
|
PP-33-4122 | Прокладка ГБЦ, Yanmar 486V, SB-XXX/SLX/SLXe | 2 900 ₽ |
|
| 2 | 33-4961 | GASKET - intake manifold | 1 | |
| 3 | 33-4960 | GASKET - exhaust manifold | 1 | |
| 4 | 33-4959 | GASKET - exhaust | 2 | |
| 5 | 33-4962 | GASKET - collector | 1 | |
| 6 | 33-4964 | GASKET - EGR cooler | 1 | |
| 7 | 33-4968 | GASKET - EGR cooler | 1 | |
| 8 | 33-4963 | GASKET - EGR-V in | 1 | |
| 9 | 33-4965 | GASKET - EGR tube | 1 | |
| 10 | 33-4967 | GASKET - EGR-V out | 1 | |
| 11 | 33-1524 | GASKET - water pump | 1 | |
| 12 | 33-2969 | GASKET - case | 1 | |
|
33-2969 OEM | Прокладка заднего сальника, Yanmar 482 / 486 / 486V | 2 470 ₽ |
|
| 13 | 33-2931 | GASKET - oil filter bracket | 1 | |
| 14 | 33-4090 | O-RING - filler cap | 1 | |
| 15 | 33-3096 | GASKET - water pump | 1 | |
|
10-33-3096 | Прокладка водяной помпы, Yanmar 482 / 486 / 486V | 1 400 ₽ |
|
| 16 | 33-3097 | GASKET - thermostat housing | 1 | |
|
10-33-3097 | Прокладка корпуса термостата, Yanmar 482 / 486 / 486V | 1 230 ₽ |
|
| 17 | 33-1745 | WASHER - sealing | 1 | |
| 18 | 33-2767 | GASKET - thermostat | 1 | |
|
33-2767 OEM | Прокладка термостата верхняя, Yanmar 482 / 486 / 468V | 1 300 ₽ |
|
|
10-33-2767 | Прокладка термостата верхняя, Yanmar 482 / 486 / 468V | 890 ₽ |
|
| 19 | 33-3512 | O-RING - gear housing | 1 | |
| 20 | 33-3821 | O-RING - gear case (16 mm) | 2 | |
| 21 | 33-1954 | O-RING - gear housing | 1 | |
| 33-3098 | O-RING - joint (water pump) | 1 | ||
| 10-33-3098 | О-ринг корпуса термостата, Yanmar 482 / 486 / 486V | 2 530 ₽ |
|
|
| 33-2768 | O-RING - thermostat | 1 | ||
|
33-2768 OEM | Прокладка термостата нижняя, Yanmar 482 / 486 / 468V | 1 510 ₽ |
|
| 22 | 33-4958 | GASKET - valve cover | 1 | |
| 23 | 33-4966 | GASKET - injector | 1 | |
| 24 | 33-1975 | GASKET - EXH P sensor | 1 |
