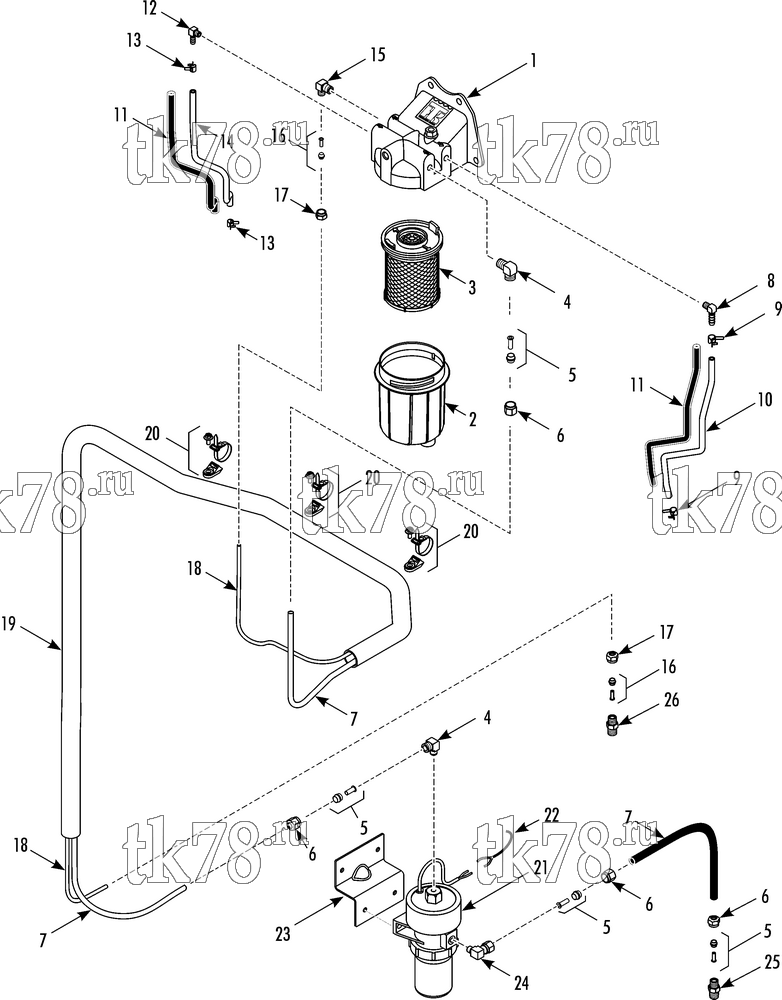

Установкa Thermo King PRECEDENT S-600 схема FUEL FILTER & HOSES S-600 – 260E2
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1301 | HEAD ASSEMBY - fuel filter | 1 | |
| 2 | 13-1164 | BOWL | 1 | |
| 3 | 11-9957 | ELEMENT - fuel filter (EMI 3000) | 1 | |
| 11-9958 | ELEMENT - fuel filter (severe duty) | 1 | ||
| 51-2221 | SCREW - head | 4 | ||
| 4 | 13-1230 | ELBOW - hose (3/8) | 2 | |
| 5 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 11-4941 | NUT - hose (3/8) | 4 | |
| 7 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 8 | 13-1222 | ELBOW - hose (9.8 od) | 1 | |
| 9 | 51-2302 | CLAMP - hose (16 mm) | 2 | |
| 10 | 13-1249 | HOSE (9.8 mm in x 25 ft lg) | A/R | |
| 11 | 13-1286 | TUBE - cover (corrugated 25 ft) | A/R | |
| 12 | 13-1225 | ELBOW - hose | 1 | |
| 13 | 51-2301 | CLAMP - hose (14 mm) | 2 | |
| 14 | 13-1250 | HOSE (7.9 mm id x 25 ft lg) | A/R | |
| 15 | 13-1251 | ELBOW - hose (1/4) | 1 | |
| 16 | 10-243 | KIT - sleeve & eyelet (1/4) | 2 | |
| 17 | 11-4841 | NUT - hose (1/4) | 2 | |
| 18 | 11-4367 | HOSE (1/4 od x 35 ft) | 1 | |
| 19 | 51-2281 | TUBE - cover (corrugated) | 1 | |
| 55-2330 | BANDWRAP | 9 | ||
| 20 | 51-2300 | MOUNT - bandwarp | 3 | |
| 51-2220 | BANDWRAP - mounting | 3 | ||
| 51-2199 | SCREW - bandwrap | 3 | ||
| 55-4607 | FLATWASHER | 3 | ||
| 55-7007 | NUT | 3 | ||
| 21 | 42-351 | PUMP - fuel w/ strainer | 1 | |
| 10-376 | KIT - filter & gasket | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl | 1 | ||
| 51-2201 | SCREW - pump | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7008 | NUT | 2 | ||
| 22 | 42-717 | HARNESS - fuel pump | 1 | |
| 41-130 | TERMINAL - splice | 4 | ||
| 23 | 92-9683 | BRACKET - pump | 1 | |
| 24 | 13-1223 | CONNECTOR - pump inlet | 1 | |
| 25 | 11-8982 | CONNECTOR - fuel tank supply | 1 | |
| 26 | 13-1231 | CONNECTOR - fuel tank return | 1 |
