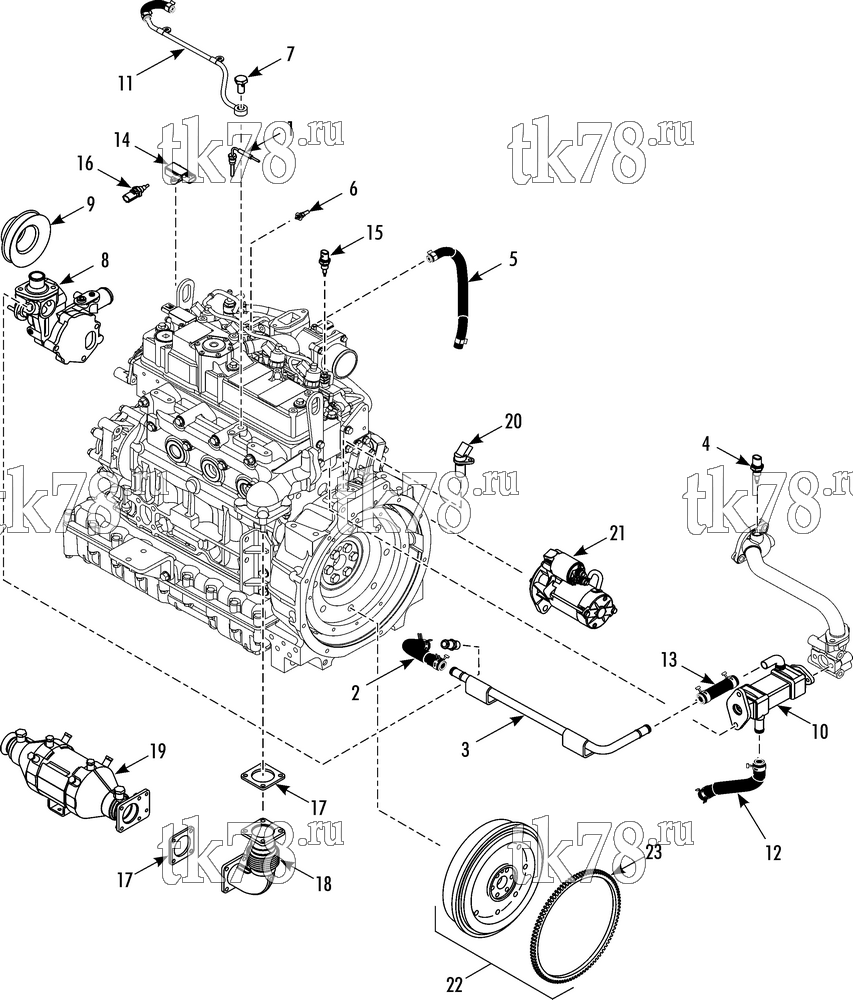

Установкa Thermo King PRECEDENT S-600 схема ENGINE TK488CR – 260E11
Обновление от: 9/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-382 | ENGINE - TK488CR | 1 | ||
| 1 | 42-534 | SENSOR - exhaust temperature | 1 | |
| 2 | 13-1269 | HOSE - coolant | 1 | |
| 3 | 13-1264 | TUBE - coolant | 1 | |
| 4 | 42-536 | SENSOR - EGR gas temperature | 1 | |
| 5 | 13-1263 | PIPE - fuel return | 1 | |
| 6 | 13-1272 | CLIP - bandwrap | A/R | |
| 7 | 51-2272 | BOLT - joint | 1 | |
| 8 | 13-1259 | PUMP - coolant | 1 | |
| 13-385 | THERMOSTAT - coolant | 1 | ||
|
13-385 OEM | Термостат, Yanmar 486V, SB/SLX/SLXe | 5 100 ₽ |
|
|
PP-13-385 | Термостат, Yanmar 486V, SB/SLX/SLXe | 2 540 ₽ |
|
| 9 | 13-358 | PULLEY - coolant pump (see belt group 261C5 & 261E1) | 1 | |
| 10 | 13-1258 | COOLER - EGR | 1 | |
| 11 | 13-1261 | PIPE - exhaust (manifold to catalytic converter) | 1 | |
| 12 | 13-1268 | HOSE - ERG to block | 1 | |
| 13 | 13-1271 | HOSE - coolant | 1 | |
| 14 | 42-533 | SENSOR - pressure | 1 | |
| 15 | 42-539 | SENSOR - air temperature, intake | 1 | |
| 16 | 42-541 | THERMOMETER - coolant | 1 | |
| 17 | 33-5150 | GASKET - exhaust | 1 | |
| 18 | 13-1674 | ELBOW - exhaust | 1 | |
| 19 | 13-1673 | CATALYST - oxidation | 1 | |
| 20 | 42-530 | SENSOR - flywheel, rpm | 1 | |
| 21 | 45-2177 | STARTER | 1 | |
|
10-45-2177 | Стартер, Yanmar 486V, SLX/SLXe | 12 520 ₽ |
|
| 845-2324 | STARTER - remanufactured | 1 | ||
| 45-2324 | STARTER - standard life | 1 | ||
| 55-8898 | SCREW - starter | 1 | ||
| 203-799 | Soot Scrubber (see note) | 1 | ||
| 204-2379 | TOOL - heated cleaning bath | 1 | ||
| 22 | 12-1034 | FLYWHEEL (inc ring gear) | 1 | |
| 23 | 13-1138 | RING GEAR | 1 |
