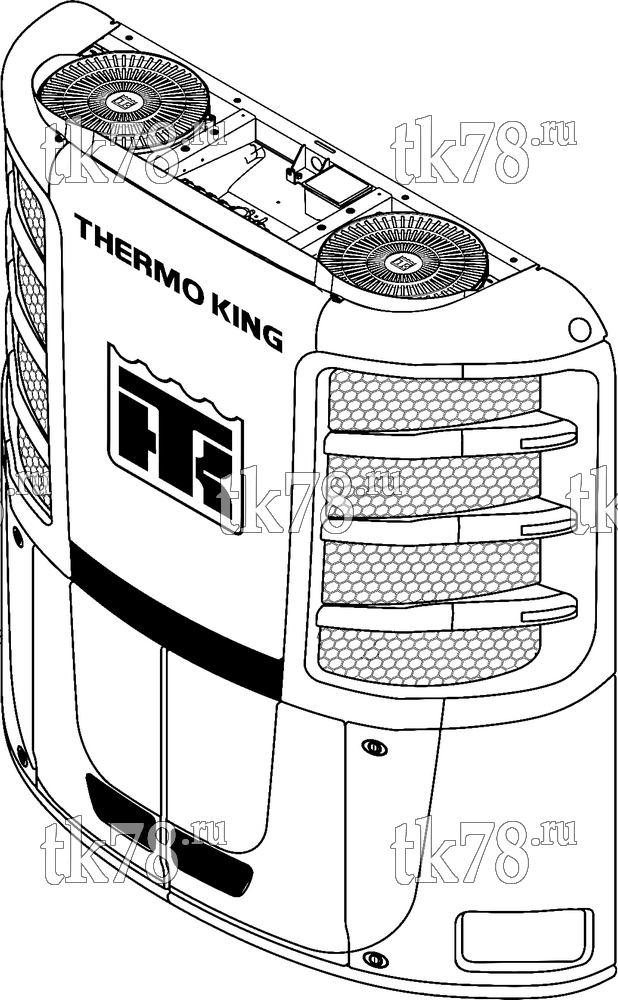

Установкa Thermo King PRECEDENT S-600 схема PRECEDENT S-600 REFERENCE SHEET – 18U34
Обновление от: 5/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 902246 | System PRECEDENT S-600 | 11/12 | ||
| 070114 | PRECEDENT S-600 | 5/13 | ||
| 070019 | LED Package | 9/12 | ||
| 070031 | Fuel Tank 50 gallon (w/ anti siphon w/ USFLS) | 11/12 | ||
| 070033 | Fuel Tank 50 gallon (heat chamber w/ USFLS) | 11/12 | ||
| 070034 | Fuel Tank 50 gallon (polished w/ USFLS) | 11/12 | ||
| 070050 | Evaporator Heaters | 9/12 | ||
| 070075 | Smart Power Package 12HP-230V & Battery Charger | 3/13 | ||
| 070076 | Smart Power Package 12HP-460V & Battery Charger | 3/13 | ||
| 070077 | Smart Power Package 19HP-460V & Battery Charger | 3/13 | ||
| 070113 | Alternator 65 amp | 11/12 | ||
| 070117 | Smart Power Package | 11/12 | ||
| 070118 | Smart Power Package | 11/12 | ||
| 070119 | Smart Power Package | 11/12 | ||
| 070123 | Chrome Doors & Grilles | 3/13 | ||
| 070142 | Fuel Heater | 11/12 | ||
| 070143 | Block Heater | 10/12 | ||
| 070145 | Smart Power Package | 10/12 | ||
| 070160 | Kit Rear Controller | 11/12 | ||
| 070162 | Smart Power Package | 9/12 | ||
| 070166 | Remote Rear Receptacle | 5/13 | ||
| 070168 | Remote Rear Receptacle Pin & Sleeve 12HP 460V | 11/12 | ||
| 070169 | Pin and Sleeve Smart Power 12HP-460V | 11/12 | ||
| 070177 | Arctic Package | 11/12 | ||
| 070179 | Battery Cable Smooth Post | 11/12 | ||
| 070199 | REB iBox + 3rd Party 2-Way | 11/12 | ||
| 070201 | REB iBox + T-Mobile | 11/12 | ||
| 070202 | REB iBox + cellular + WIFI | 11/12 | ||
| 070203 | REB GPS + WIFI + T-Mobile | 11/12 | ||
| 070204 | REB GPS + WIFI + cellular | 11/12 | ||
| 070205 | Fuel Tank 30 gallon (w/ USFLS) | 3/13 | ||
| 070206 | Fuel Tank 75 gallon (w/ USFLS) | 3/13 | ||
| 070207 | Fuel Tank 110 gallon (w/ USFLS) | 3/13 | ||
| 070208 | Fuel Tank 120 gallon (w/ USFLS) | 3/13 | ||
| 070246 | REB iBox + GPS + cellular | 11/12 | ||
| 070243 | Remote Light Status | 10/12 | ||
| 070258 | Smart Power Prep Kit 65 amp alt | 10/12 | ||
| 070279 | Fuel Tank 30 gallon (w/ USFLS) | 3/13 | ||
| 070282 | Fuel Gauge (twin site, optional) | 3/13 | ||
| 070287 | HMI Cover (optional) | 3/13 | ||
| 070313 | Fuel Tank 50 gallon (w/ USFLS & four ports) | 3/13 | ||
| 070314 | Evaporator Bulkhead | 3/13 | ||
| 069069 | Oil Drain, Quick Connect - ESOC | 10/12 | ||
| 069117 | CAN Harness | 10/12 | ||
| 069170 | CargoLink Wireless door switch 1 sw | 10/12 | ||
| 069172 | CargoLink Wireless door switch 3 sw | 10/12 | ||
| 700248 | Switch Single Door | 10/12 | ||
| 700250 | Switch Dual Doors Single Zone | 10/12 | ||
| 702131 | Remote Light Status - Fuel Combo | 10/12 | ||
| 702390 | Remote Light Status - Triple Combo | 10/12 | ||
| 720491 | HMI CargoWatch Sensor 10 ft | 10/12 | ||
| 720492 | HMI CargoWatch Sensor 20 ft | 11/12 | ||
| 720493 | HMI CargoWatch Sensor 40 ft | 11/12 | ||
| 720494 | HMI CargoWatch Sensor 60 ft | 11/12 | ||
| 720495 | HMI CargoWatch Sensor 80 ft | 11/12 | ||
| 702575 | HMI CargoWatch Sensor 100 ft | 3/13 |
