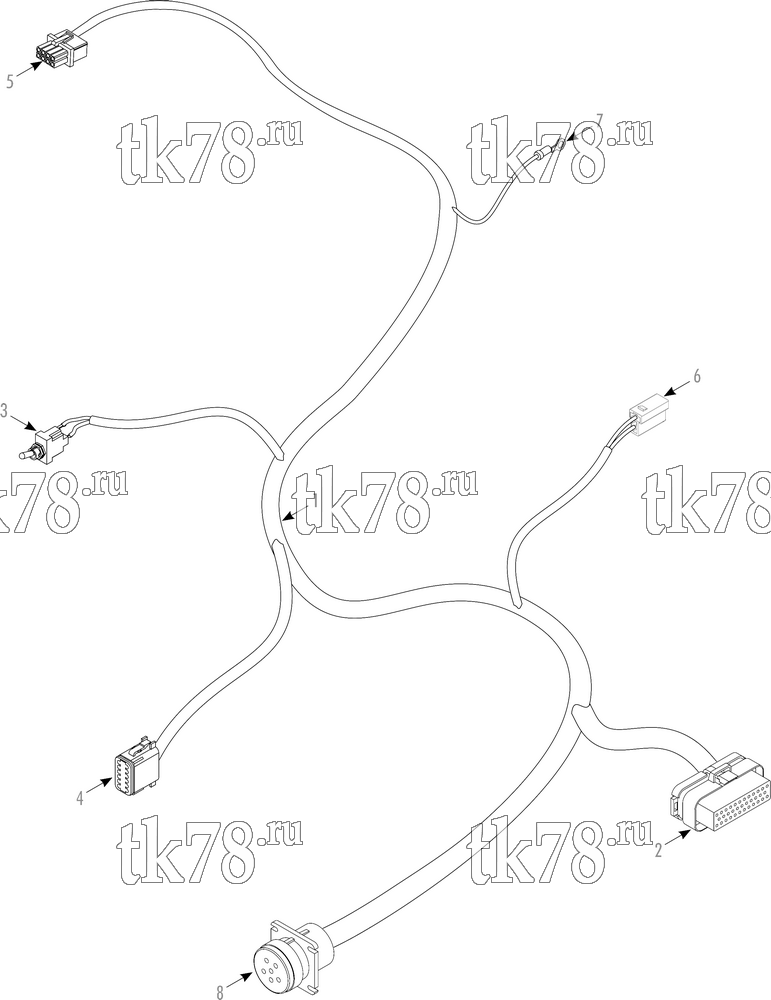

Установкa Thermo King PRECEDENT C-600 схема HARNESS - HMI – 270B7
Обновление от: 5/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-446 | HARNESS HMI | 1 | |
| 2 | 41-5001 | CONNECTOR - HMI | 1 | |
| 41-2457 | TERMINAL - socket | 25 | ||
| 3 | 41-4163 | SWITCH | 1 | |
|
30-41-4163 | Выключатель | 5 410 ₽ |
|
| 4 | 44-9600 | PLUG - evaporator (12-pin, w/ seal) | 1 | |
| 44-9601 | WEDGE | 1 | ||
| 41-8816 | SOCKET - gold (18 ga) | 12 | ||
| 5 | 41-5709 | CONNECTOR - sealed (8-pin) | 1 | |
| 33-3908 | GASKET (8-pin, plug) | 1 | ||
| 41-5719 | SOCKET (20-16 gauge) | 8 | ||
| 41-6256 | SEAL - wire | 8 | ||
| 6 | 44-5219 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5630 | TERMINAL - fingrip | 2 | ||
| 7 | 44-7245 | TERMINAL - ring (#10 red, 16-22 ga) | 1 | |
| 8 | 44-8329 | RECEPTACLE (6-pin) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 6 |
