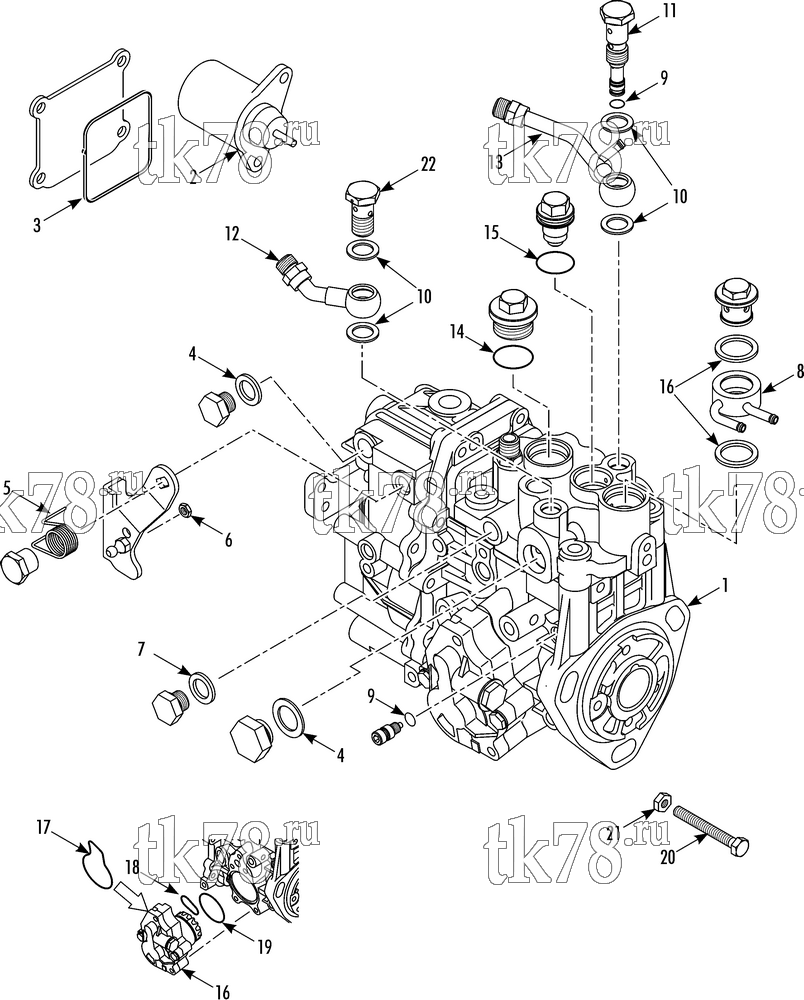

Установкa Thermo King PRECEDENT C-600 схема FUEL INJECTION PUMP GROUP (TK468V25) – 270B2
Обновление от: 5/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-1012 | PUMP - fuel injection | 1 | |
| 2 | 42-100 | SOLENOID - stop | 1 | |
|
10-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 8 670 ₽ |
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 2 000 ₽ |
|
| 3 | 33-4168 | GASKET - cover | 1 | |
| 4 | 55-8620 | WASHER - sealing (12 mm) | 2 | |
| 5 | 13-442 | SPRING - lever | 1 | |
| 6 | 51-1206 | NUT - ball joint | 1 | |
| 7 | 33-4170 | WASHER - sealing (18 mm) | 1 | |
| 8 | 13-450 | JOINT - banjo (water) | 1 | |
| 9 | 33-4171 | O-RING - stopper & eye bolt | 2 | |
| 10 | 55-8620 | WASHER - sealing (12 mm) | 4 | |
| 11 | 13-449 | BOLT - eye | 1 | |
| 12 | 13-448 | JOINT - banjo (fuel out) | 1 | |
| 13 | 13-446 | JOINT - banjo (fuel in) | 1 | |
| 14 | 33-5138 | O-RING - plug | 1 | |
| 15 | 33-5139 | O-RING - plug | 1 | |
| 16 | 13-511 | PUMP - feed | 1 | |
| 17 | 33-4193 | O-RING - inner | 1 | |
|
33-4193 OEM | Уплотнительное кольцо ТНВД, Yanmar 486V | 2 600 ₽ |
|
| 18 | 33-4990 | O-RING - pump | 1 | |
|
33-4990 OEM | Уплотнительное кольцо ТНВД, Yanmar 486V | 2 150 ₽ |
|
| 19 | 33-4190 | O-RING - pump | 1 | |
|
33-4190 OEM | Уплотнительное кольцо ТНВД, Yanmar 486V | 2 040 ₽ |
|
| 20 | 51-612 | SCREW - idler limit | 1 | |
| 21 | 55-5846 | NUT | 1 | |
| 22 | 13-447 | BOLT - eye | 1 |
