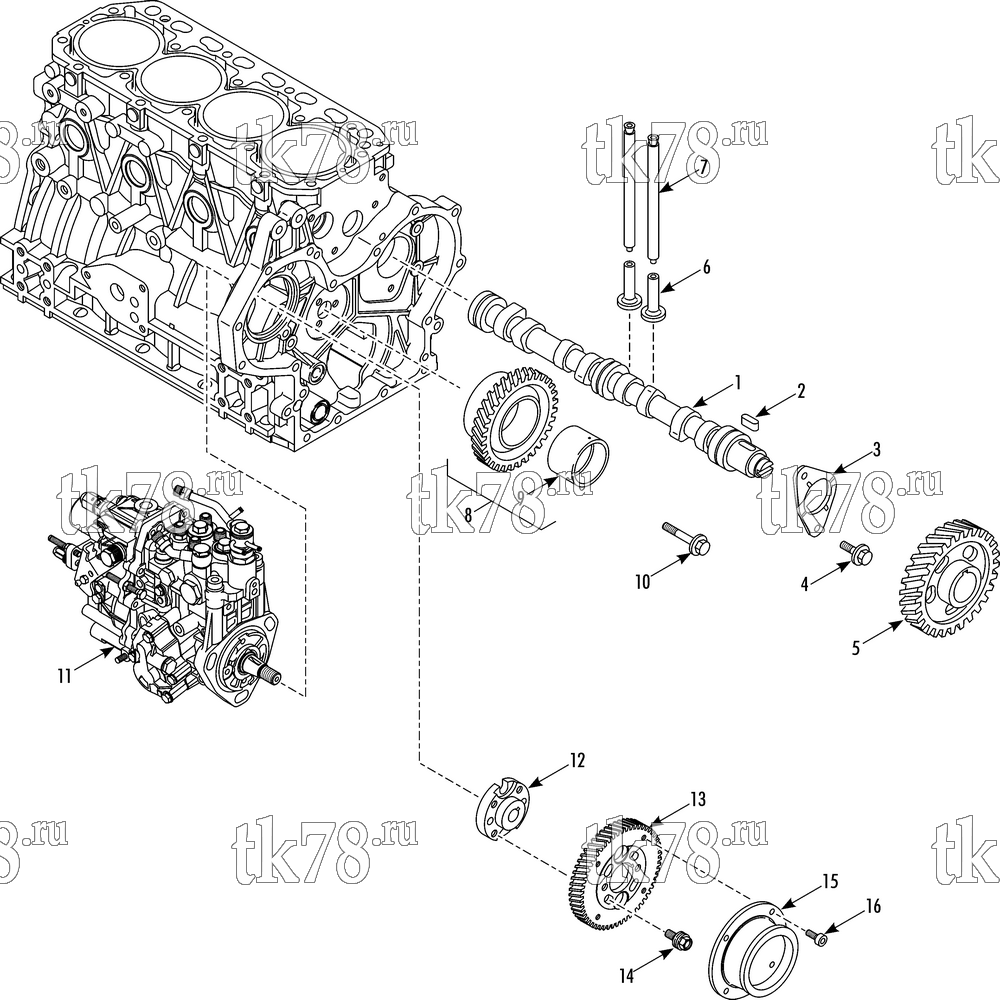

Установкa Thermo King PRECEDENT C-600 схема CAMSHAFT & DRIVE GEAR GROUP (TK468V25) – 270A8
Обновление от: 5/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9261 | CAMSHAFT (incl items 2 thru 5) | 1 | |
| 2 | 11-6719 | KEY - gear | 1 | |
| 3 | NSS | BEARING - thrust | 1 | |
| 4 | 55-5801 | BOLT - plate | 2 | |
| 5 | NSS | GEAR - camshaft | 1 | |
| 6 | 11-6717 | TAPPET | 8 | |
| 10-11-6717 | Толкатель клапана, Yanmar 482/486 | 3 100 ₽ |
|
|
| 7 | NSS | ROD - push | 4 | |
| 8 | 13-930 | GEAR (w/ bushing) | 1 | |
| 9 | 13-348 | BUSHING - idler gear | 1 | |
| 10 | 55-5772 | SCREW - gear | 2 | |
| 11 | 12-1012 | PUMP - fuel injection (see 270B2) | 1 | |
| 12 | 13-350 | FLANGE | 1 | |
| 13 | 13-349 | GEAR - injection pump | 1 | |
| 14 | 55-9222 | SCREW - gear | 4 | |
| 15 | 13-346 | CAM - feed pump | 1 | |
| 16 | 55-9223 | SCREW - cam | 4 |
