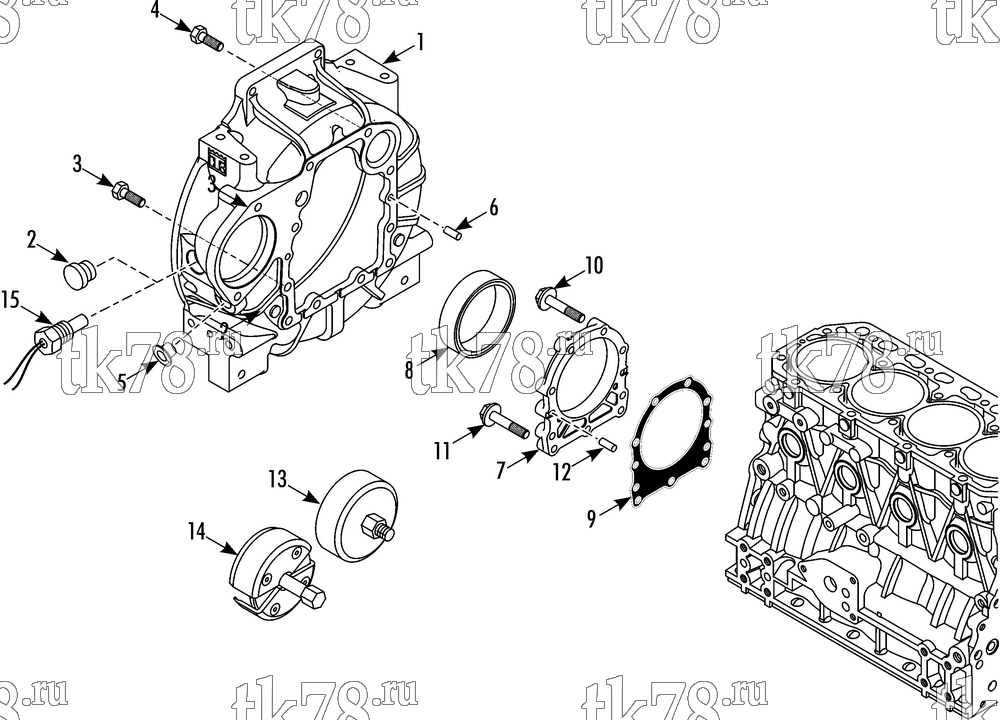

Установкa Thermo King PRECEDENT C-600 схема FLYWHEEL HOUSING GROUP (TK468V25) – 270A3
Обновление от: 5/3/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | HOUSING - flywheel | 1 | |
| 2 | 11-6031 | PLUG - access hole | 1 | |
| 3 | 55-8856 | SCREW - housing (30 mm) | 4 | |
| 4 | 55-6537 | SCREW - housing (25 mm) | 6 | |
| 5 | 51-1162 | SCREW - housing | 1 | |
| 6 | 55-5816 | PIN - dowel | 2 | |
| 7 | 11-8924 | CASE - oil seal | 1 | |
| 8 | 33-2974 | SEAL - oil (axial) | 1 | |
|
33-2974 OEM | Сальник коленвала задний, Yanmar TK 482 / 486 / 486V | 6 860 ₽ |
|
|
PP-33-2974 | Сальник коленвала задний, Yanmar 482 / 486 / 486V | 1 960 ₽ |
|
| 9 | 33-2969 | GASKET - oil seal case | 1 | |
|
33-2969 OEM | Прокладка заднего сальника, Yanmar 482 / 486 / 486V | 2 470 ₽ |
|
| 10 | 51-1149 | SCREW - case (30 mm) | 6 | |
| 11 | 55-6191 | SCREW - case (35 mm) | 3 | |
| 12 | 55-5816 | PIN - dowel | 2 | |
| 13 | 204-952 | TOOL - seal installer | 1 | |
| 14 | 204-994 | TOOL - seal remover | 1 | |
| 15 | 44-9298 | SENSOR - RPM | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
