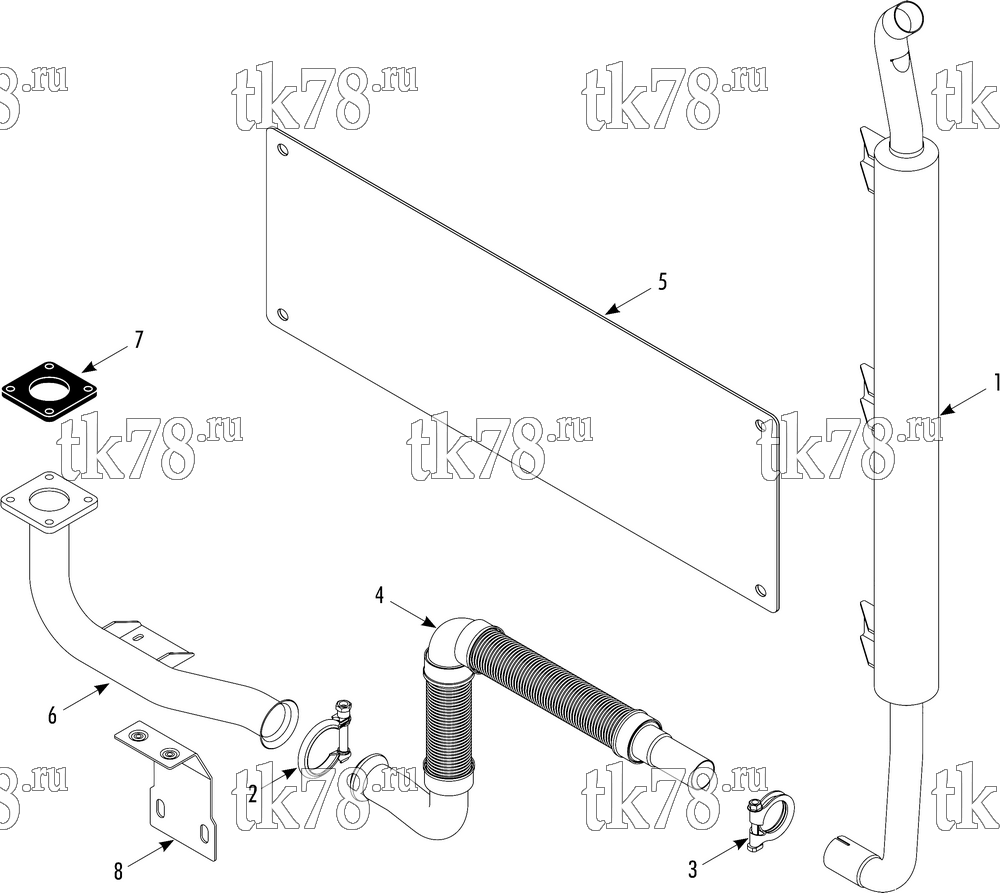

Установкa Thermo King PRECEDENT C-600 схема MUFFLER GROUP C-600 – 267H3
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-998 | MUFFLER | 1 | |
| 51-2212 | SCREW - muffler | 3 | ||
| 2 | 13-1217 | CLAMP - v-band | 1 | |
| 3 | 91-4611 | CLAMP - muffler | 2 | |
| 4 | 13-1218 | TUBE - exhaust | 1 | |
| 5 | 13-1218 | SHIELD - manifold | 1 | |
| 51-2613 | SCREW - shield | 4 | ||
| 6 | 13-1654 | TUBE - exhaust | 1 | |
| 55-6994 | SCREW - tube | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 7 | 33-5150 | GASKET - flange | 1 | |
| 8 | 93-1029 | BRACKET - exhaust tube | 1 | |
| 55-5969 | SCREW - bracket | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 9 | 93-1183 | EXTENSION - muffler | 1 |
