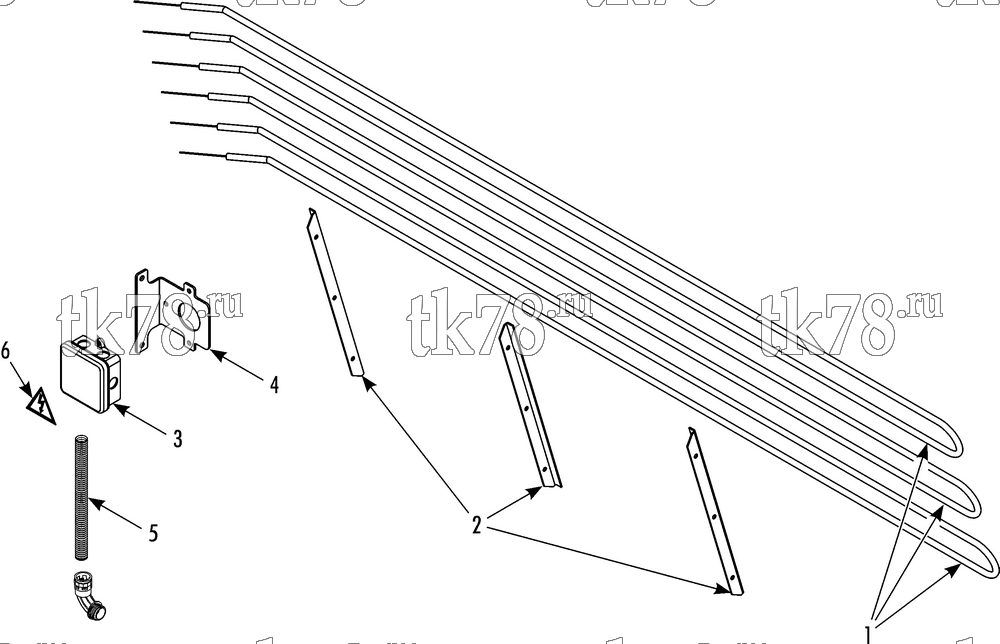

Установкa Thermo King PRECEDENT C-600 схема EVAPORATOR HEATERS – 261D8
Обновление от: 3/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2536 | HEATER - evaporator | 3 | |
| 44-9888 | TERMINAL | 6 | ||
| 2 | 92-9883 | BRACKET - heater | 3 | |
| 55-5639 | SCREW - bracket | 9 | ||
| 3 | 44-7354 | BOX - junction | 1 | |
| 55-7407 | SCREW - junction box | 2 | ||
| 4 | 92-9884 | BRACKET - junction box | 1 | |
| 51-2200 | SCREW - bracket | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7034 | NUT | 2 | ||
| 5 | 42-549 | HARNESS - heater | 1 | |
| 6 | 99-7834 | NAMEPLATE - Caution | 1 |
