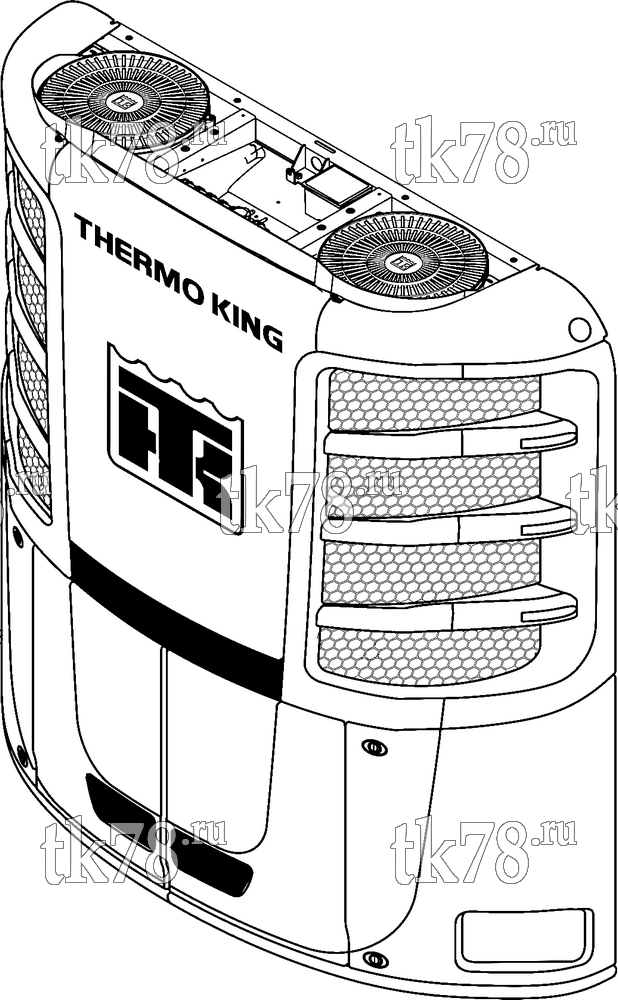

Установкa Thermo King PRECEDENT C-600 схема PRECEDENT C-600 REFERENCE SHEET – 18U83
Обновление от: 5/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901819 | System PRECEDENT C-600 | 2/13 | ||
| 070008 | PRECEDENT C-600 | 2/13 | ||
| 070019 | LED Package | 3/13 | ||
| 070031 | Fuel Tank 50 gallon (w/ anti siphon w/ USFLS) | 3/13 | ||
| 070032 | Fuel Tank 50 gallon (w/ USFLS) | 3/13 | ||
| 070033 | Fuel Tank 50 gallon (heat chamber w/ USFLS) | 3/13 | ||
| 070034 | Fuel Tank 50 gallon (polished w/ USFLS) | 3/13 | ||
| 070052 | Smart Power Package 230V/37 amp Alt | 3/13 | ||
| 070054 | Smart Power Package 460V/37 amp Alt | 3/13 | ||
| 070085 | Smart Power Package 230V/37 amp Alt/ Battery Charger | 3/13 | ||
| 070086 | Smart Power Package 460V/37 amp Alt/ Battery Charger | 3/13 | ||
| 070087 | Smart Power Package 460V/37 amp Alt/ Battery Charger | 3/13 | ||
| 070097 | Battery Charger | 3/13 | ||
| 070142 | Fuel Heater | 3/13 | ||
| 070143 | Block Heater | 3/13 | ||
| 070151 | Fuel Filter, Severe Duty | 5/13 | ||
| 070160 | Kit Rear Controller | 3/13 | ||
| 070166 | Receptacle 230/3/60 | 4/13 | ||
| 070167 | Remote Rear Receptacle 12HP 460V | 4/13 | ||
| 070168 | Remote Rear Receptacle 12HP 460V | 3/13 | ||
| 070169 | Remote Rear Receptacle 12HP 460V | 3/13 | ||
| 070177 | Arctic Package | 3/13 | ||
| 070180 | Battery Cable Smooth Post | 3/13 | ||
| 070182 | Chrome Appearance | 3/13 | ||
| 070187 | Chrome & LEDs Appearance | 3/13 | ||
| 070188 | LEDs Appearance | 3/13 | ||
| 070199 | REB iBox + 3rd Party 2-Way | 3/13 | ||
| 070201 | REB iBox + T-Mobile | 3/13 | ||
| 070202 | REB iBox + cellular + WIFI | 3/13 | ||
| 070203 | REB GPS + WIFI + T-Mobile | 3/13 | ||
| 070204 | REB GPS + WIFI + cellular | 3/13 | ||
| 070246 | REB iBox + GPS + cellular | 3/13 | ||
| 070243 | Remote Light Status | 3/13 | ||
| 070264 | Smart Power Package Battery Charger | 3/13 | ||
| 070276 | Battery Cable Smooth Post | 5/13 | ||
| 069069 | Oil Drain, Quick Connect-Esock | 3/13 | ||
| 069117 | CAN Harness | 3/13 | ||
| 069172 | CargoLink Wireless door switch 3 sw | 10/12 | ||
| 700248 | Switch Single Door | 3/13 | ||
| 700250 | Switch Dual Doors Single Zone | 3/13 | ||
| 702131 | Remote Light Status - Fuel Combo | 3/13 | ||
| 702390 | Remote Light Status - Triple Combo | 3/13 | ||
| 720491 | HMI CargoWatch Sensor 10 ft | 3/13 | ||
| 720492 | HMI CargoWatch Sensor 20 ft | 3/13 | ||
| 720493 | HMI CargoWatch Sensor 40 ft | 3/13 | ||
| 720494 | HMI CargoWatch Sensor 60 ft | 3/13 | ||
| 720495 | HMI CargoWatch Sensor 80 ft | 3/13 |
