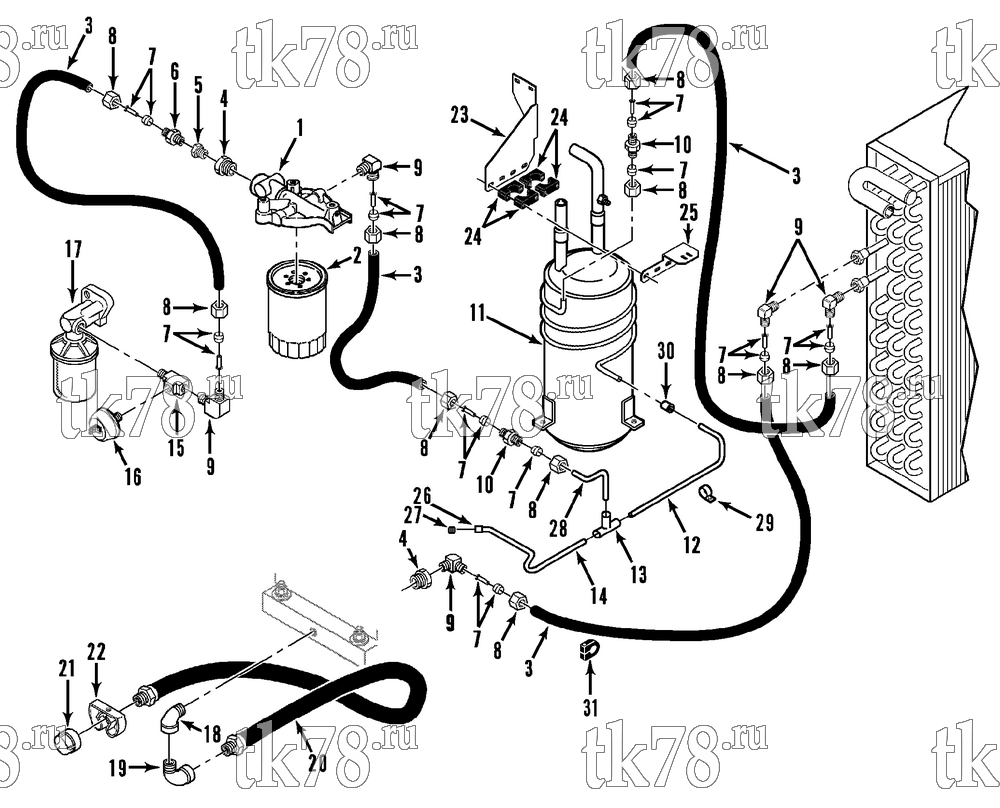

Установкa Thermo King PGM MAX & PGM-II MAX схема ENGINE OIL CIRCULATION GROUP (12/94 THRU 4/96) – 125F7
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7477 | BRACKET - bypass oil filter | 1 | |
| 55-193 | PLUG - bracket | 1 | ||
| 55-2962 | SCREW - bracket (1-3/4 in lg) | 2 | ||
| 55-3565 | SCREW - bracket (2 in lg) | 1 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 3 | ||
| 2 | 11-6228 | FILTER - oil bypass | 1 | |
|
11-9321 OEM | Фильтр масляный EMI 2000, MD/RD/KD/T-Series | 2 860 ₽ |
|
|
10-11-9321 | Фильтр масляный, MD/RD/KD/T-Series | 720 ₽ |
|
| 55-7131 | STUD - filter | 1 | ||
| 3 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 4 | 55-2539 | BUSHING | 2 | |
| 5 | 11-9595 | FITTING - restricted | 1 | |
| 6 | 55-4515 | CONNECTOR - hose (3/8) | 1 | |
| 7 | 10-242 | KIT - sleeve & eyelet (3/8) | 8 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 8 | 11-4941 | NUT - hose (3/8) | 10 | |
| 9 | 11-4380 | ELBOW (3/8) | 5 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10 | 11-7484 | CONNECTOR - hose (3/8) | 2 | |
| 11 | 66-7607 | TANK - accumulator | 1 | |
| 55-2683 | SCREW - tank | 3 | ||
| 55-7122 | WASHER - belleville | 3 | ||
| 55-7020 | NUT - special | 1 | ||
| 12 | 11-8489 | TUBE - tank to tee | 1 | |
| 13 | 55-2181 | TEE | 1 | |
| 14 | 11-8490 | TUBE - tee to adapter | 1 | |
| 15 | 55-665 | TEE | 1 | |
| 16 | 41-2801 | SWITCH - oil pressure | 1 | |
| 17 | 11-7345 | FILTER - oil (see 101C4) | 1 | |
| 18 | 55-2523 | ELBOW - hose (oil drain) | 1 | |
| 19 | 55-7132 | ELBOW - oil drain hose | 1 | |
| 20 | 11-6177 | HOSE - oil drain | 1 | |
|
10-11-6177 | Трубка масляная сливная (Yanmar) | 3 670 ₽ |
|
| 21 | 55-1042 | CAP - oil drain hose | 1 | |
| 22 | 91-734 | CLIP - oil drain hose | 2 | |
| 55-2991 | SCREW - clip | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 23 | 91-5586 | BRACKET - accumulator tank reinforce | 1 | |
| 55-3029 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 24 | 91-5587 | CLAMP - suction tube | 4 | |
| 55-4811 | SCREW - clamp & solenoid bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 25 | 91-8594 | BRACKET | 1 | |
| 26 | 55-8302 | ADAPTER | 1 | |
| 27 | 55-2665 | PLUG - drain | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 28 | 11-8491 | TUBE - filter to tee | 1 | |
| 29 | 55-549 | CLAMP - tube | 2 | |
| 55-3031 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 30 | 55-2865 | COUPLING | 1 | |
| 31 | 55-6389 | CLAMP - tube | 1 | |
| 55-3031 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 |
