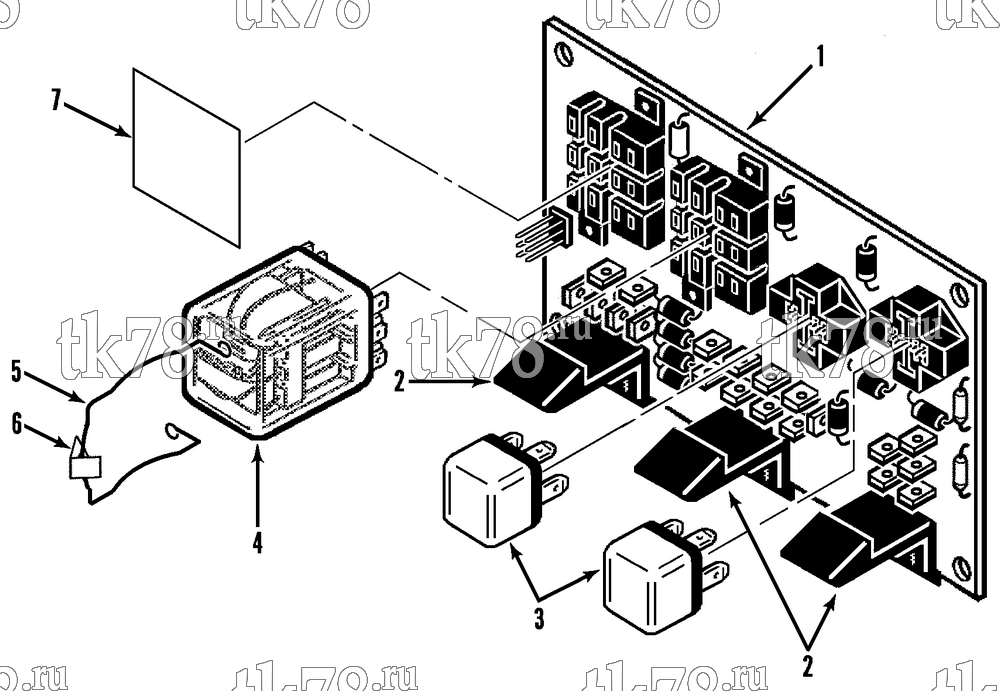

Установкa Thermo King PGM MAX & PGM-II MAX схема RELAY BOARD ASSEMBLY – 125F2
Обновление от: 5/8/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9333 | BOARD - relay | 1 | |
| 2 | 91-1277 | RETAINER - harness connector (w/o foot) | 3 | |
| 55-2262 | RIVET - retainer | 3 | ||
| 55-3550 | FLATWASHER | 3 | ||
| 3 | 41-895 | RELAY - mini | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 44-3186 | RELAY - defrost | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 5 | 99-2027 | SPRING - holddown | 1 | |
| 55-2262 | RIVET - spring | 2 | ||
| 6 | 55-2771 | CLAMP - speednut | 1 | |
| 7 | 91-4565 | NAMEPLATE - This Socket Not Used | 1 |
