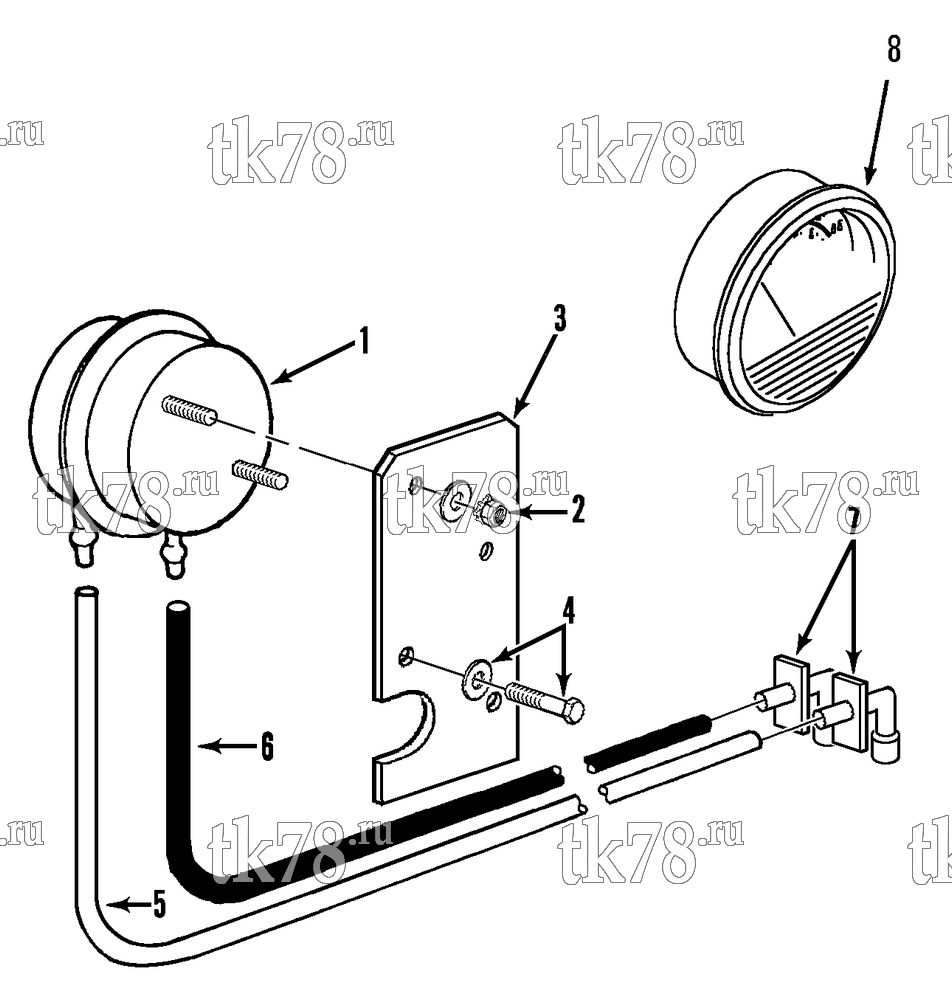

Установкa Thermo King PGM MAX & PGM-II MAX схема AIR SWITCH GROUP – 118A5
Обновление от: 1/10/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-6829 | SWITCH - air pressure differential (1.0 wc) | 1 | |
| 66-6243 | SWITCH - air pressure differential (0.7 wc) | 1 | ||
| 66-6245 | SWITCH - air pressure differential (0.9 wc, RD-II) | 1 | ||
| 2 | 55-4560 | NUT | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 91-8371 | BRACKET - air switch (used on PGM-II, KH-II, MD-II w/ TG V) | 1 | |
| 91-1730 | BRACKET - air switch (used on RD-II & TD-II w/ TG V) | 1 | ||
| 4 | 55-1587 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 99-1142 | HOSE (clear, 25 ft) | A/R | |
| 6 | 99-1143 | HOSE (black, 25 ft) | A/R | |
| 7 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 8 | 204-442 | GAUGE - Magnehelic pressure | 1 |
