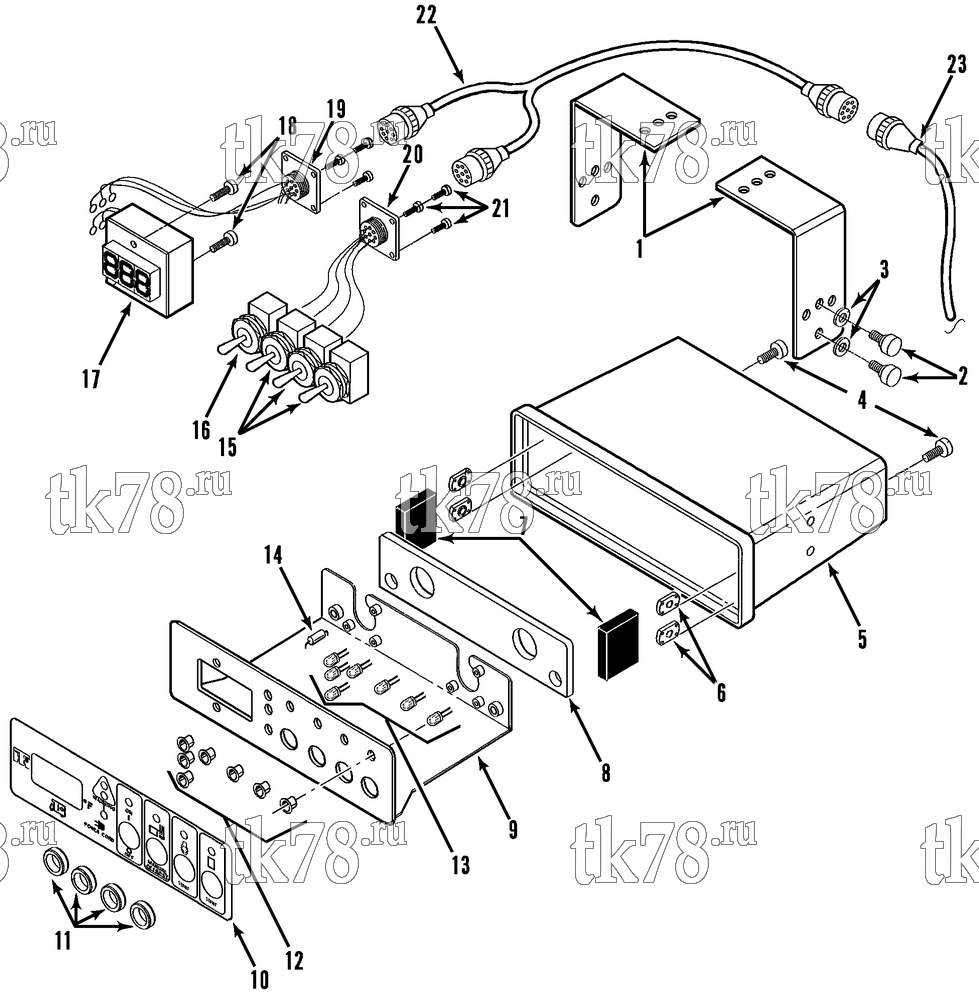

Установкa Thermo King PGM MAX & PGM-II MAX схема REMOTE CONTROL BOX - CAB – 101G8
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-9217 | BOX (complete, 50 units, F) | 1 | ||
| 44-9218 | BOX (complete, 50 units, C) | 1 | ||
| 44-9219 | BOX (complete, 30 units, F) | 1 | ||
| 44-9220 | BOX (complete, 30 units, C) | 1 | ||
| 1 | 91-4308 | BRACKET - box | 1 | |
| 2 | 55-6611 | SCREW - bracket | 4 | |
| 3 | 55-2996 | LOCKWASHER | 4 | |
| 4 | 55-3842 | SCREW - box | 2 | |
| 5 | 91-1824 | BOX - cab control | 1 | |
| 6 | 55-6613 | NUT - weld | 4 | |
| 7 | 99-5966 | STRIP (neoprene, 50 ft) | A/R | |
| 8 | 33-2050 | GASKET - box | 1 | |
| 9 | 91-3345 | BRACKET - box (internal) | 1 | |
| 10 | 91-3346 | NAMEPLATE - box - F | 1 | |
| 91-3347 | NAMEPLATE - box - C | 1 | ||
| 11 | 55-7484 | FACENUT - knurled | 4 | |
| 12 | 44-9224 | RETAINER - LED | 7 | |
| 13 | 44-9221 | DIODE - light emiting (red) | 4 | |
| 44-9222 | DIODE - light emiting (amber) | 2 | ||
| 44-9223 | DIODE - light emiting (green) | 1 | ||
| 14 | 44-9225 | RESISTOR - LED | 7 | |
| 44-6725 | DIODE - LED | 3 | ||
| 15 | 44-1164 | SWITCH - start/choke/defrost | 3 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 16 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 17 | 44-8466 | SENSOR - thermometer (digital) | 1 | |
| 44-8469 | SENSOR - thermometer (digital, F) | 1 | ||
| 44-8468 | SENSOR - thermometer (digital, C) | 1 | ||
| 18 | 55-6612 | SCREW - thermometer | 2 | |
| 19 | 44-9226 | RECEPTACLE (9-pin) | 1 | |
| 20 | 44-8542 | CONNECTOR (8-pin) | 1 | |
| 21 | 55-6549 | SCREW - connector | 6 | |
| 22 | 44-8470 | HARNESS - box cab | 1 | |
| 41-2106 | LOCKRING | 1 | ||
| 44-8537 | CONNECTOR - plug (16-pin) | 1 | ||
| 44-9227 | SOCKET - plug | 16 | ||
| 44-8779 | CLAMP - plug | 1 | ||
| 44-8532 | PLUG (9-pin) | 1 | ||
| 44-8534 | SOCKET - plug | 9 | ||
| 44-8533 | CLAMP - plug | 1 | ||
| 44-8535 | PLUG (8-pin) | 1 | ||
| 44-8536 | PIN - plug | 8 | ||
| 44-8533 | CLAMP - plug | 1 | ||
| 33-2110 | GROMMET | 1 | ||
| 23 | 44-9231 | HARNESS - cab box harness to unit | 1 | |
| 44-8543 | CONNECTOR (16-pin) | 1 | ||
| 44-5719 | CONNECTOR - switch panel (8-pin) | 1 | ||
| 44-5718 | CONNECTOR - main harness (8-pin) | 1 | ||
| 44-5030 | CONNECTOR - option board (6-pin) | 1 | ||
| 44-6451 | CONNECTOR - power harness (1-pin) | 1 | ||
| 44-9569 | CONNECTOR - thermometer sensor (3-pin) | 1 |
