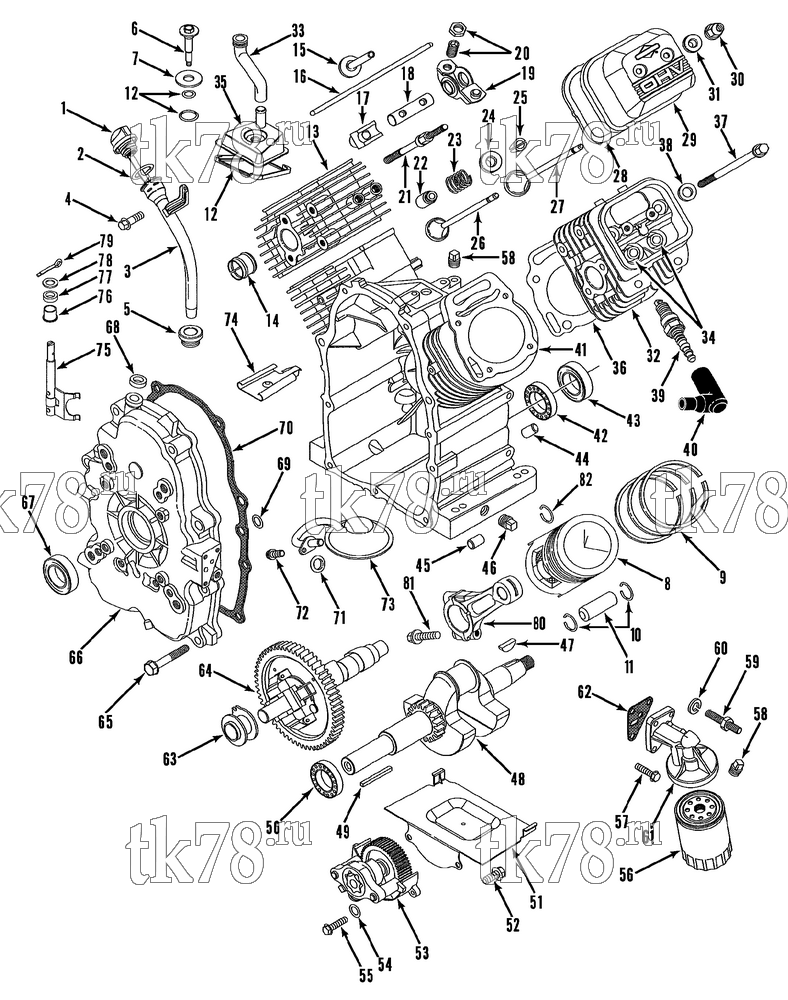

Установкa Thermo King PGM MAX & PGM-II MAX схема CRANKCASE & CYLINDER HEAD GROUP – 101C4
Обновление от: 1/13/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-335 | ENGINE - assembly (complete, incl grids 101C1, 101C2, 101C3, 101C4, 101C5) | 1 | ||
| 1 | 11-7328 | DIPSTICK | 1 | |
| 2 | 33-2131 | O-RING - dipstick | 1 | |
| 3 | 11-7330 | TUBE - oil filler (before 98060100) | 1 | |
| 11-9177 | TUBE - oil filler (98053100 & after) | 1 | ||
| 4 | 55-7115 | SCREW - tube | 1 | |
| 5 | 11-7329 | SEAL - filler tube | 1 | |
| 6 | 55-6877 | SCREW - breather | 1 | |
| 7 | 55-6895 | WASHER | 1 | |
| 8 | 11-7307 | PISTON (standard) | 2 | |
| 11-7308 | PISTON (0.010 os) | 2 | ||
| 11-7309 | PISTON (0.020 os) | 2 | ||
| 11-7310 | PISTON (0.030 os) | 2 | ||
| 9 | 11-7311 | RING SET (standard) | 2 | |
| 11-7312 | RING SET (0.010 os) | 2 | ||
| 11-7313 | RING SET (0.020 os) | 2 | ||
| 11-7314 | RING SET (0.030 os) | 2 | ||
| 10 | 11-7315 | LOCK - piston pin | 4 | |
| 11 | 11-7316 | PIN - piston (incl 82) | 2 | |
| 12 | 30-203 | KIT - gasket (breather) | 1 | |
| 13 | 11-9141 | HEAD - cylinder (#1) | 1 | |
| 14 | 11-7367 | LINER - exhaust port | 2 | |
| 15 | 11-7321 | TAPPET - valve | 4 | |
| 16 | 11-7344 | ROD - push | 4 | |
| 17 | 11-7349 | SUPPORT - rocker arm | 2 | |
| 18 | 11-7348 | SHAFT - rocker arm | 2 | |
| 11-8459 | SUPPORT - rocker arm (94011700 & after) | 2 | ||
| 19 | 10-302 | KIT - rocker arm (before 94011800) | 4 | |
| 20 | 55-6891 | SCREW & NUT - valve adjustment | 4 | |
| 21 | 55-6885 | STUD - rocker arm (before 96040100) | 4 | |
| 55-9197 | STUD - rocker arm (96033100 & after) | 4 | ||
| 22 | 33-2162 | SEAL - valve guide | 4 | |
| 23 | 10-302 | KIT - arm & valve spring (before 94011800) | 4 | |
| 11-8460 | SPRING - valve (96033100 & after) | 2 | ||
| 24 | 11-7319 | RETAINER - valve spring | 4 | |
| 25 | 11-7320 | RETAINER - valve | 4 | |
| 26 | 11-7294 | VALVE - exhaust | 2 | |
| 27 | 11-7295 | VALVE - intake | 2 | |
| 28 | 33-2127 | GASKET - valve cover | 2 | |
| 29 | 11-7342 | COVER - valve | 2 | |
| 30 | 55-6888 | NUT - valve cover | 8 | |
| 31 | 55-6887 | WASHER - valve cover | 8 | |
| 32 | 11-9142 | HEAD - cylinder (#2) | 1 | |
| 33 | 11-7304 | TUBE - breather (before 96101100) | 1 | |
| 11-9136 | TUBE - breather (96101000 & after) | 1 | ||
| 34 | 11-7359 | GUIDE - valve | 4 | |
| 35 | 11-7303 | BREATHER | 1 | |
| 36 | 33-2152 | GASKET - cylinder head (before 96040100) | 2 | |
| 33-3064 | GASKET - cylinder head (96033100 & after) | 2 | ||
| 37 | 55-6878 | SCREW - cylinder head | 8 | |
| 38 | 55-6876 | WASHER - cylinder head | 8 | |
| 39 | 41-585 | PLUG - spark | 2 | |
| 40 | 44-8945 | ELBOW - spark plug | 2 | |
| 41 | 12-576 | CRANKCASE (before 97050100) | 1 | |
| 12-783 | CRANKCASE (97043000 & after) | 1 | ||
| 42 | 77-1998 | BEARING - crankcase | 1 | |
| 43 | 33-2151 | SEAL - oil | 1 | |
| 44 | 11-7339 | DOWEL - cylinder head | 2 | |
| 45 | 11-7338 | DOWEL - crankcase | 2 | |
| 46 | 55-6879 | PLUG - oil drain | 2 | |
| 47 | 55-6881 | KEY - flywheel (before 95022800) | 1 | |
| 55-9198 | KEY - flywheel (95022800 & after) | 1 | ||
| 48 | 12-577 | CRANKSHAFT | 1 | |
| 11-9157 | CRANKSHAFT (97043000 & after) | 1 | ||
| 11-7293 | WASHER - thrust | 2 | ||
| 11-9166 | GEAR - timing | 1 | ||
| 49 | 55-6894 | KEY - pulley | 1 | |
| 50 | 77-1999 | BEARING - ball | 1 | |
| 51 | 11-7318 | PLATE - windage | 1 | |
| 52 | 55-6867 | SCREW - plate | 2 | |
| 53 | 11-7343 | PUMP - oil | 1 | |
| 54 | 33-2158 | O-RING - oil pump | 2 | |
| 55 | 55-6870 | SCREW - oil pump | 2 | |
| 56 | 11-7345 | FILTER - oil (before 95020500) | 1 | |
| 41-2805 | FILTER - oil (95020500 & after) | 1 | ||
| 57 | 55-6873 | SCREW - filter bracket | 2 | |
| 58 | 55-6866 | PLUG - pipe | 2 | |
| 59 | 55-6886 | STUD - oil filter adapter | 2 | |
| 60 | 55-6889 | LOCKWASHER | 4 | |
| 61 | 11-7346 | ADAPTER - oil filter | 1 | |
| 62 | 33-2132 | GASKET - adapter | 1 | |
| 63 | 11-7469 | SLIDER - governor | 1 | |
| 64 | 11-7322 | GEAR - cam | 1 | |
| 65 | 55-6880 | SCREW - crankcase cover | 12 | |
| 66 | 11-7305 | COVER - crankcase (before 97050100) | 1 | |
| 11-9137 | COVER - crankcase (97043000 & after) | 1 | ||
| 67 | 33-2155 | SEAL - oil | 1 | |
| 68 | 11-7335 | WASHER - governor shaft | 1 | |
| 69 | 33-2159 | O-RING - crankcase cover (before 97050100) | 1 | |
| 33-3063 | O-RING - crankcase cover (97043000 & after) | 1 | ||
| 70 | 33-2154 | GASKET - crankcase cover (before 97050100) | 1 | |
| 33-3062 | GASKET - crankcase cover (97043000 & after) | 1 | ||
| 71 | 33-2160 | O-RING - pickup tube | 1 | |
| 72 | 55-7121 | SCREW - pickup tube | 2 | |
| 73 | 11-7327 | SCREEN - oil pump pickup | 1 | |
| 74 | 11-7332 | BAFFLE - breather | 1 | |
| 75 | 11-7333 | FORK - governor | 1 | |
| 76 | 77-2002 | BUSHING - governor shaft | 1 | |
| 77 | 77-2000 | BUSHING - governor shaft | 1 | |
| 78 | 33-2156 | SEAL - governor shaft | 1 | |
| 79 | 55-6869 | PIN - cotter | 1 | |
| 80 | 11-7317 | ROD - connecting (std) | 2 | |
| 11-9155 | ROD - connecting (std, .020 us) | 2 | ||
| 81 | 55-6882 | SCREW - connecting rod | 4 | |
| 30-198 | KIT - gasket (see 101C6) | 1 |
