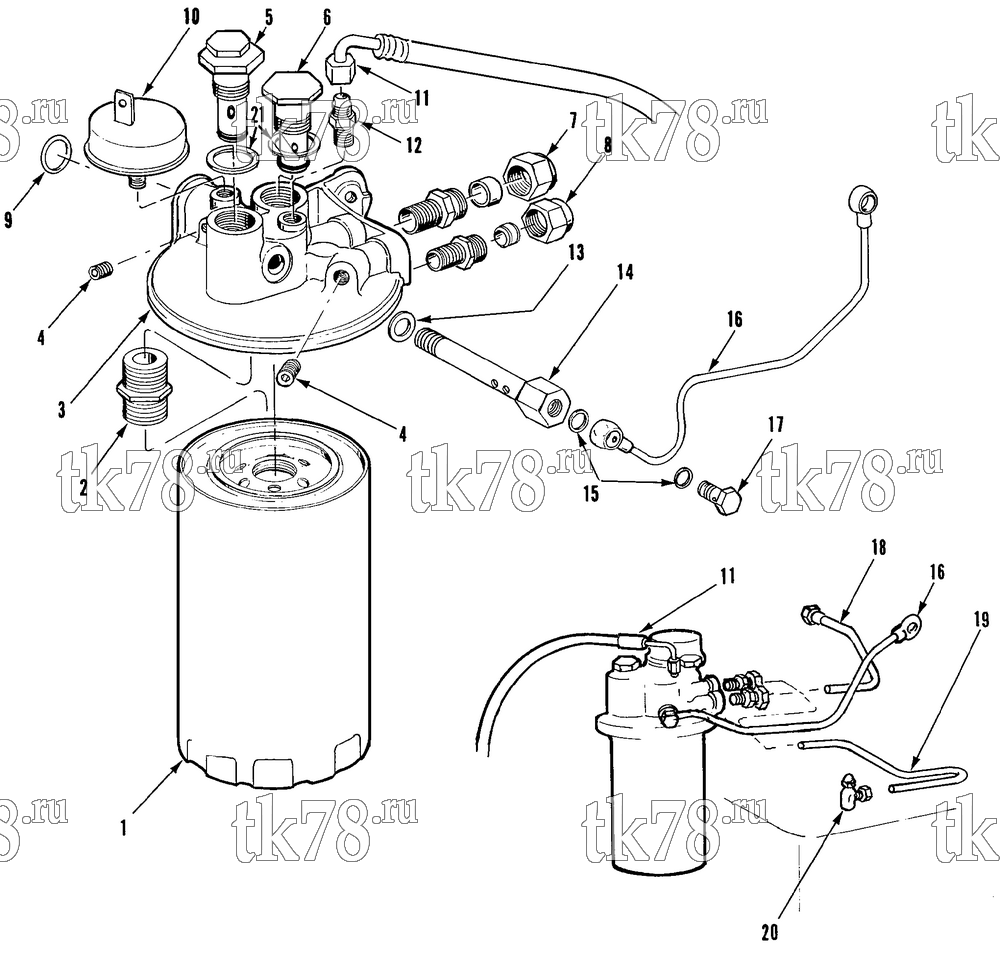

Установкa Thermo King OM636 Engine схема OIL FILTER & TUBE (OM636) – 4F13
Обновление от: 10/5/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9099 | FILTER - oil | 1 | |
|
US-11-9099 | Фильтр масляный, SB-I/II/III | 2 930 ₽ |
|
|
10-11-9099 | Фильтр масляный, SB-I/II/III | 1 260 ₽ |
|
| 2 | 55-3160 | FITTING - oil filter | 1 | |
| 3 | NSS | ADAPTER - oil filter | 1 | |
| 4 | 55-433 | PLUG | 2 | |
| 5 | 11-3863 | VALVE - relief | 1 | |
| 11-3510 | SPRING - relief valve | 1 | ||
| 55-2517 | BALL - relief valve | 1 | ||
| 33-672 | O-RING - relief valve | 1 | ||
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 6 | 11-3864 | VALVE - relief | 1 | |
| 11-3511 | SPRING - relief valve | 1 | ||
| 11-3245 | PISTON - relief valve | 1 | ||
| 55-3135 | RING - retaining | 1 | ||
| 33-672 | O-RING | 1 | ||
|
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 7 | 55-3159 | FITTING - flex | 1 | |
| 8 | 55-3195 | FITTING - flex | 1 | |
| 9 | 33-727 | O-RING | 1 | |
| 10 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 11 | 11-3866 | HOSE - oil pressure gauge (NWD) | 1 | |
| 11-2966 | HOSE - oil pressure gauge (CGS) | 1 | ||
| 12 | 55-459 | COUPLING - hose | 1 | |
| 13 | 55-1536 | RING - sealing | 1 | |
| 14 | 11-3861 | BOLT - hollow (mounting adapter) | 1 | |
| 15 | 55-1156 | RING - sealing (oil line) | 4 | |
| 16 | 11-3531 | LINE - filter to injection pump | 1 | |
| 17 | 55-1204 | SCREW - hollow (line) | 2 | |
| 18 | 11-3860 | TUBE - engine to filter | 1 | |
| 55-2336 | NUT | 1 | ||
| 55-2211 | ADAPTER | 1 | ||
| 55-2208 | WASHER - sealing | 1 | ||
|
10-55-2208 | Шайба уплотнительная | 340 ₽ |
|
| 19 | 11-3865 | TUBE - filter to oil base | 1 | |
| 20 | 55-3161 | ELBOW - oil base | 1 | |
| 55-1983 | CAP - flare fitting | 1 | ||
| 21 | 11-4243 | RING | 2 |
