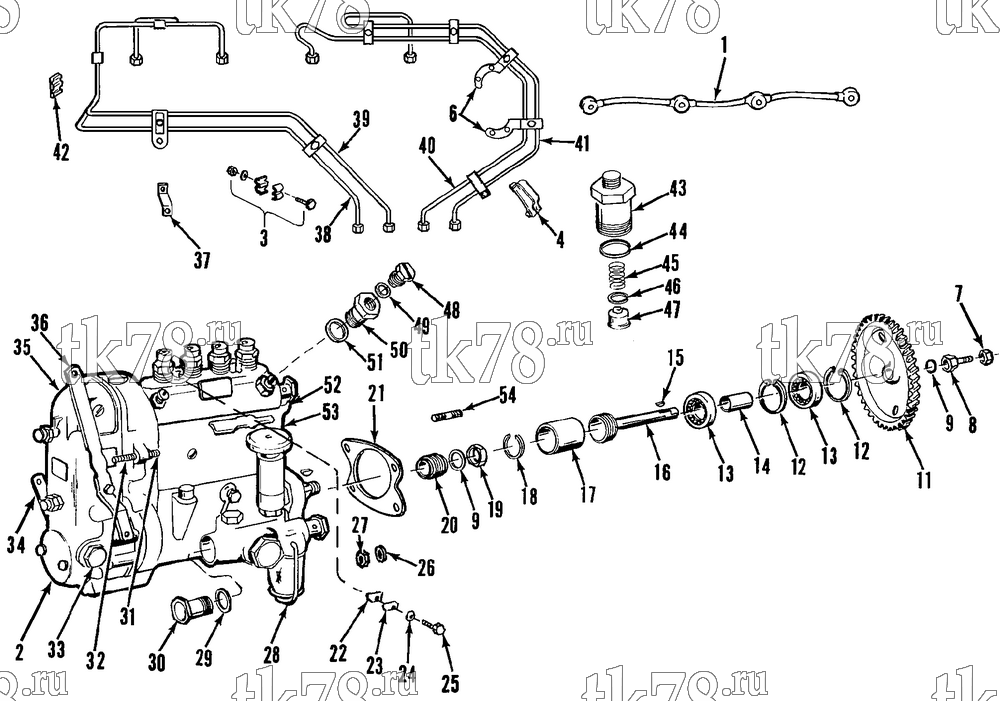

Установкa Thermo King OM636 Engine схема INJECTION PUMP GROUP (OM636) – 4A13
Обновление от: 4/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-2889 | LINE (fuel leak off) | 1 | |
| 2 | 33-684 | GASKET - plate | 1 | |
| 3 | 11-3158 | CLAMP - fuel lines | 9 | |
| 4 | 11-3334 | CLAMP | 1 | |
| 5 | Not Used | |||
| 6 | 11-3163 | SUPPORT - tube (front) | 2 | |
| 7 | 11-3225 | SEAL - tachometer connector | 1 | |
| 8 | 11-1833 | DRIVE - tachometer | 1 | |
| 9 | 55-6283 | LOCKWASHER - spring | 1 | |
| 10 | 11-2562 | SPACER - driveshaft | 1 | |
| 11 | 11-2636 | GEAR - injection pump drive (standard) | 1 | |
| 11-2541 | GEAR - injection pump drive (plus 2) | |||
| 11-2542 | GEAR - injection pump drive (plus 3) | |||
| 11-2562 | GEAR - injection pump drive (plus 4) | |||
| 12 | 11-1673 | CIRCLIP - bearing lock | 2 | |
| 13 | 11-2196 | BEARING - drive shaft | 2 | |
| 14 | 11-1907 | SPACER - bearing | 1 | |
| 15 | 55-1280 | KEY - drive gear & follower | 1 | |
| 16 | 11-1919 | SHAFT - drive | 1 | |
| 17 | 11-1681 | SLEEVE - coupling | 1 | |
| 18 | 11-1937 | CIRCLIP | 1 | |
| 19 | 55-2203 | NUT | 1 | |
| 20 | 11-1678 | FOLLOWER | 1 | |
| 21 | 33-468 | GASKET - mounting | 1 | |
| 22 | 55-1154 | CLAMP (w/ thread) | 2 | |
| 23 | 55-1217 | CLAMP (w/o thread) | 2 | |
| 24 | 55-2855 | LOCKWASHER - spring | 2 | |
| 25 | 55-1155 | SCREW - mounting clamps | 2 | |
| 26 | 55-1164 | WASHER - injection pump mounting | 4 | |
| 27 | 55-1174 | NUT - mounting injection pump | 4 | |
| 28 | 11-2426 | PUMP - fuel (see 4B2) | 1 | |
| 29 | 55-2208 | WASHER - sealing | 6 | |
|
10-55-2208 | Шайба уплотнительная | 340 ₽ |
|
| 30 | 55-1107 | SCREW - hollow (suction & pressure lines) | 2 | |
| 55-1208 | SCREW - hollow (hand pump) | 1 | ||
| 31 | 55-1335 | NUT - throttle stop screw | 1 | |
| 32 | 11-1859 | SCREW - throttle stop | 1 | |
| 33 | 55-1494 | GASKET - drain plug | 1 | |
| 34 | 11-4581 | ARM - fuel shutoff | 1 | |
| 35 | 101-217 | PUMP - injection | 1 | |
| 36 | 11-2963 | ARM - throttle | 1 | |
| 11-2987 | BUSHING | 2 | ||
| 33-676 | GASKET | 2 | ||
| 33-677 | GASKET | 2 | ||
| 55-1872 | WASHER | 1 | ||
| 37 | 55-2194 | SUPPORT - tube | 1 | |
| 38 | 11-3162 | LINE - pressure (cylinder # 4) | 1 | |
| 39 | 11-3161 | LINE - pressure (cylinder # 3) | 1 | |
| 40 | 11-3160 | LINE - pressure (cylinder # 2) | 1 | |
| 41 | 11-3159 | LINE - pressure (cylinder # 1) | 1 | |
| 42 | 11-3164 | PAD - pressure line (rubber) | 1 | |
| 43 | 11-1845 | HOLDER (old style, screw in delivery valve) | 4 | |
| 11-3899 | HOLDER (new style, drop in delivery valve) | 4 | ||
| 44 | 11-1582 | GASKET - delivery valve (old style, screw in type) | 4 | |
| 33-999 | O-RING (in delivery valve, new style, drop in type) | 4 | ||
| 45 | 11-1889 | SPRING (screw in delivery valve) | 4 | |
| 11-3898 | SPRING (drop in delivery valve) | 4 | ||
| 46 | 33-999 | GASKET (drop in delivery valve only) | 4 | |
| 47 | 11-1892 | VALVE (delivery screw in type) | 4 | |
| 11-3897 | VALVE (delivery drop in type) | 4 | ||
| 48 | 55-1869 | SCREW - vent | 1 | |
| 49 | 55-1494 | GASKET | ||
| 50 | 55-1866 | BUSHING - vent screw | 1 | |
| 51 | 55-1994 | WASHER - vent screw bushing (copper) | 1 | |
| 52 | 33-559 | GASKET - inspection cover | 1 | |
| 53 | 11-2252 | COVER - inspection (incl 51) | 1 | |
| 54 | 55-1127 | STUD - mounting injection pump to engine | 1 |
