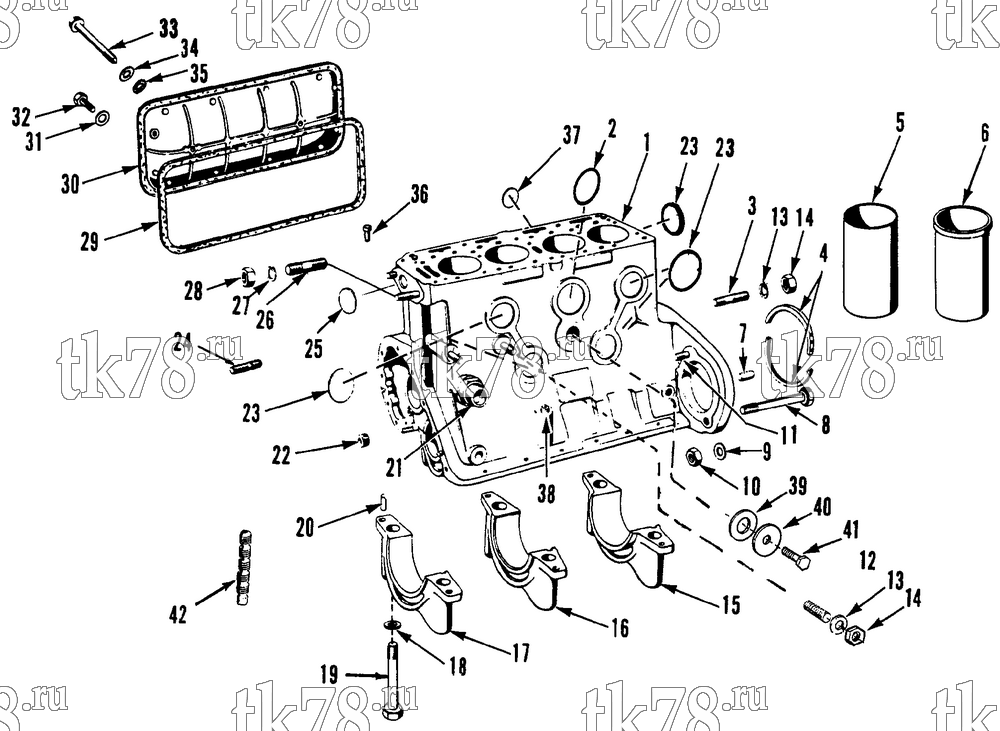

Установкa Thermo King OM636 Engine схема CRANKCASE GROUP (OM636) – 3B3
Обновление от: 8/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-210 | ENGINE - assembly (see note) | 1 | ||
| 101-197 | BLOCK (semi, with cylinder head cover, 18 qt oil base, less other external accessories) | 1 | ||
| 101-194 | SHORT BLOCK - assembly | 1 | ||
| 1 | 12-341 | CRANKCASE | 1 | |
| 2 | 11-1593 | PLUG - core (crankcase) | 1 | |
| 3 | 55-1159 | STUD - flywheel housing | 7 | |
| 4 | 11-1849 | HOLDER - rear crankcase oil seal | 2 | |
| 5 | 11-7208 | LINER - cylinder (w/o collar) | 4 | |
| 6 | 11-2111 | LINER - cylinder (w/ collar) | 4 | |
| 7 | 55-1724 | PIN - dowel (11/32 x 3/4) | 2 | |
| 55-1258 | PIN - dowel (3/8 x 3/4) | 2 | ||
| 8 | 55-1735 | SCREW - starter | 1 | |
| 9 | 55-375 | LOCKWASHER | 1 | |
| 10 | 55-2488 | NUT - captive | 1 | |
| 11 | 55-1163 | STUD - starter | 1 | |
| 55-1173 | LOCKWASHER | 1 | ||
| 55-1174 | NUT | 1 | ||
| 12 | 55-1172 | STUD - alternator bracket | 2 | |
| 13 | 55-1173 | LOCKWASHER | 6 | |
| 14 | 55-1176 | NUT | 6 | |
| 15 | NSS | CAP - crankshaft bearing (flywheel side) | 1 | |
| 16 | NSS | CAP - crankshaft bearing (center) | 1 | |
| 17 | NSS | CAP - crankshaft bearing (water pump side) | 1 | |
| 18 | 55-1129 | LOCKWASHER - bearing cap | 6 | |
| 19 | 55-1128 | SCREW - bearing cap | 6 | |
| 20 | 11-1848 | PIN - bearing cap | 6 | |
| 21 | 55-1167 | ADAPTER - water inlet | 1 | |
| 55-1146 | RING - sealing adapter | 1 | ||
| 22 | 55-1144 | SCREW - sealing | 2 | |
| 55-2522 | PLUG - sealing (crankcase oil duct) | 4 | ||
| 23 | 11-1596 | PLUG - core (crankcase) | 5 | |
| 24 | 55-1127 | STUD - injection pump | 4 | |
| 25 | 11-1676 | PLUG - core (crankcase front) | 1 | |
| 26 | 55-3087 | STUD - fanshaft bracket | 2 | |
| 27 | 55-6283 | LOCKWASHER - spring | 2 | |
| 28 | 55-2203 | NUT | 2 | |
| 29 | 33-374 | GASKET - push rod chamber cover | 1 | |
| 30 | 11-3173 | COVER - push rod chamber | 1 | |
| 31 | 55-1119 | WASHER - sealing | 1 | |
| 32 | 55-1169 | SCREW | 1 | |
| 33 | 55-1170 | SCREW - rod | 2 | |
| 34 | 55-1160 | FLATWASHER | 17 | |
| 35 | 55-1175 | WASHER - sealing | 4 | |
| 36 | 55-1171 | PIN - dowel (cylinder head) | 2 | |
| 37 | 11-1591 | PLUG - core (oil pump drive side) | 1 | |
| 38 | 55-1820 | PLUG | 1 | |
| 39 | 33-464 | GASKET - breather | 1 | |
| 40 | 55-3298 | WASHER - plug | 1 | |
| 55-2261 | WASHER (copper) | 1 | ||
| 41 | 55-5406 | SCREW - vent plug | 1 | |
| 42 | 55-2522 | PLUG | 1 | |
| 30-144 | KIT - engine overhaul gasket set | 1 |
