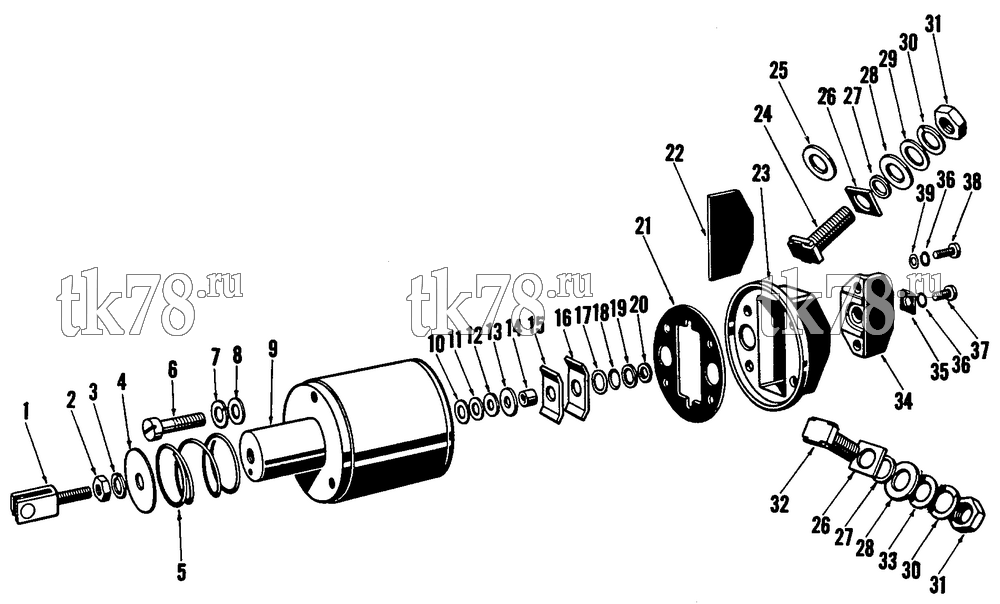

Установкa Thermo King OM636 Engine схема STARTER SOLENOID ASSEMBLY – 15A11
Обновление от: 11/22/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-1770 | SOLENOID - starter (assembly) | 1 | ||
| 1 | 44-1677 | FORK (w/ pin, new style) | 1 | |
| 44-2435 | FORK (w/ pin, old style) | 1 | ||
| 2 | 55-1568 | NUT - locking | 1 | |
| 3 | 55-1567 | LOCKWASHER | 1 | |
| 4 | 44-2613 | DISC - retaining | 1 | |
| 5 | 44-1914 | SPRING - armature return | 1 | |
| 6 | 55-1828 | SCREW | 3 | |
| 7 | 55-1829 | LOCKWASHER | 3 | |
| 8 | 55-1830 | WASHER - plain | 3 | |
| 9 | 44-2512 | ARMATURE (w/ shaft) | 1 | |
| 10 | 44-1869 | SHIM (0.004) | A/R | |
| 44-2487 | SHIM (0.008) | A/R | ||
| 11 | 55-1979 | WASHER | 1 | |
| 12 | 55-1995 | WASHER | 1 | |
| 13 | 55-1980 | WASHER - insulating | 1 | |
| 14 | 44-1553 | BUSHING | 1 | |
| 15 | 44-1545 | PLATE - backing | 1 | |
| 16 | 44-1763 | BRIDGE - contact | 1 | |
| 17 | 55-2003 | WASHER | 1 | |
| 18 | 55-1986 | WASHER - spring | 1 | |
| 19 | 44-1760 | WASHER - insulating | 1 | |
| 20 | 55-1987 | WASHER - plain | 1 | |
| 21 | 33-597 | GASKET (rubber) | 1 | |
| 22 | 44-1909 | PLATE - insulating | 2 | |
| 23 | 44-1509 | COVER - assembly (new style) | 1 | |
| 04-4716 | COVER (old style) | 1 | ||
| 24 | 44-1602 | BOLT - contact (long) | 1 | |
| 25 | 44-1788 | SHIM | A/R | |
| 26 | 44-1554 | PLATE - insulating | 2 | |
| 27 | 44-1600 | BUSHING - insulating | 2 | |
| 28 | 44-1544 | WASHER - insulating | 2 | |
| 29 | 55-1825 | WASHER - plain | 1 | |
| 30 | 55-1824 | LOCKWASHER | 2 | |
| 31 | 55-1575 | NUT | 3 | |
| 32 | 44-1552 | BOLT - contact (short) | 1 | |
| 33 | 55-2111 | WASHER | 1 | |
| 34 | 44-2201 | BLOCK - terminal | 1 | |
| 35 | 44-1501 | PLATE | 1 | |
| 36 | 55-1570 | LOCKWASHER | 5 | |
| 37 | 55-1569 | SCREW - terminal | 1 | |
| 38 | 55-1626 | SCREW | 2 | |
| 39 | 55-2312 | WASHER | 2 |
