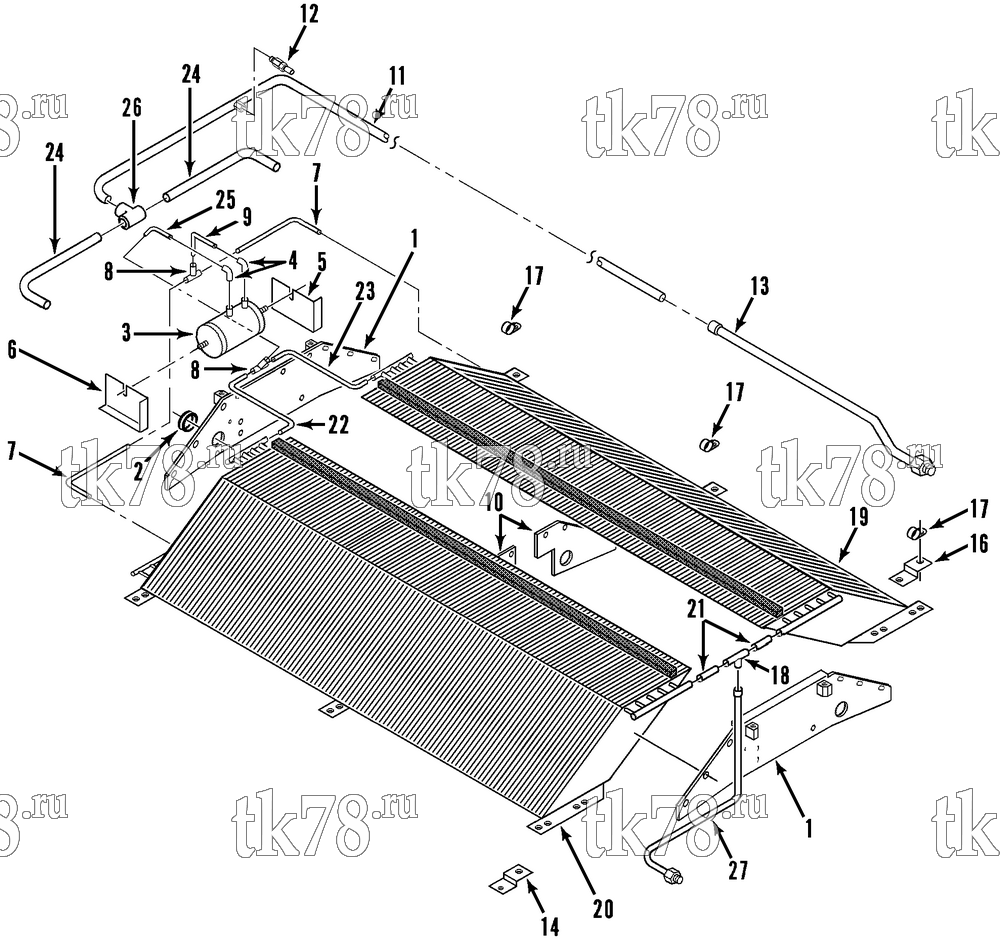

Установкa Thermo King NSD-II схема REFRIGERATION - CONDENSER (NSD-II M2) – 110D3
Обновление от: 7/8/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4470 | BRACKET - coil (front) | 1 | |
| 55-2957 | SCREW - coil to bracket | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4414 | WASHER - special | 6 | ||
| 55-6526 | INSERT - threaded | 6 | ||
| 2 | 33-1371 | GROMMET | 2 | |
| 3 | 67-1062 | TANK - receiver | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-4931 | WASHER - special | 2 | ||
| 4 | 55-1464 | ELBOW | 2 | |
| 5 | 91-3729 | BRACKET - receiver tank (curbside) | 1 | |
| 6 | 91-3730 | BRACKET - receiver tank (roadside) | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 2 | ||
| 7 | 66-6807 | TUBE - coil to tee | 1 | |
| 8 | 55-2296 | TEE | 3 | |
| 9 | 66-6808 | TUBE - tee to receiver | 1 | |
| 10 | 98-4341 | SUPPORT - coil (center) | 2 | |
| 55-2957 | SCREW - support | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4414 | WASHER - special | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 11 | 66-6809 | TUBE - liquid | 1 | |
| 55-7535 | FITTING - saddle | 1 | ||
| 12 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 66-6810 | TUBE - liquid | 1 | |
| 55-5938 | SHOULDER - o-ring | 1 | ||
| 55-5936 | NUT | 1 | ||
| 14 | 91-3731 | BRACKET - tube | 1 | |
| 55-3207 | SCREW - bracket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4955 | NUT | 1 | ||
| 15 | 66-6811 | TUBE - fitting to coil | 1 | |
| 55-6839 | SLEEVE - adapter | 1 | ||
| 55-6396 | NUT | 1 | ||
| 16 | 91-3726 | BRACKET - tube | 1 | |
| 55-3089 | SCREW - bracket | 1 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2114 | NUT | 1 | ||
| 17 | 55-7536 | CLAMP - tube | 3 | |
| 55-2963 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 18 | 55-2950 | TEE | 1 | |
| 19 | 67-1060 | COIL - condenser (curbside) | 1 | |
| 20 | 67-1061 | COIL - condenser (roadside) | 1 | |
| 55-2963 | SCREW - coil | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 21 | 66-6812 | TUBE - coil to tee | 2 | |
| 22 | 66-6813 | TUBE - coil to tee | 1 | |
| 23 | 66-6814 | TUBE - coil to tee | 1 | |
| 24 | 66-6838 | TUBE - evaporator to tee | 1 | |
| 25 | 66-6850 | TUBE - tank to tee | 1 | |
| 26 | 55-2950 | TEE | 1 | |
| 27 | 98-4342 | BRACKET - coil (rear) | 1 | |
| 55-2957 | SCREW - coil to bracket | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4414 | WASHER - special | 6 | ||
| 55-6526 | INSERT - threaded | 6 |
