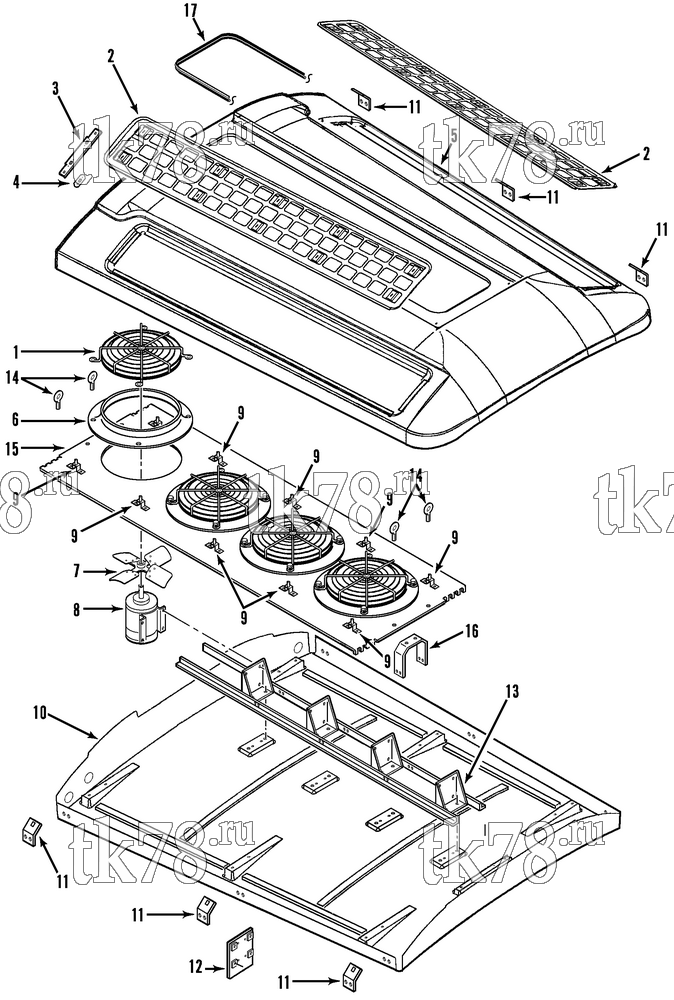

Установкa Thermo King NSD-II схема CONDENSER ASSEMBLY (NSD-II M2) – 110C14
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5917 | GUARD - fan | 4 | |
| 55-2979 | SCREW - guard & orifice | 16 | ||
| 55-4414 | WASHER - special | 16 | ||
| 55-405 | WASHER - dome | 16 | ||
| 55-6526 | INSERT - threaded | 16 | ||
| 2 | 98-4332 | PANEL - grille | 2 | |
| 55-2782 | SCREW - panel | 20 | ||
| 55-7112 | WASHER - split | 20 | ||
| 3 | 91-4644 | STRAP - condenser grille | 10 | |
| 55-1587 | SCREW - strap | 20 | ||
| 55-2086 | FLATWASHER | 80 | ||
| 55-4953 | NUT | 20 | ||
| 4 | 55-2074 | NUT - speed | 20 | |
| 55-3044 | RIVET | 40 | ||
| 5 | 98-4333 | COVER - condenser | 1 | |
| 55-1587 | SCREW - cover | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-4414 | WASHER - special | 16 | ||
| 55-4953 | NUT | 16 | ||
| 6 | 98-4334 | RING - inlet | 4 | |
| 7 | 78-859 | FAN - condenser | 4 | |
| 8 | 104-542 | MOTOR - condenser | 4 | |
| 55-3490 | SCREW - motor | 16 | ||
| 55-4727 | FLATWASHER | 32 | ||
| 55-4954 | NUT | 16 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 4 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 8 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 8 | ||
| 9 | 91-4645 | BRACKET - cover | 10 | |
| 55-2988 | RIVET - bracket | 20 | ||
| 10 | 98-4335 | BASE - condenser | 1 | |
| 91-5150 | NUTSTRIP (4.25 hole, center) | 4 | ||
| 91-1095 | NUTSTRIP (4.88 hole, center) | 6 | ||
| 91-3724 | NUTSTRIP (12.0 hole, center) | 1 | ||
| 55-3044 | RIVET - nutstrip | 22 | ||
| 11 | 91-4646 | BRACKET - latch | 6 | |
| 55-3059 | NUT - captive | 6 | ||
| 55-3018 | SCREW - bracket | 12 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 12 | ||
| 55-3028 | WASHER - sealing | 12 | ||
| 55-4953 | NUT | 12 | ||
| 12 | 91-3979 | PLATE - motor support | 4 | |
| 13 | 98-4336 | SUPPORT - motor | 1 | |
| 55-3490 | SCREW - support | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4012 | WASHER - special | 8 | ||
| 14 | 91-4647 | BOLT - lifting | 4 | |
| 55-4954 | NUT - lifting bolt | 4 | ||
| 15 | 98-4337 | COVER - condenser coil | 1 | |
| 55-5639 | SCREW - cover | 16 | ||
| 55-2977 | SCREW - cover & strip | 6 | ||
| 55-3045 | WASHER - dome | 6 | ||
| 55-4414 | WASHER - special | 6 | ||
| 16 | 91-4648 | STRAP - condenser cover | 3 | |
| 55-2977 | SCREW - strap | 12 | ||
| 55-4414 | WASHER - special | 24 | ||
| 55-405 | WASHER - dome | 12 | ||
| 17 | 303-177 | GASKET - bulb | 1 |
