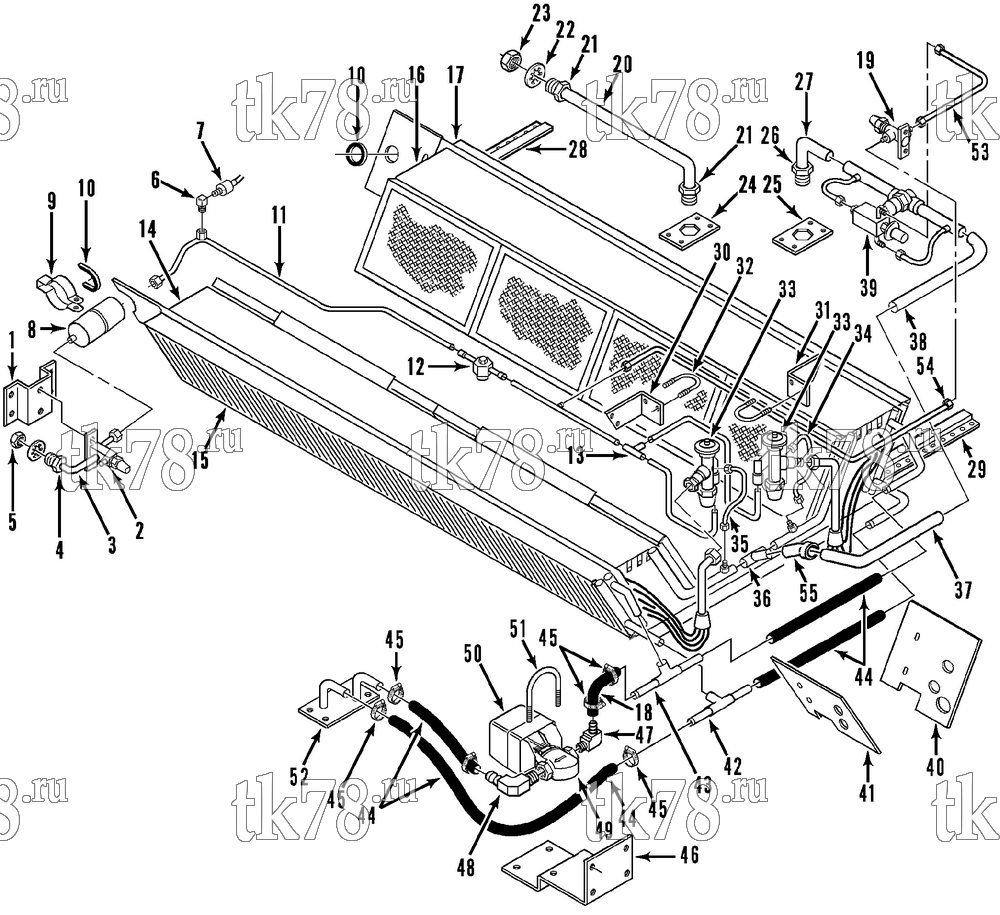

Установкa Thermo King NSD-II схема REFRIGERATION - EVAPORATOR (NSD-II M1) – 104C4
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3750 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 2 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-2995 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 3 | 66-6344 | TUBE - fitting to valve | 1 | |
| 4 | 55-7064 | ADAPTER (#10) | 1 | |
| 5 | 55-6811 | NUT - bulkhead | 1 | |
| 6 | 55-1653 | ELBOW | 1 | |
| 7 | 44-6427 | SWITCH - hpco | 1 | |
| 8 | 66-4857 | DEHYDRATOR | 1 | |
| 9 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-3462 | SCREW (2 in lg) | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1587 | SCREW (3/4 in lg) | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1801 | NUT | 2 | ||
| 10 | 98-1201 | TUBING | A/R | |
| 11 | 66-6345 | TUBE - liquid | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 12 | 66-1188 | INDICATOR - liquid | 1 | |
| 13 | 55-6218 | TEE | 1 | |
| 14 | 67-1063 | COIL - evaporator (curbside) | 1 | |
| 15 | 67-1064 | COIL - heater (curbside) | 1 | |
| 16 | 67-1065 | COIL - evaporator (roadside) | 1 | |
| 17 | 67-1066 | COIL - heater (roadside) | 1 | |
| 91-3749 | PLATE - heater (top) | 2 | ||
| 55-3027 | SCREW - heater to evaporator | 28 | ||
| 55-2001 | FLATWASHER | 56 | ||
| 55-4560 | NUT | 28 | ||
| 18 | 11-7737 | HOSE | 1 | |
| 19 | 66-992 | VALVE - shutoff | 1 | |
| 20 | 66-6342 | TUBE - discharge fitting to fitting | 1 | |
| 21 | 66-6840 | ADAPTER (#16) | 2 | |
| 22 | 55-5741 | LOCKWASHER (#16) | 2 | |
| 23 | 55-5740 | NUT | 2 | |
| 24 | 91-3734 | PLATE - fitting (#16) | 1 | |
| 25 | 91-3733 | PLATE - fitting | 1 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 26 | 55-7537 | ADAPTER (#20) | 1 | |
| 55-5739 | NUT (#20) | 1 | ||
| 55-5742 | LOCKWASHER (#20) | 1 | ||
| 27 | 66-6816 | TUBE - suction | 1 | |
| 28 | 91-3743 | BRACKET - coil (drier end) | 1 | |
| 29 | 91-3742 | BRACKET - coil (expansion valve) | 1 | |
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT - coil to bracket | 8 | ||
| 55-2963 | SCREW - bracket | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 30 | 91-3746 | BRACKET - expansion valve (roadside) | 1 | |
| 31 | 91-3747 | BRACKET - expansion valve (curbside) | 1 | |
| 32 | 55-5211 | U-BOLT | 2 | |
| 55-4560 | NUT | 4 | ||
| 33 | 66-6333 | VALVE - expansion | 2 | |
| 61-812 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 34 | 66-6331 | TUBE - equalizer (curbside) | 1 | |
| 35 | 66-6332 | TUBE - equalizer (roadside) | 1 | |
| 36 | 55-6508 | TEE | 1 | |
| 37 | 66-6842 | TUBE - tee to epr valve | 1 | |
| 38 | 66-6821 | TUBE - suction | 1 | |
| 39 | 66-6412 | VALVE - epr (see 103E14) | 1 | |
| 40 | 91-3744 | PANEL - curbside | 1 | |
| 41 | 91-3745 | PANEL - roadside | 1 | |
| 42 | 66-6338 | TUBE - heater inlet | 1 | |
| 43 | 66-6339 | TUBE - heater outlet | 1 | |
| 44 | 91-4203 | HOSE - water | 4 | |
| 45 | 55-1521 | CLAMP - hose | 10 | |
| 46 | 91-3754 | BRACKET - valve | 1 | |
| 47 | 55-6485 | FITTING - hose | 1 | |
| 48 | 55-6488 | FITTING - hose (elbow) | 1 | |
| 49 | 41-3754 | VALVE - actuator | 1 | |
| 50 | 41-3754 | VALVE - actuator | 1 | |
| 51 | 55-4899 | CLAMP - valve | 1 | |
| 52 | 91-3735 | PLATE - bulkhead | 1 | |
| 55-1587 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 53 | 66-6594 | TUBE - valve | 1 | |
| 54 | 66-6595 | TUBE - valve | 1 | |
| 55 | 55-7159 | ELBOW | 1 |
