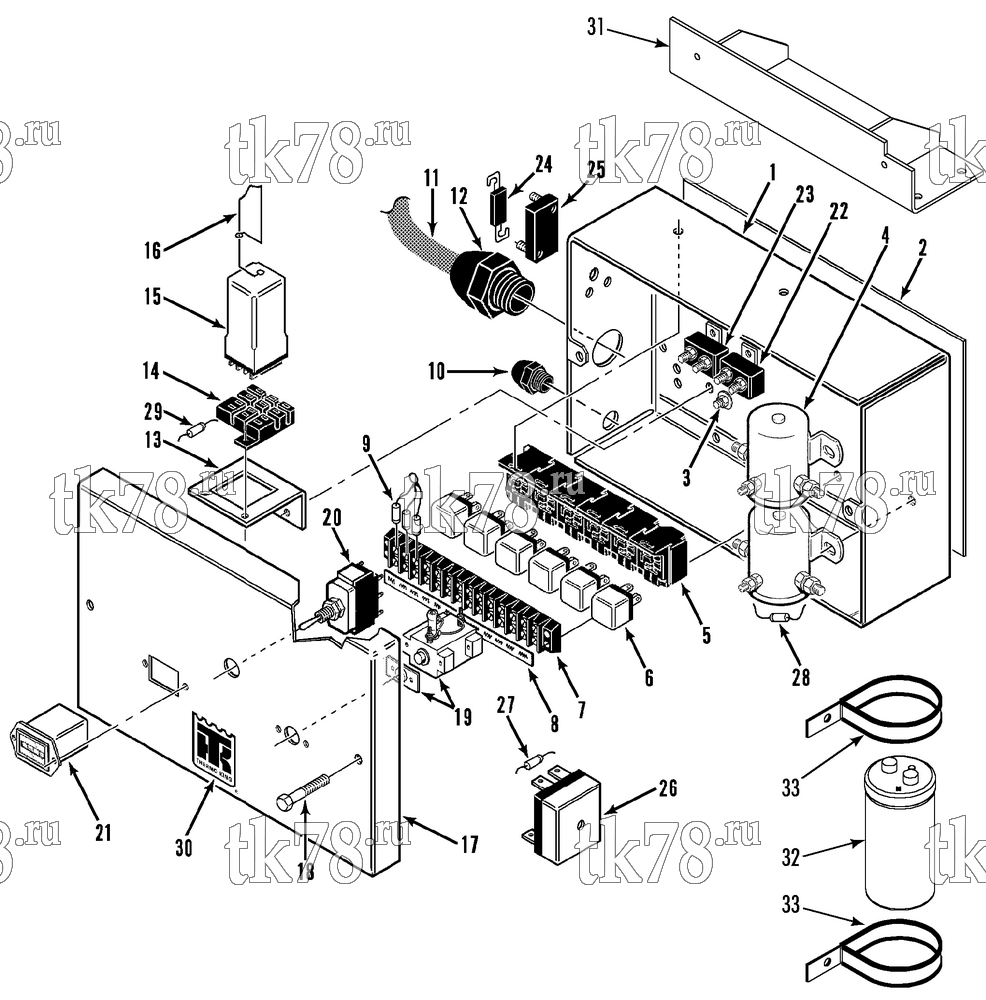

Установкa Thermo King NSD-II M3 Series схема POWER PACK CONTROL BOX – 132E4
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6722 | BOX - control | 1 | |
| 2 | 91-5157 | PLATE - rear | 1 | |
| 55-2995 | SCREW - plate | 10 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-2965 | NUT | 10 | ||
| 3 | 55-3000 | SCREW - ground | 2 | |
| 55-3496 | LOCKWASHER (internal/external) | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 2 | ||
| 4 | 41-3987 | SOLENOID (24VDC) | 2 | |
| 55-3018 | SCREW - solenoid | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-2993 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 5 | 44-5537 | SOCKET - relay | 6 | |
| 55-2995 | SCREW - socket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 6 | 41-896 | RELAY - mini | 6 | |
| 7 | 44-4551 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 8 | 91-7374 | MARKSTRIP | 1 | |
| 9 | 44-8765 | DIODE - assy | 3 | |
| 44-4776 | DIODE | 1 | ||
| 10 | 55-6153 | CONNECTOR - liquid tite | 1 | |
| 55-5021 | LOCKNUT | 1 | ||
| 11 | 41-1625 | HARNESS - main control (for connectors see 115D14 & 112D9) | 1 | |
| 12 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-5018 | LOCKNUT | 1 | ||
| 13 | 91-1243 | BRACKET - relay socket | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 14 | 44-3184 | SOCKET - relay | 2 | |
| 55-2270 | RIVET - spring & socket | 4 | ||
| 15 | 44-9918 | SWITCH - starter lockout | 1 | |
| 16 | 99-8475 | HOLDDOWN - spring | 1 | |
| 55-2771 | CLAMP - speednut | 1 | ||
| 17 | 91-2270 | COVER - control box | 1 | |
| 99-7246 | STRIP - gasket (25 ft) | A/R | ||
| 18 | 55-2957 | SCREW - cover | 2 | |
| 55-2993 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4510 | WASHER - retaining | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 19 | 44-1390 | SWITCH - high temperature cutout | 1 | |
| 40-1082 | SWITCH - only | 1 | ||
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1376 | RESISTOR - switch | 1 | ||
| 44-2119 | SEAL - pushbutton | 1 | ||
| 55-3022 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-4510 | WASHER - retaining | 2 | ||
| 20 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 44-739 | BOOT - switch | 1 | ||
| 21 | 44-5703 | HOURMETER | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 55-3256 | SCREW - hourmeter | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 22 | 44-3753 | BREAKER - circuit (15 amp) | 1 | |
| 23 | 44-3616 | BREAKER - circuit (10 amp) | 1 | |
| 55-2995 | SCREW - circuit breaker | 2 | ||
| 55-2965 | NUT | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 24 | 44-8709 | FUSE | 1 | |
| 25 | 44-8708 | HOLDER - fuse | 1 | |
| 55-3564 | SCREW - fuse holder | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 4 | ||
| 26 | 44-6428 | TIMER | 1 | |
| 55-5070 | SCREW - timer | 1 | ||
| 55-2998 | LOCKWASHER | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 1 | ||
| 27 | 41-728 | RESISTOR (1M ohm) | 1 | |
| 28 | 44-6007 | DIODE - assy | 2 | |
| 44-3400 | DIODE | 1 | ||
| 29 | 41-437 | RESISTOR (47K ohm) | 1 | |
| 30 | 91-456 | NAMEPLATE - cover | 1 | |
| 31 | 92-5659 | BRACKET - power pack | 1 | |
| 32 | 44-4055 | CAPACITOR | 1 | |
| 33 | 55-6808 | CLAMP (2.00 in dia) | 2 |
