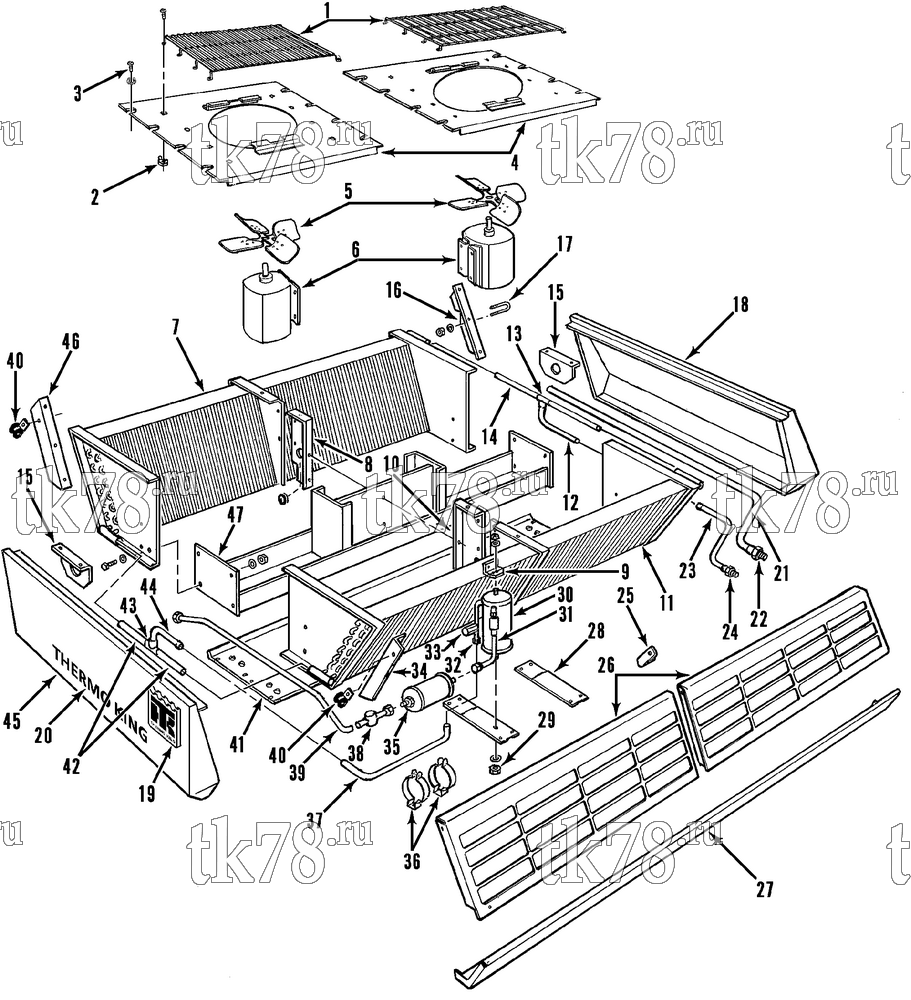

Установкa Thermo King NSD-I схема CONDENSER SECTION COMPONENTS (R12) – 66C5
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2122 | SCREEN | 2 | |
| 2 | 55-2977 | SCREW - screen | 16 | |
| 55-3059 | NUT - captive | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 3 | 55-1587 | SCREW - orifice | 16 | |
| 55-3045 | WASHER - dome | 16 | ||
| 4 | 98-2430 | ORIFICE | 2 | |
| 5 | 78-423 | FAN - condenser | 2 | |
| 55-2977 | SCREW - fan | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-2477 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 6 | 104-511 | MOTOR - condenser fan | 2 | |
| 77-1302 | BEARING - motor (front, brush end) | 1 | ||
| 77-1305 | BEARING - motor (rear, shaft end) | 1 | ||
| 44-5416 | BRUSH (set) | 1 | ||
| 33-1370 | SEAL - shaft | 1 | ||
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | FLATWASHER | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | LOCKNUT | 8 | ||
| 7 | 67-736 | COIL - condenser (front) | 1 | |
| 8 | 99-6925 | BRACKET - coil (front) | 1 | |
| 9 | 99-6930 | BRACKET - receiver tank | 1 | |
| 10 | 99-8063 | BRACKET - coil (rear) | 1 | |
| 11 | 67-735 | COIL - condenser (rear) | 1 | |
| 55-1587 | SCREW - coil (3/4 in) | 4 | ||
| 55-2977 | SCREW - coil (1 in) | 2 | ||
| 55-4953 | LOCKNUT | 6 | ||
| 12 | 66-4259 | TUBE - inlet | 1 | |
| 13 | 55-5401 | TEE | 1 | |
| 14 | 66-4260 | TUBE - header inlet | 2 | |
| 15 | 99-6972 | BRACKET - lifting eye | 1 | |
| 16 | 99-8066 | ANGLE - suction line | 1 | |
| 17 | 55-3009 | U-BOLT - suction line | 1 | |
| 18 | 98-2432 | PANEL - right side | 1 | |
| 99-8067 | ANGLE - panel | 1 | ||
| 19 | 91-4253 | NAMEPLATE - TK Logo | 1 | |
| 20 | 99-9261 | NAMEPLATE - Thermo King | 1 | |
| 21 | 66-4266 | TUBE - evaporator outlet | 1 | |
| 55-1241 | CLAMP - tube | 1 | ||
| 22 | 55-4185 | ADAPTER - suction tube | 1 | |
| 33-544 | O-RING - adapter | 1 | ||
| 23 | 66-4267 | TUBE - condenser inlet | 1 | |
| 24 | 55-5402 | ADAPTER - discharge tube | 1 | |
| 33-594 | O-RING - adapter | 1 | ||
| 55-1705 | CLAMP - discharge tube | 2 | ||
| 55-3018 | SCREW - clamp | 3 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-4953 | NUT | 3 | ||
| 25 | 99-6932 | BRACKET - grille | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-4953 | NUT | 2 | ||
| 26 | 98-2434 | GRILLE | 2 | |
| 27 | 98-2435 | PANEL - bottom | 1 | |
| 28 | 99-8069 | BRACKET - receiver/grille | 2 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 29 | 55-4954 | NUT - receiver | 2 | |
| 55-2958 | FLATWASHER | 4 | ||
| 30 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 31 | 66-3743 | TUBE - receiver to dehydrator | 1 | |
| 32 | 66-4261 | TUBE - receiver inlet | 1 | |
| 33 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 34 | 99-8065 | ANGLE - liquid line bracket | 1 | |
| 35 | 66-4857 | DEHYDRATOR | 1 | |
| 36 | 55-2365 | HANGER - dehydrator | 2 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-2979 | SCREW - dehydrator | 2 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 37 | 66-3744 | TUBE - receiver inlet | 1 | |
| 38 | 66-2047 | INDICATOR - liquid | 1 | |
| 39 | 66-3745 | TUBE - liquid | 1 | |
| 40 | 55-549 | CLAMP - tube | 2 | |
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 41 | 98-2771 | PLATE - coil (bottom) | 1 | |
| 55-2977 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4415 | NUT - captive | 4 | ||
| 42 | 66-4258 | TUBE - header outlet | 2 | |
| 43 | 55-3127 | TEE | 1 | |
| 44 | 66-4257 | TUBE - outlet | 1 | |
| 45 | 98-2433 | PANEL - left side | 1 | |
| 46 | 99-8064 | ANGLE - bracket | 1 | |
| 47 | 98-2431 | BASE - condenser motor | 1 | |
| 55-2969 | SCREW - base to coil | 8 | ||
| 55-4954 | LOCKNUT | 8 |
