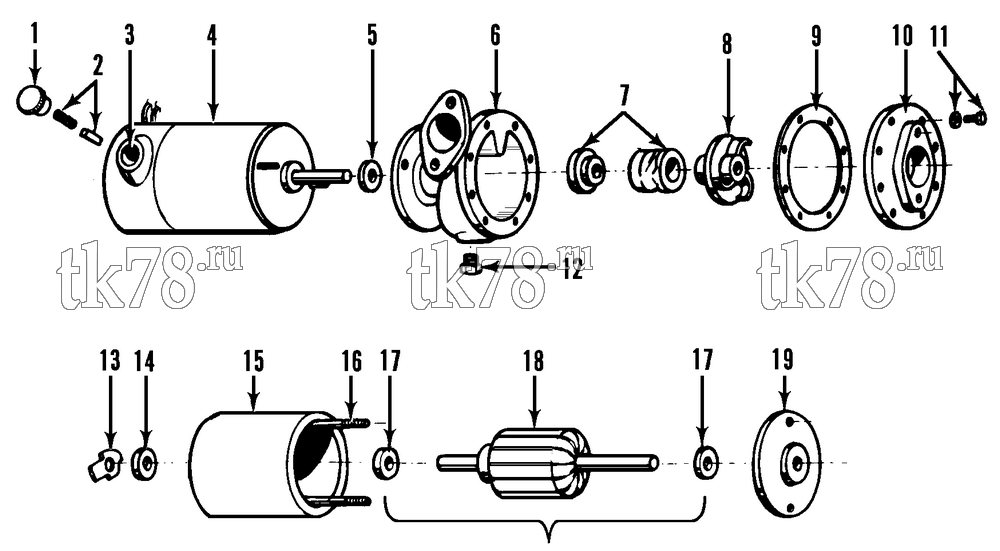

Установкa Thermo King NSD-I схема PUMP & MOTOR ASSEMBLY – 54G8
Обновление от: 6/23/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-789 | PUMP & MOTOR (12V) | 1 | ||
| 45-790 | PUMP & MOTOR (24V) | 1 | ||
| 1 | 44-5155 | CAP - brush | 2 | |
| 2 | 44-5157 | BRUSH & SPRING - assembly | 2 | |
| 3 | 44-5158 | TUBE - brush | 2 | |
| 4 | 44-5159 | MOTOR - assembly (12V, incl 1 thru 3, 13 thru 19) | 1 | |
| 44-5160 | MOTOR - assembly (24V, incl 1 thru 3, 13 thru 19) | 1 | ||
| 5 | 11-4790 | SLINGER | 1 | |
| 6 | NSS | BODY | 1 | |
| 55-4427 | LOCKWASHER - pump | 2 | ||
| 55-4428 | NUT - pump | 1 | ||
| 7 | 33-1331 | SEAL | 1 | |
| 8 | 11-4792 | IMPELLER | 1 | |
| 9 | 33-1332 | GASKET | 1 | |
| 10 | 11-4793 | COVER | 1 | |
| 11 | 55-4429 | SCREW & WASHER | 8 | |
| 12 | 11-4794 | PLUG - drain | 2 | |
| 13 | 55-4424 | WASHER - spring | 1 | |
| 14 | 55-4425 | WASHER - thrust | A/R | |
| 15 | 44-5165 | STATOR (12V) | 1 | |
| 44-5166 | STATOR (24V) | 1 | ||
| 16 | 55-4426 | STUD - case | 2 | |
| 17 | 44-5161 | BEARING | 2 | |
| 18 | 44-5162 | ARMATURE (12V) | 1 | |
| 44-5162 | ARMATURE (24V) | 1 | ||
| 19 | 44-5164 | COVER | 1 | |
| 55-4423 | ADAPTER (7/8 sld, 3/4 mpt) | 2 | ||
| 99-4828 | TUBE - adapter | 1 | ||
| 44-3186 | RELAY (12VDC) | 1 | ||
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (24VDC) | 1 | ||
| 44-7217 | BREAKER - circuit (24V) | 1 | ||
| 99-9791 | BRACKET - water pump | 1 | ||
| 55-5211 | U-BOLT | 1 | ||
| 55-2001 | FLATWASHER - U-bolt | 2 | ||
| 55-4560 | NUT - u-bolt | 2 |
