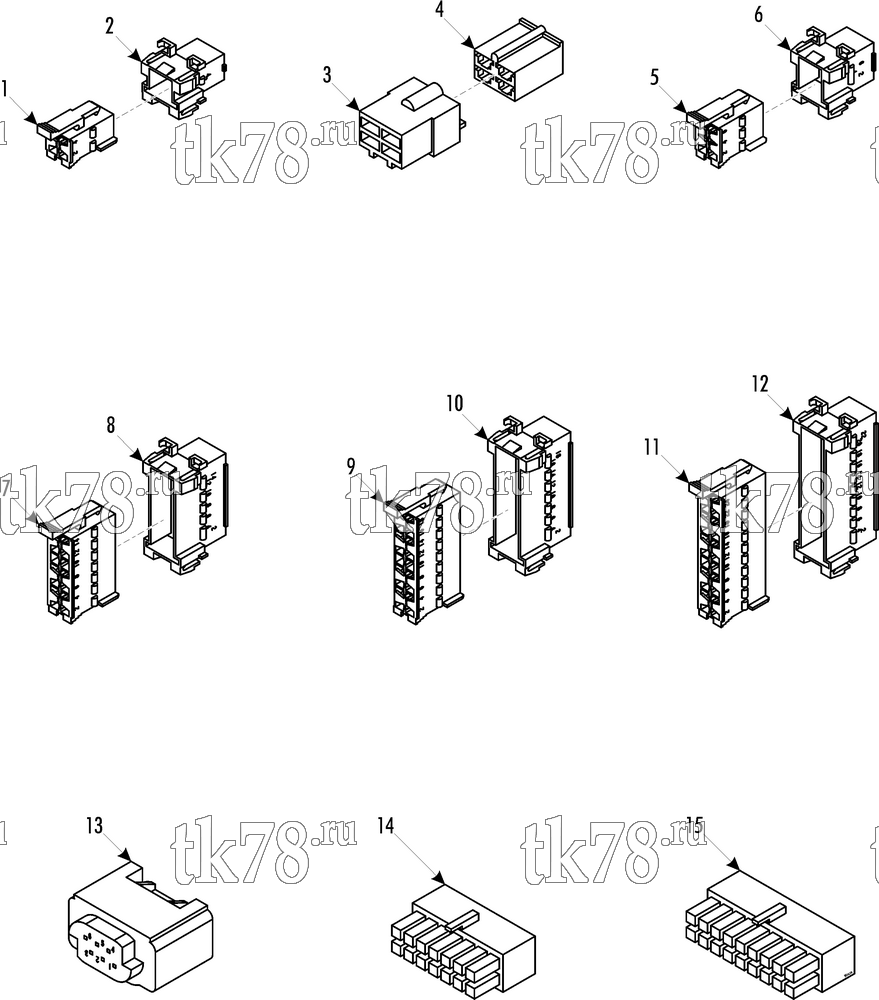

Установкa Thermo King Modular Front Box II (901306) схема CONNECTORS - FRONTBOX – 245B2
Обновление от: 8/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2769 | CONNECTOR - female (2-pin) | 1 | |
| 2 | 41-4949 | CONNECTOR - male (2-pin) | 1 | |
| 3 | 44-5827 | CONNECTOR - male (4-pin) | 1 | |
| 4 | 44-5814 | CONNECTOR - female (4-pin) | 1 | |
| 5 | 41-2767 | CONNECTOR - female (6-pin) | 1 | |
| 6 | 41-4055 | CONNECTOR - male (6-pin) | 1 | |
| 7 | 41-5752 | CONNECTOR - female (14-pin) | 1 | |
| 8 | 41-5749 | CONNECTOR - male (14-pin) | 1 | |
| 9 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 10 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 11 | 41-3858 | CONNECTOR - female (22-pin) | 1 | |
| 12 | 41-2765 | CONNECTOR - male (22-pin) | 1 | |
| 13 | 41-3288 | CONNECTOR - (6-pin) | 1 | |
| 14 | 41-661 | CONNECTOR - (14-pin) | 1 | |
| 15 | 41-650 | CONNECTOR - (18-pin) | 1 |
