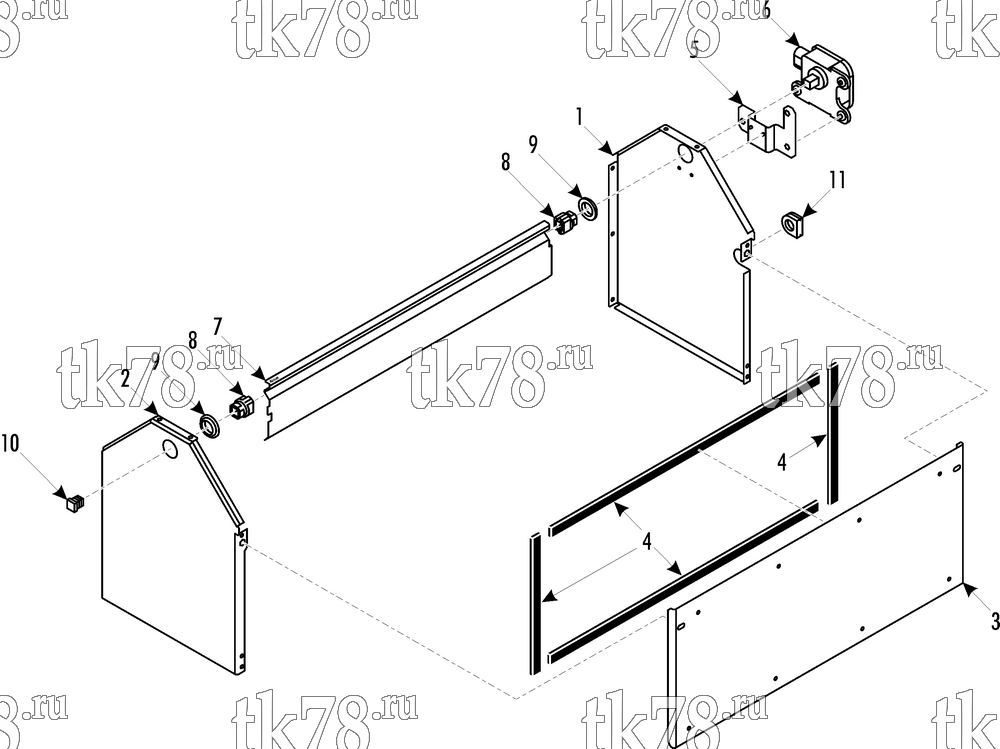

Установкa Thermo King Modular Front Box II (901306) схема AIR OUTLET MODULE - AIR DAMPER (008762, 008779) – 245A7
Обновление от: 8/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8050 | SIDEWALL | 1 | |
| 2 | 92-8051 | SIDEWALL | 1 | |
| 51-256 | RIVET - sidewall | A/R | ||
| 3 | 98-8398 | COVER - service | 1 | |
| 4 | 33-3931 | STRIP - polyester | A/R | |
| 51-258 | SCREW - cover | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 5 | 92-5227 | BRACKET - servomotor | 1 | |
| 6 | 41-3255 | SERVOMOTOR | 1 | |
| 55-9349 | SCREW - servomotor | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 7 | 92-5228 | FLAP | 1 | |
| 8 | 77-2746 | ADAPTER | 2 | |
| 9 | 92-5226 | BEARING | 2 | |
| 10 | 51-261 | PLUG | 1 | |
| 11 | 33-3669 | BUSHING - cable | 1 |
