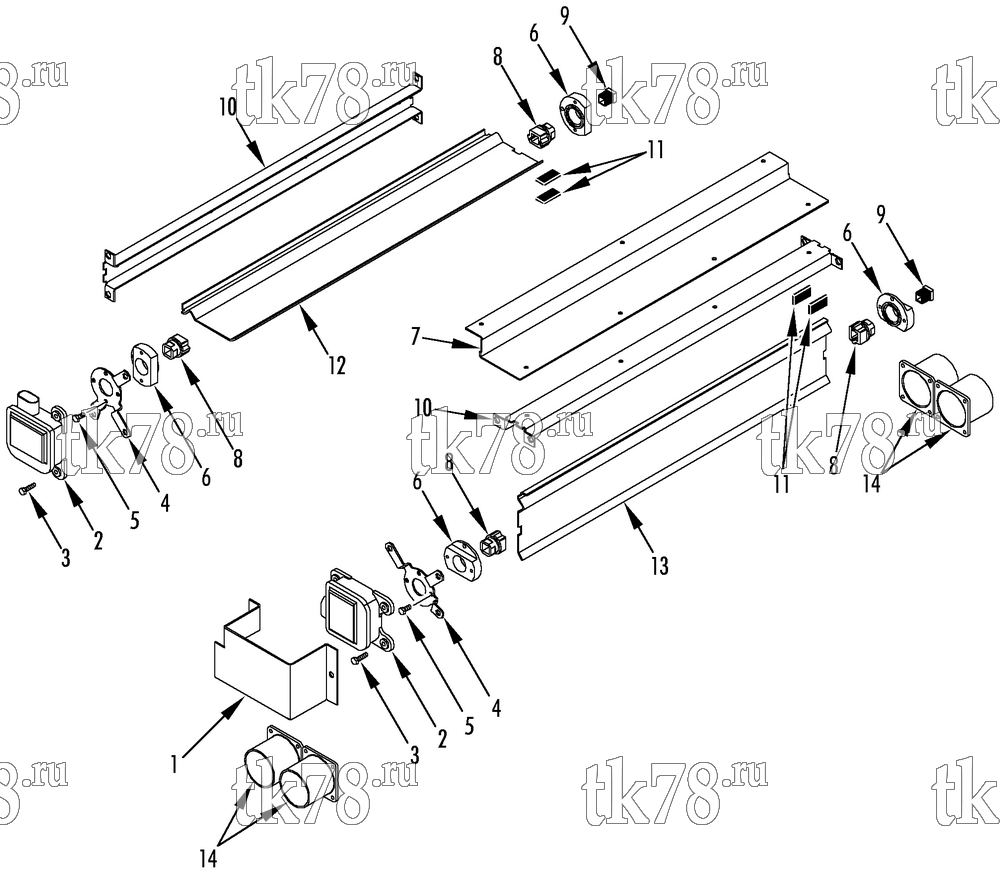

Установкa Thermo King Millenn Front Box схема DAMPER GROUP – 191E1
Обновление от: 2/24/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3500 | COVER - damper motor | 1 | |
| 2 | 41-3255 | SERVOMOTOR (24V) | 2 | |
| 3 | 55-9349 | SCREW - servomotor | 6 | |
| 55-7697 | FLATWASHER | 6 | ||
| 4 | 92-2543 | BRACKET - motor | 2 | |
| 5 | 51-260 | SCREW - bracket | 4 | |
| 55-7697 | FLATWASHER | 4 | ||
| 6 | 92-2542 | CLUTCH | 4 | |
| 51-256 | RIVET - clutch | 2 | ||
| 7 | 92-3495 | CONNECTION - flap | 1 | |
| 8 | 77-2746 | BEARING | 4 | |
| 9 | 51-261 | PLUG - plastic | 2 | |
| 10 | 92-2536 | PANEL - flap stop | 1 | |
| 55-8375 | NUT - captive | 4 | ||
| 11 | 33-3670 | STRIP - sealing | 2 | |
| 12 | 92-3555 | FLAP | 1 | |
| 55-7866 | NUT - captive | 6 | ||
| 13 | 92-2545 | FLAP | 1 | |
| 55-3390 | RIVET - panel | 6 | ||
| 14 | 92-3504 | OUTLET - air | 4 |
