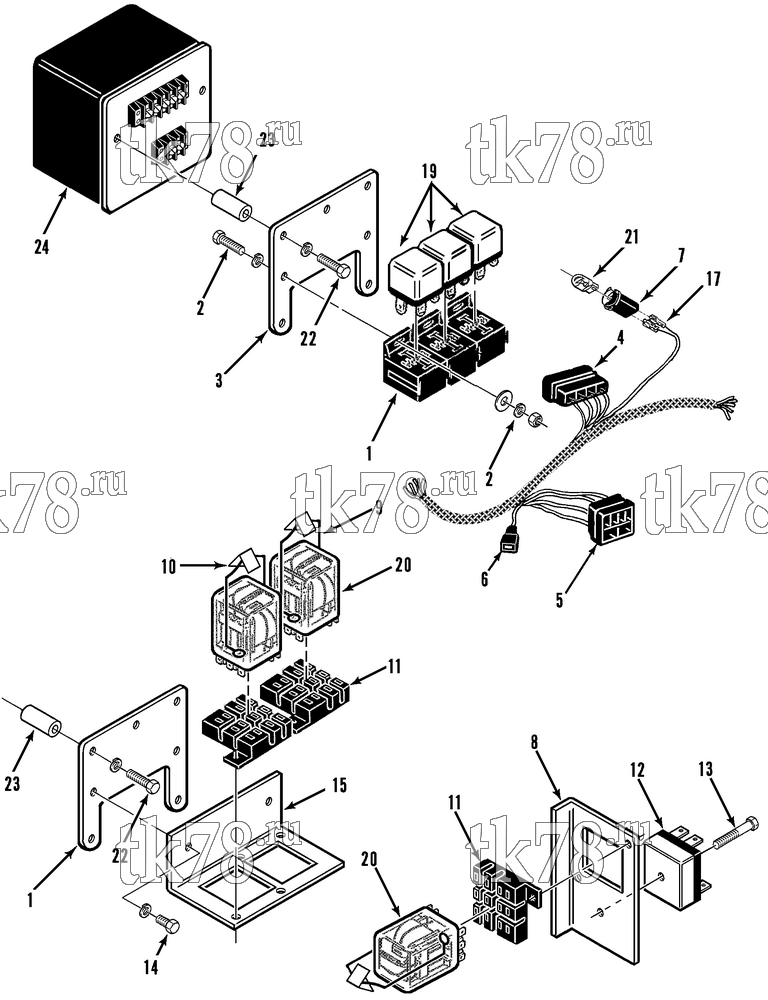

Установкa Thermo King McTRL-I 30, 50 & 50 TC EMEIA схема HARNESS ASSEMBLY – 92G12
Обновление от: 8/3/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| A | 44-7095 | HARNESS (SB-II 50, w/o FS, ID No. 2D71895G01 used on B/M 048246) | 1 | |
| A | 44-8958 | HARNESS (SB-III 50, w/o FS, ID No. 5D33934G01 used on B/M 048306) | 1 | |
| B | 44-7106 | HARNESS (SB-II 50, w/ FS, ID No. 2D71899G02 B/M 048248, 048252) | 1 | |
| C | 44-8404 | HARNESS (SB-II 30, w/o FS, ID No. 3D98718G01 B/M 048247) | 1 | |
| D | 44-8624 | HARNESS (SB-II 30, w/ FS, ID No. 8478C56G01 B/M 048249 & 048253) | 1 | |
| 1 | 44-5537 | SOCKET - relay (used on A, C, D) | A/R | |
| 2 | 55-5975 | SCREW - socket (used on A, C, D) | A/R | |
| 55-2001 | FLATWASHER | A/R | ||
| 55-2964 | LOCKWASHER | A/R | ||
| 55-2965 | NUT | A/R | ||
| 3 | 99-9311 | BRACKET - relay | 1 | |
| 4 | 44-5718 | CONNECTOR (8-pin) | 1 | |
| 5 | 44-5600 | CONNECTOR (6-pin) | 1 | |
| 6 | 44-6451 | CONNECTOR (1-pin) | 1 | |
| 7 | 44-6462 | SOCKET - light (used on B, D) | 1 | |
| 8 | 99-8263 | BRACKET - relay (used on B) | 1 | |
| 9 | 99-2027 | SPRING - holddown (used on B) | 3 | |
| 55-2270 | RIVET - spring & socket | 6 | ||
| 10 | 55-2771 | CLAMP - relay (used on B) | 3 | |
| 11 | 44-3184 | SOCKET - relay (used on B) | 3 | |
| 12 | 44-5567 | TIMER - solid state (used on B) | 1 | |
| 13 | 55-5279 | SCREW - timer (used on B) | 1 | |
| 55-3474 | FLATWASHER | 1 | ||
| 55-3557 | LOCKWASHER | 1 | ||
| 55-2930 | NUT | 1 | ||
| 14 | 55-3443 | SCREW - relay bracket (used on B) | 2 | |
| 15 | 99-9430 | BRACKET - relay (used on B) | 1 | |
| 16 | 44-5763 | DIODE - silicone (used on B) | 2 | |
| 17 | 44-7054 | TERMINAL - special | 1 | |
| 18 | Not Used | |||
| 19 | 44-9111 | RELAY - mini | A/R | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 20 | 44-3186 | RELAY - plug-in | A/R | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 21 | 44-3711 | BULB - light | 1 | |
| 22 | 55-5757 | SCREW - bracket to thermostat | 4 | |
| 55-2202 | LOCKWASHER | 4 | ||
| 23 | 99-2223 | SPACER - bracket | 4 | |
| 24 | 45-1565 | THERMOSTAT - TG IV (A) | 1 |
