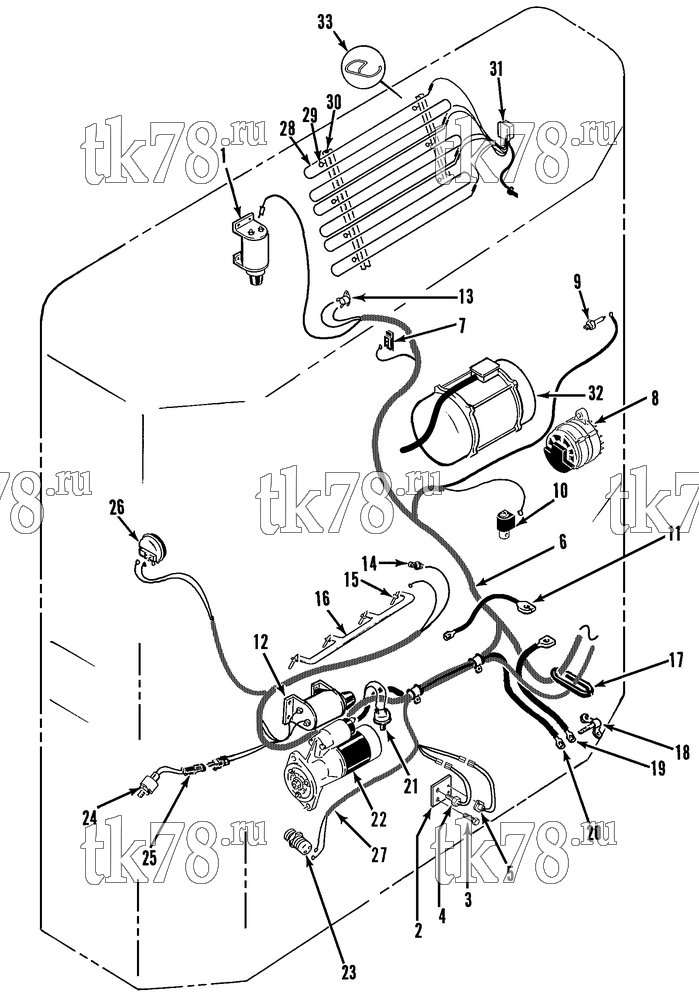

Установкa Thermo King McTRL-I 30, 50 & 30 TC схема ELECTRICAL COMPONENTS (50s) – 90G3
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - defrost | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 2 | 91-938 | PLATE - switch | 1 | |
| 3 | 55-5005 | SCREW - plate | 1 | |
| 55-2038 | FLATWASHER | 1 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 4 | 44-6019 | BOLT - thermistor | 1 | |
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 5 | 44-6018 | THERMOSTAT - block sensor | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-3134 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 6 | 44-6745 | HARNESS - main | 1 | |
| 7 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 8 | 41-2195 | ALTERNATOR (37 amp, model EA, see 88B14) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 9 | 44-6534 | SENSOR - radiator | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 10 | 66-5316 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 11 | 44-6738 | CABLE - battery (24 in, negative) | 1 | |
| 12 | 44-6544 | SOLENOID - engine | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 13 | 44-7892 | SWITCH - high temperature | 1 | |
| 14 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 15 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 16 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 17 | 33-628 | GROMMET - control box | 1 | |
| 18 | 44-7997 | TERMINAL - battery (see 84D13) | 1 | |
| 19 | 44-6698 | CABLE - battery (19 in lg) | 1 | |
| 20 | 44-6741 | CABLE - starter | 1 | |
| 21 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 22 | 45-2325 | STARTER | 1 | |
| 23 | 44-6016 | SENSOR - rpm | 1 | |
|
10-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 8 900 ₽ |
|
| PP-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 4 310 ₽ |
|
|
| 44-7620 | BOOT - rpm sensor | 1 | ||
| 24 | 44-5508 | SWITCH - hpco (R502) | 1 | |
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 44-5305 | SWITCH - hpco (R12) | 1 | ||
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 25 | Not Used | |||
| 26 | 44-6545 | SWITCH - air pressure (see 86A5) | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 27 | 44-6493 | HARNESS (Cycle Sentry) | 1 | |
| 28 | 45-1262 | HEATER - evaporator | 3 | |
| 29 | 99-2421 | HOOK - heater hanger (before 8/90) | 12 | |
| 99-1736 | SPRING - hook | 12 | ||
| 55-2001 | FLATWASHER | 24 | ||
| 30 | 99-7754 | CHANNEL - heater (before 8/90) | 3 | |
| 31 | 99-7646 | BOX - junction | 1 | |
| 44-4530 | COVER - junction box | 1 | ||
| 44-4272 | GRIP - cable | 2 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 55-2995 | SCREW - box | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 32 | 104-632 | MOTOR (14hp) | 1 | |
| 33 | 91-240 | RETAINER - heater (8/90 & after) | 42 |
