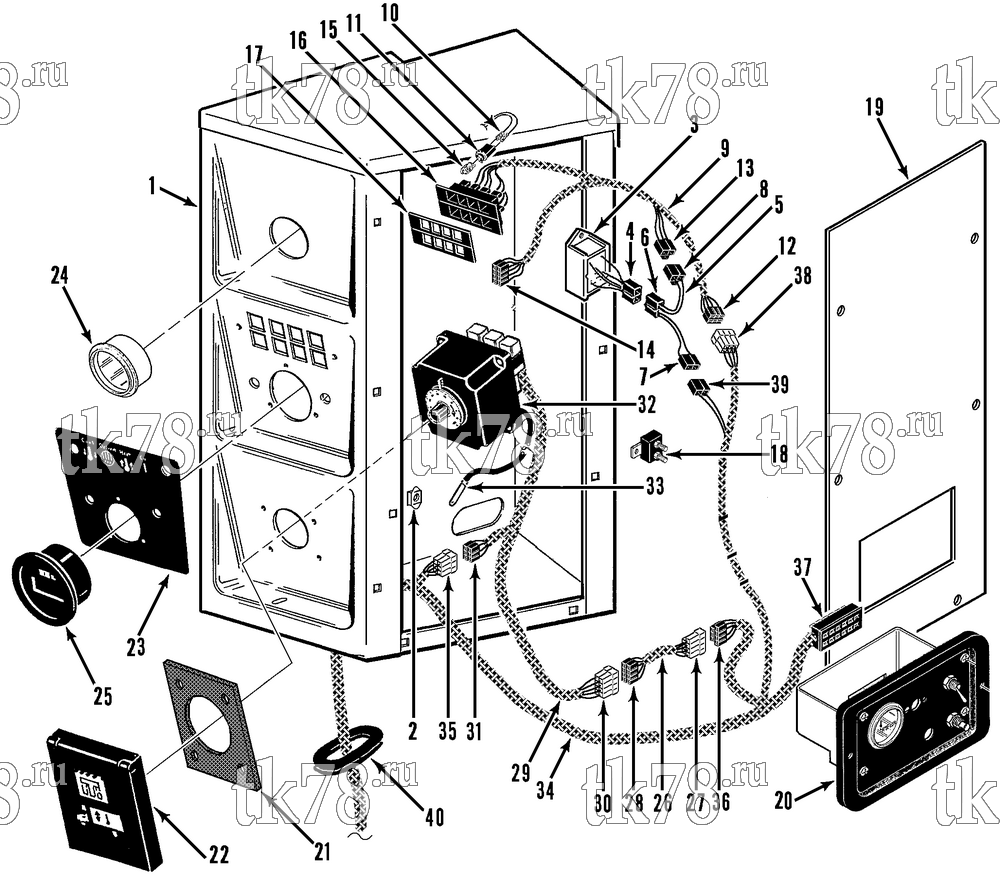

Установкa Thermo King McTRL-I 30 & 30 TC схема CONTROL BOX ASSEMBLY (McTRL 30) – 93G3
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3743 | BOX - control | 1 | |
| 2 | 55-3493 | NUT - captive | 6 | |
| 3 | 44-8017 | DETECTOR - liquid level | 1 | |
| 4 | 44-5827 | CONNECTOR (4-pin) | 1 | |
| 5 | 44-6535 | HARNESS - coolant level indicator | 1 | |
| 6 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 7 | 44-5620 | CONNECTOR (2-pin) | 1 | |
| 8 | 44-6248 | CONNECTOR (3-pin) | 1 | |
| 9 | 44-6916 | HARNESS - indicator light | 1 | |
| 10 | 44-7054 | TERMINAL - special | 10 | |
| 11 | 44-6462 | SOCKET - light | 5 | |
| 12 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 13 | 44-6247 | CONNECTOR (2-pin) | 1 | |
| 14 | 44-5719 | CONNECTOR - remote light box (8-pin) | 1 | |
| 15 | 44-3711 | BULB | 5 | |
| 16 | 44-6489 | HOUSING - lamp | 1 | |
| 17 | 33-1606 | GASKET - lamp housing | 1 | |
| 55-2995 | SCREW - housing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 18 | 44-5808 | BREAKER - circuit (throttle solenoid) | 1 | |
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 19 | 98-2754 | PANEL - control box | 1 | |
| 99-4976 | STRIP - sealing | A/R | ||
| 55-3623 | SCREW | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 20 | 45-1024 | PANEL - switch (w/ defrost timer, see 51B9) | 1 | |
| 55-3085 | NUT - speed | 2 | ||
| 21 | 33-1373 | GASKET | 1 | |
| 22 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 23 | 99-8014 | NAMEPLATE - gauge panel | 1 | |
| 24 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 44-7314 | HOURMETER (digital) | 1 | ||
| 25 | 44-8045 | THERMOMETER - digital | 1 | |
| 44-7090 | HARNESS - thermometer | 1 | ||
| 44-5234 | SENSOR - thermometer | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-2997 | SCREW - thermo | 3 | ||
| 55-3014 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 26 | 44-7869 | HARNESS - jumper | 1 | |
| 27 | 44-5140 | CONNECTOR (7-pin) | 1 | |
| 28 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 29 | 44-8441 | HARNESS - thermostat (see 90G4) | 1 | |
| 30 | 44-5718 | CONNECTOR (8-pin) | 1 | |
| 31 | 44-5600 | CONNECTOR (6-pin) | 1 | |
| 32 | 45-1565 | THERMOSTAT - TG IV (see 90G4) | 1 | |
| 33 | 44-5234 | SENSOR - thermostat | 1 | |
|
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-5358 | SCREW - thermo | 4 | ||
| 34 | 44-6735 | HARNESS - main | 1 | |
| 35 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 36 | 44-5140 | CONNECTOR (7-pin) | 1 | |
| 37 | 44-5214 | SOCKET (12-pin) | 1 | |
| 44-5220 | COVER | 1 | ||
| 38 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 39 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 40 | 33-628 | GROMMET | 1 |
