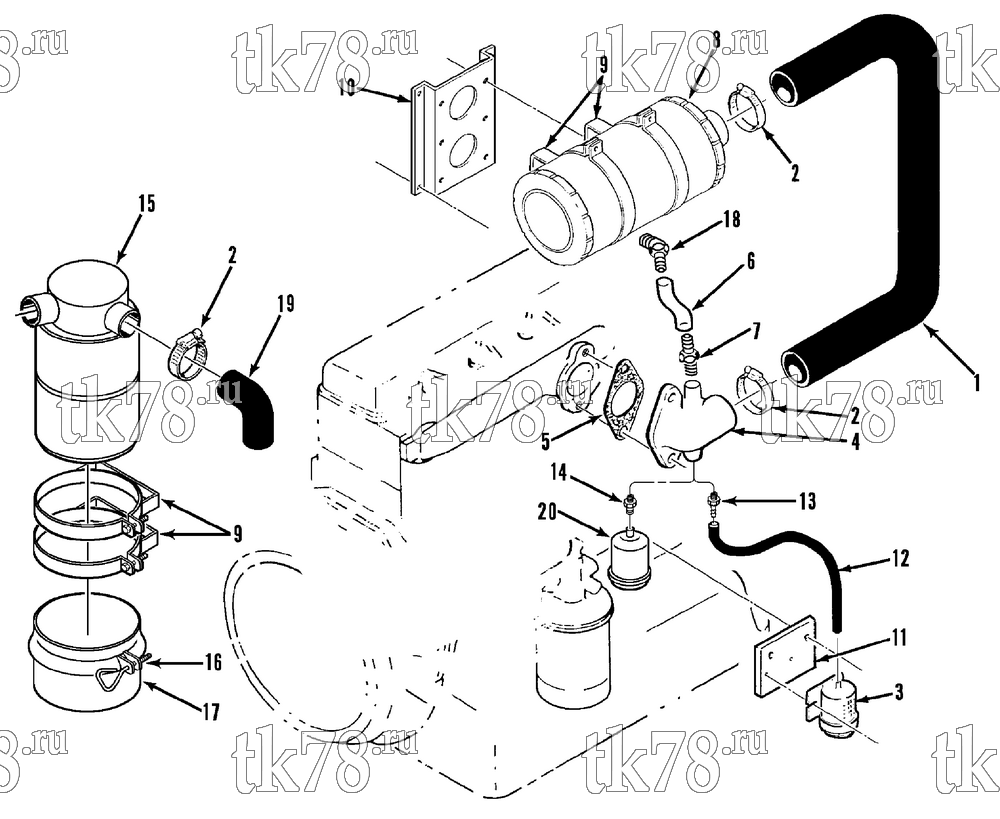

Установкa Thermo King McTRL-I 30 & 30 TC схема AIR CLEANER GROUP (SB-II 30 di 2.2) – 86A7
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5934 | HOSE - dry air cleaner | 1 | |
| 11-7763 | HOSE - oil bath air cleaner | 1 | ||
| 2 | 55-4979 | CLAMP - hose (2-1/2 in) | 1 | |
| 55-1636 | CLAMP - hose (3 in) | 1 | ||
| 3 | 11-9262 | INDICATOR - air restrictor (before 2/93) | 1 | |
| 4 | 11-6222 | ELBOW - air intake | 1 | |
| 55-5579 | SCREW - elbow | 2 | ||
| 55-5411 | LOCKWASHER | 2 | ||
| 55-4625 | FLATWASHER | 2 | ||
| 5 | 33-1664 | GASKET - elbow | 1 | |
| 6 | 11-7659 | HOSE - breather | 1 | |
| 55-2332 | BANDWRAP | 2 | ||
| 7 | 55-4747 | CONNECTOR - breather hose (straight) | 1 | |
| 8 | 11-7400 | FILTER - air cleaner (dry) | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 9 | 11-5562 | CLAMP - air cleaner (dry) | 2 | |
| 11-3326 | CLAMP - oil bath air cleaner | 1 | ||
| 55-4967 | NUT | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-141 | SCREW - band | 4 | ||
| 10 | 99-8686 | BRACKET - dry air cleaner | 1 | |
| 91-736 | BRACKET - dry air cleaner (EMEIA) | 1 | ||
| 99-7992 | BRACKET - oil bath air cleaner | 1 | ||
| 55-4967 | NUT - bracket | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 11 | 91-938 | PLATE - air indicator | 1 | |
| 55-5695 | SCREW - plate | 1 | ||
| 55-5411 | LOCKWASHER | 1 | ||
| 12 | 11-6220 | HOSE - indicator | 1 | |
| 13 | 55-6132 | ADAPTER - hose | 1 | |
| 55-3364 | PLUG - pipe (oil bath) | 1 | ||
| 14 | 11-7828 | FITTING - air restriction indicator (2/93 & after) | 1 | |
| 15 | 11-3975 | CLEANER - air (oil bath) | 1 | |
| 16 | 11-3631 | CLAMP | 1 | |
| 17 | 11-2536 | CUP | 1 | |
| 11-2670 | CUP - inner | 1 | ||
| 33-828 | GASKET - cup | 1 | ||
| 18 | 55-1592 | CONNECTOR - hose (elbow) | 1 | |
| 19 | 11-4579 | ELBOW - oil bath air cleaner | 1 | |
| 20 | 11-7757 | INDICATOR - air restrictor (2/93 & after) | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
