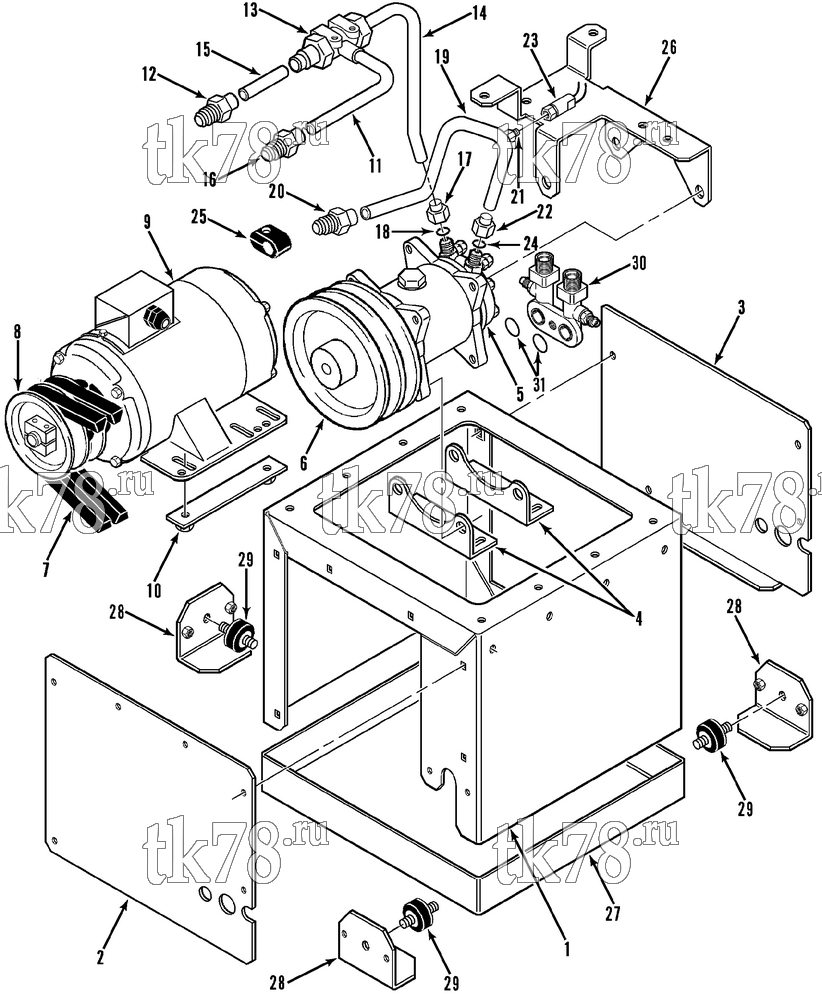

Установкa Thermo King MTJ схема POWER PACK (MTJ 20) – 115G10
Обновление от: 11/13/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5408 | FRAME - power pack | 1 | |
| 55-4415 | NUT - captive | 12 | ||
| 2 | 91-5412 | PANEL (left) | 1 | |
| 3 | 91-5413 | PANEL (right) | 1 | |
| 55-1587 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 4 | 91-4321 | SUPPORT - compressor | 2 | |
| 55-3048 | SCREW - support | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 5 | 102-839 | COMPRESSOR - TM15-XD (see note) | 1 | |
| 55-2961 | SCREW - compressor | 4 | ||
| 55-4955 | NUT | 4 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 6 | 77-2121 | PULLEY - compressor (60 cycle motor) | 1 | |
| 77-1889 | PULLEY - compressor (50 cycle motor) | 1 | ||
| 70-118 | KIT - hardware (pulley) | 1 | ||
| 7 | 78-338 | BELT - motor to compressor | 2 | |
| 8 | 77-2201 | PULLEY - motor | 1 | |
| 55-3565 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 9 | 104-566 | MOTOR - compressor drive | 1 | |
| 55-6141 | CONNECTOR - harness | 1 | ||
| 55-2635 | NUT | 1 | ||
| 55-2683 | SCREW - motor | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 10 | 91-1090 | NUTSTRIP - motor | 2 | |
| 11 | 66-7194 | TUBE - check valve to adapter | 1 | |
| 12 | 55-3213 | ADAPTER - discharge | 2 | |
| 33-566 | O-RING - adapter (1/2) | 2 | ||
| 13 | 66-5020 | VALVE - check (see 87C12) | 1 | |
| 55-4811 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 66-7195 | TUBE - compressor to check valve | 1 | |
| 15 | 66-7196 | TUBE - adapter to check valve | 1 | |
| 16 | 55-1610 | ADAPTER (1/2) | 1 | |
| 17 | 66-7043 | FITTING - discharge | 1 | |
| 18 | 33-2350 | O-RING | 1 | |
| 19 | 66-7186 | TUBE - suction | 1 | |
| 20 | 55-1611 | ADAPTER - suction | 1 | |
| 21 | 66-874 | FITTING - flare | 1 | |
| 22 | 66-7042 | FITTING - suction | 1 | |
| 23 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - flare | 1 | ||
| 24 | 33-672 | O-RING - suction | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 25 | 91-758 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 26 | 91-5411 | BRACKET - check valve | 1 | |
| 55-2961 | SCREW - bracket | 3 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-4955 | NUT | 3 | ||
| 27 | 91-5410 | TRAY - compressor/motor | 1 | |
| 28 | 91-5409 | BRACKET - tray | 3 | |
| 55-2963 | SCREW - bracket | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 29 | 91-3908 | MOUNT - vibration | 3 | |
|
10-91-3908 | Подушка, Yanmar 374 / 395, KD/MD/RD/TD-II / MD/TS-Series | 2 370 ₽ |
|
| 55-2166 | NUT - mount | 6 | ||
| 55-2159 | LOCKWASHER | 6 | ||
| 55-5871 | WASHER - special | 6 | ||
| 30 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 31 | 33-2882 | O-RING | 2 |
