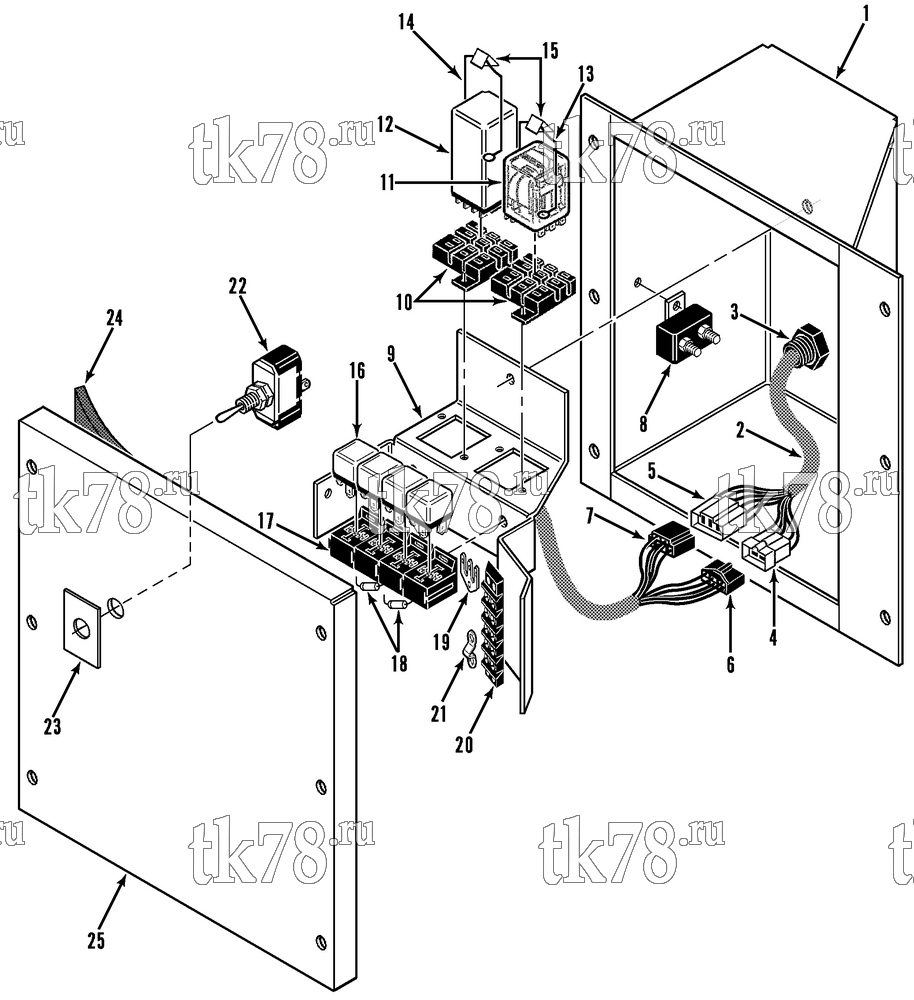

Установкa Thermo King MTJ схема CONTROL BOX ASSEMBLY (12 & 24V) – 115D10
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5369 | BOX - only | 1 | |
| 2 | 41-420 | HARNESS - main | 1 | |
| 3 | 55-5112 | CONNECTOR - grip | 1 | |
| 4 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 5 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 44-5630 | TERMINAL | 12 | ||
| 6 | 44-4925 | CONNECTOR (6-pin) | 1 | |
| 7 | 44-5600 | CONNECTOR (6-pin) | 1 | |
| 8 | 44-7993 | BREAKER - circuit (24V, 25 amp) | 1 | |
| 44-7996 | BREAKER - circuit (12V, 50 amp) | 1 | ||
|
30-44-7996 | Предохранитель 50А | 1 140 ₽ |
|
| 55-3015 | SCREW - breaker | 1 | ||
| 55-2243 | WASHER - sealing | 1 | ||
| 55-6722 | INSERT - threaded | 1 | ||
| 9 | 91-5370 | BRACKET - relay | 1 | |
| 55-3015 | SCREW - breaker | 1 | ||
| 55-2243 | WASHER - sealing | 1 | ||
| 55-6722 | INSERT - threaded | 1 | ||
| 10 | 44-3184 | SOCKET - relay | 2 | |
| 11 | 44-3186 | RELAY - defrost (12V) | 1 | |
|
10-44-3186 | Реле разморозки | 4 070 ₽ |
|
| 44-4025 | RELAY - defrost (24V) | 1 | ||
| 12 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 13 | 99-2027 | SPRING - holddown | 1 | |
| 14 | 99-8475 | HOLDDOWN - spring | 1 | |
| 55-2270 | RIVET - spring | 4 | ||
| 15 | 55-2771 | CLAMP - spring | 2 | |
| 16 | 44-9391 | RELAY - mini (12V) | 4 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - mini (24V) | 4 | ||
| 17 | 44-5537 | SOCKET - relay | 4 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 18 | 44-5763 | DIODE | 2 | |
| 19 | 44-7522 | JUMPER - defrost | 1 | |
| 20 | 44-2558 | BOARD - terminal | 1 | |
| 55-6390 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-7678 | INSERT - threaded | 2 | ||
| 21 | 44-3579 | STRIP - jumper | 1 | |
| 22 | 44-1196 | SWITCH - on/off | 1 | |
| 23 | 99-7642 | NAMEPLATE - On/Off | 1 | |
| 24 | 33-2485 | GASKET - cover | 1 | |
| 25 | 91-5371 | COVER - control box | 1 | |
| 55-3000 | SCREW - cover (#10) | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2977 | SCREW - cover (1/4) | 2 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1801 | NUT | 2 |
