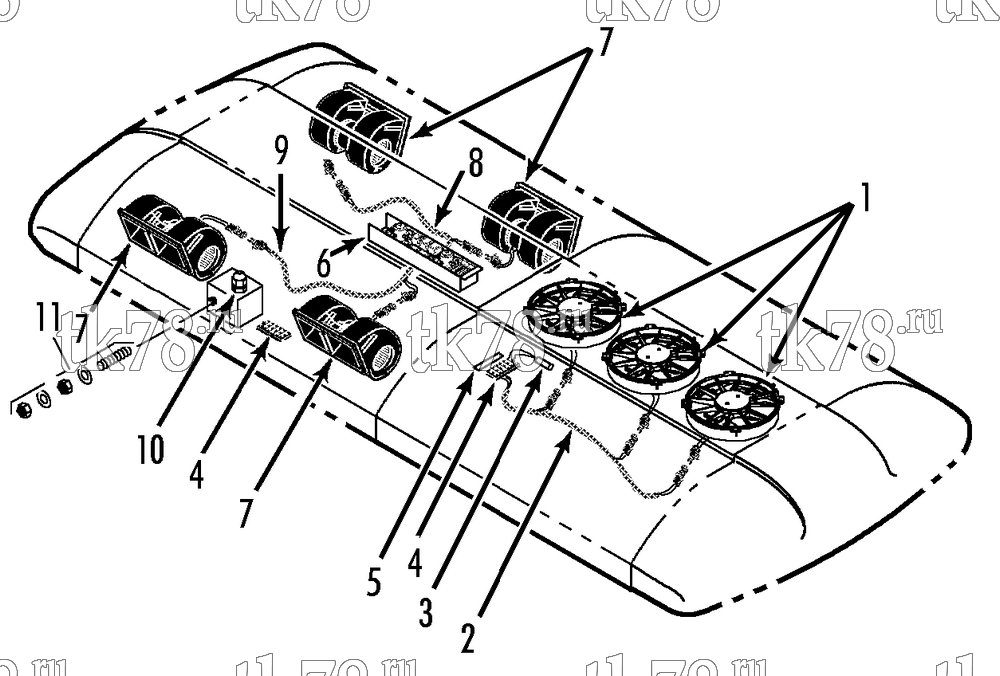

Установкa Thermo King MRTN M1 схема ELECTRICAL COMPONENTS – 154C8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1469 | FAN & MOTOR - condenser (see 163F9) | 3 | |
| 2 | 41-3319 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 3 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 4 | 44-6255 | BOARD - terminal (11 terminal, 20 amp) | 3 | |
| 41-2372 | BOARD - terminal (4 terminal, 50 amp) | 2 | ||
| 55-3511 | SCREW - board (8 x 3/4 in) | 4 | ||
| 55-4474 | SCREW - board (8 x 7/8 in) | 2 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-8482 | INSERT | 6 | ||
| 5 | 91-9816 | MARKSTRIP - condenser | 1 | |
| 91-9815 | MARKSTRIP (36C, 360, 31B) | 1 | ||
| 91-9817 | MARKSTRIP (cool/heat/vent) | 1 | ||
| 6 | NSS | PANEL - control (see 154C14) | 1 | |
| 7 | 78-1175 | BLOWER - evaporator (complete, see 154C10) | 4 | |
| 8 | 41-3320 | HARNESS - evaporator motors (1 & 2, for connectors see 115D14) | 1 | |
| 9 | 41-3321 | HARNESS - evaporator motors (3 & 4, for connectors see 115D14) | 1 | |
| 10 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2242 | LOCKNUT | 1 | ||
| 11 | 55-3167 | STUD - terminal | 2 | |
| 55-671 | NUT - terminal stud | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3672 | LOCKWASHER | 2 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 |
